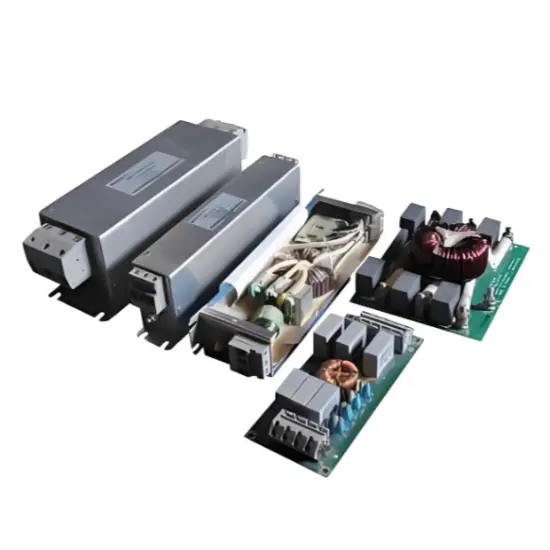

Three phase RFI Input and RFO Output Special Filter for Inverter

Add us on Google
  • Three phase RFI Input and RFO Output Special Filter for Inverter

Key attributes

Brand HK Electrical
Series RF1
Rated Voltage 440/250 VAC
Operating Frequency 50Hz
Rated Current 10A ~ 2500A
Compliance Standards IEC/EN 60939, UL1283
Description

Product Introduction

  • Reducing the conducted emission from inverter to power network.

  • Exceptional attenuation performance from 150kHz~30MHz.

  • Terminal series filter with most compact and slim design.

  • Improve the reliability of the whole system.

  • N99 uses copper bar connectors, while others are terminals.

  • Terminals for copper and suffix P series of filter for high leakage currents, suitable for testing use, but does not apply to leakage protector occasions.

  • Copper bar and filter the suffix P Series in non symmetrical and capacitance tolerance caused maximum leakage current is 33mA(400VAC/50Hz).

Typical circuit diagram of input filter

Three-phase RFI Input & RFO Output Special Filter for Inverter

Typical circuit diagram of output filter

Three-phase RFI Input & RFO Output Special Filter for Inverter

Technical Specifications

Item Specification
Rated Voltage 440/250 VAC
Operating Frequency 50Hz
Rated Current 10A ~ 2500A
High Potential Test Voltage P-E 2100VDC/2sec



P-P 2100VDC/2sec
Temperature Range -25℃ ~ +100℃ (25/100/21)
Compliance Standards IEC/EN 60939, UL1283
Attenuation Frequency Range 150kHz ~ 30MHz
Maximum Leakage Current (P Series) 33mA (400VAC/50Hz)

Typical Applications

  • Three-phase variable speed motor drives, servo drives, inverter and converters

  • Energy conversion devices, such as machines and automatic equipment

  • HVAC equipment, elevators, power suppliers, UPS, injection molding machine and further three-phase applies

  • Wind energy, solar energy and other new energy inverter system

Filter Selection Table

Drive power rating Rated voltage Input filter Input filter (P) Output filter Rated current Connector code
5.5kW 440VAC RFI4C10N6 RFI4C10N6P RFO4C10N6 10A -N6
7.5kW 440VAC RFI4C20N6 RFI4C20N6P RFO4C20N6 20A -N6
15kW 440VAC RFI4C30N10 RFI4C30N10P RFO4C30N10 30A -N10
18.5kW 440VAC RFI4C40N10 RFI4C40N10P RFO4C40N10 40A -N10
22kW 440VAC RFI4C50N16 RFI4C50N16P RFO4C50N16 50A -N16
30kW 440VAC RFI4C65N16 RFI4C65N16P RFO4C65N16 65A -N16
37kW 440VAC RFI4C80N35 RFI4C80N35P RFO4C80N35 80A -N35
45kW 440VAC RFI4C100N35 RFI4C100N35P RFO4C100N35 100A -N35
55kW 440VAC RFI4C130N50 RFI4C130N50P RFO4C130N50 130A -N50
90kW 440VAC RFI4C180N95 RFI4C180N95P RFO4C180N95 180A -N95
75kW 440VAC RFI4C150N99 RFO4C150N99 150A -
110kW 440VAC RFI4C200N99 RFO4C200N99 200A -
132kW 440VAC RFI4C250N99 RFO4C250N99 250A -
160kW 440VAC RFI4C320N99 RFO4C320N99 320A -
220kW 440VAC RFI4C400N99 RFO4C400N99 400A -
315kW 440VAC RFI4C600N99 RFO4C600N99 600A -
400kW 440VAC RFI4C800N99 RFO4C800N99 800A -
560kW 440VAC RFI4C1000N99 RFO4C1000N99 1000A -
900kW 440VAC RFI4C1600N99 RFO4C1600N99 1600A -
1320kW 440VAC RFI4C2500N99 RFO4C2500N99 2500A -

Input Filter Attenuation

Three-phase RFI Input & RFO Output Special Filter for Inverter

A:50N/50Ω sym, B:50N/50Ω asym, C:0.1Ω/100Ω sym D:100N/0.1Ω sym

Filter Input/output Connector Cross Sections

Connector code Flex wire/mm² AWG number Recommended torque/N.m
-N6 0.5~6 AWG6-24 1.36
-N10 1~16 AWG8-26 2.71
-N16 10~35 AWG2-8 1.36
-N35 25~95 AWG6-1/0 19.2
-N50 16~50 AWG4-20 4.41
-N95 16~50 AWG4-4/0 4.41



 Product Size

Three-phase RFI Input & RFO Output Special Filter for Inverter

Current A B C D E F G H M N U V W X Y Z
10A 168 180 15.5 75 20 40 4.5 M5 - - - - - - - -
20A 220 235 15.5 75 25 45 5.5 M5 - - - - - - - -
30A~40A 240 255 35 85 30 50 5.5 M5 - - - - - - - -
50A~65A 220 235 35 90 60 85 5.5 M6 - - - - - - - -
80A~100A 240 255 38.5 140 60 85 6.5 M8 - - - - - - - -
130A 240 255 43 150 65 95 6.5 M8 - - - - - - - -
180A 350 365 50 170 102 120 6.5 M8 - - - - - - - -
150A~250A 240 275 40 100 165 205 11.5 M10 - - 120 3 20 10 51.5 9
320A - - - - - - - M10 - - 120 4 25 12.5 51.5 11
400A - - - - - - - M10 - - 120 6 25 12.5 51.5 11
600A - - - - - - - M10 - - 120 8 25 12.5 51.5 11
800A 310 345 50 130 155 205 11.5 M10 - - 120 6 40 20 68.5 13.5
1000A - - - - - - - M10 - - 120 8 40 20 68.5 13.5
1600A 400 340 93 160 275 300 12.5 M12 26 26 120 10 60 17 68 14
2500A 600 500 98 200 330 370 14.5 M12 35 35 200 15 70 20 90 14
