| العلامة التجارية | HK Electrical |
| سلسلة | RF1 |
| الجهد المقنن | 440/250 VAC |
| تردد التشغيل | 50Hz |
| التيار المقنن | 10A ~ 2500A |
| معايير الامتثال | IEC/EN 60939, UL1283 |
| العنصر | المواصفات |
|---|---|
| الجهد المقنن | 440/250 فولت متناوب |
| تردد التشغيل | 50 هرتز |
| التيار المقنن | 10 أمبير ~ 2500 أمبير |
| جهد الاختبار العالي | P-E 2100 فولت مستمر/2 ثانية
|
| نطاق درجة الحرارة | -25℃ ~ +100℃ (25/100/21) |
| معايير الامتثال | IEC/EN 60939, UL1283 |

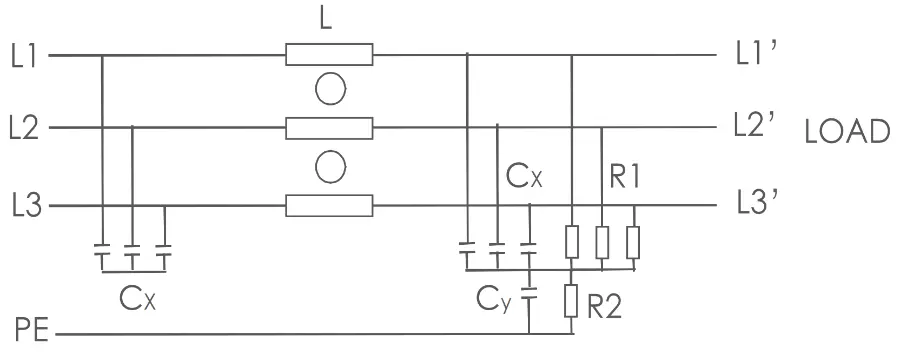

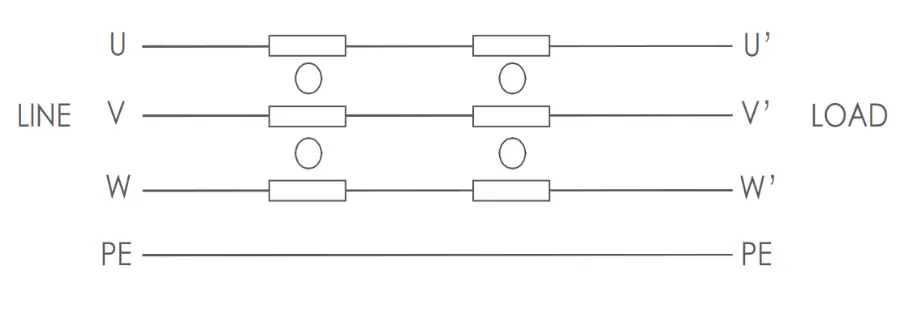

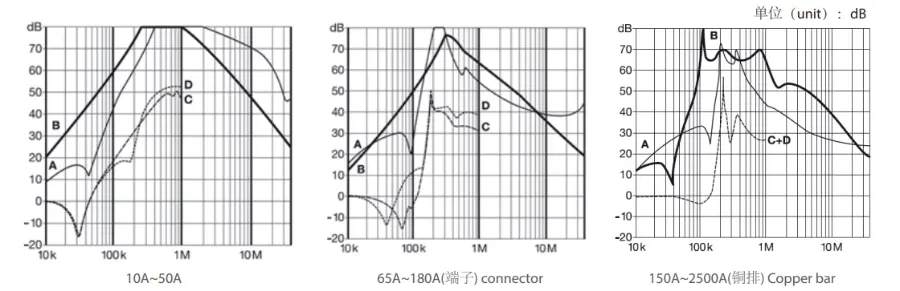

| نطاق التردد للتخفيف | 150 كيلوهرتز ~ 30 ميجاهرتز |
| أقصى تيار تسرب (سلسلة P) | 33 ميلي أمبير (400 فولت متناوب/50 هرتز) |
| Drive power rating | Rated voltage | Input filter | Input filter (P) | Output filter | Rated current | Connector code |
|---|---|---|---|---|---|---|
| 5.5kW | 440VAC | RFI4C10N6 | RFI4C10N6P | RFO4C10N6 | 10A | -N6 |
| 7.5kW | 440VAC | RFI4C20N6 | RFI4C20N6P | RFO4C20N6 | 20A | -N6 |
| 15kW | 440VAC | RFI4C30N10 | RFI4C30N10P | RFO4C30N10 | 30A | -N10 |
| 18.5kW | 440VAC | RFI4C40N10 | RFI4C40N10P | RFO4C40N10 | 40A | -N10 |
| 22kW | 440VAC | RFI4C50N16 | RFI4C50N16P | RFO4C50N16 | 50A | -N16 |
| 30kW | 440VAC | RFI4C65N16 | RFI4C65N16P | RFO4C65N16 | 65A | -N16 |
| 37kW | 440VAC | RFI4C80N35 | RFI4C80N35P | RFO4C80N35 | 80A | -N35 |
| 45kW | 440VAC | RFI4C100N35 | RFI4C100N35P | RFO4C100N35 | 100A | -N35 |
| 55kW | 440VAC | RFI4C130N50 | RFI4C130N50P | RFO4C130N50 | 130A | -N50 |
| 90kW | 440VAC | RFI4C180N95 | RFI4C180N95P | RFO4C180N95 | 180A | -N95 |
| 75kW | 440VAC | RFI4C150N99 | RFO4C150N99 | 150A | - | |
| 110kW | 440VAC | RFI4C200N99 | RFO4C200N99 | 200A | - | |
| 132kW | 440VAC | RFI4C250N99 | RFO4C250N99 | 250A | - | |
| 160kW | 440VAC | RFI4C320N99 | RFO4C320N99 | 320A | - | |
| 220kW | 440VAC | RFI4C400N99 | RFO4C400N99 | 400A | - | |
| 315kW | 440VAC | RFI4C600N99 | RFO4C600N99 | 600A | - | |
| 400kW | 440VAC | RFI4C800N99 | RFO4C800N99 | 800A | - | |
| 560kW | 440VAC | RFI4C1000N99 | RFO4C1000N99 | 1000A | - | |
| 900kW | 440VAC | RFI4C1600N99 | RFO4C1600N99 | 1600A | - | |
| 1320kW | 440VAC | RFI4C2500N99 | RFO4C2500N99 | 2500A | - | |
| رمز الموصل | سلك مرن/مم² | رقم AWG | عزم الدوران الموصى به/ن.م |
|---|---|---|---|
| -N6 | 0.5~6 | AWG6-24 | 1.36 |
| -N10 | 1~16 | AWG8-26 | 2.71 |
| -N16 | 10~35 | AWG2-8 | 1.36 |
| -N35 | 25~95 | AWG6-1/0 | 19.2 |
| -N50 | 16~50 | AWG4-20 | 4.41 |
| -N95 | 16~50 | AWG4-4/0 | 4.41 |

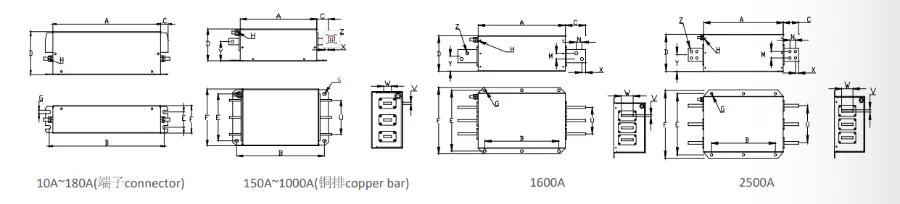

| Current | A | B | C | D | E | F | G | H | M | N | U | V | W | X | Y | Z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10A | 168 | 180 | 15.5 | 75 | 20 | 40 | 4.5 | M5 | - | - | - | - | - | - | - | - |
| 20A | 220 | 235 | 15.5 | 75 | 25 | 45 | 5.5 | M5 | - | - | - | - | - | - | - | - |
| 30A~40A | 240 | 255 | 35 | 85 | 30 | 50 | 5.5 | M5 | - | - | - | - | - | - | - | - |
| 50A~65A | 220 | 235 | 35 | 90 | 60 | 85 | 5.5 | M6 | - | - | - | - | - | - | - | - |
| 80A~100A | 240 | 255 | 38.5 | 140 | 60 | 85 | 6.5 | M8 | - | - | - | - | - | - | - | - |
| 130A | 240 | 255 | 43 | 150 | 65 | 95 | 6.5 | M8 | - | - | - | - | - | - | - | - |
| 180A | 350 | 365 | 50 | 170 | 102 | 120 | 6.5 | M8 | - | - | - | - | - | - | - | - |
| 150A~250A | 240 | 275 | 40 | 100 | 165 | 205 | 11.5 | M10 | - | - | 120 | 3 | 20 | 10 | 51.5 | 9 |
| 320A | - | - | - | - | - | - | - | M10 | - | - | 120 | 4 | 25 | 12.5 | 51.5 | 11 |
| 400A | - | - | - | - | - | - | - | M10 | - | - | 120 | 6 | 25 | 12.5 | 51.5 | 11 |
| 600A | - | - | - | - | - | - | - | M10 | - | - | 120 | 8 | 25 | 12.5 | 51.5 | 11 |
| 800A | 310 | 345 | 50 | 130 | 155 | 205 | 11.5 | M10 | - | - | 120 | 6 | 40 | 20 | 68.5 | 13.5 |
| 1000A | - | - | - | - | - | - | - | M10 | - | - | 120 | 8 | 40 | 20 | 68.5 | 13.5 |
| 1600A | 400 | 340 | 93 | 160 | 275 | 300 | 12.5 | M12 | 26 | 26 | 120 | 10 | 60 | 17 | 68 | 14 |
| 2500A | 600 | 500 | 98 | 200 | 330 | 370 | 14.5 | M12 | 35 | 35 | 200 | 15 | 70 | 20 | 90 | 14 |
