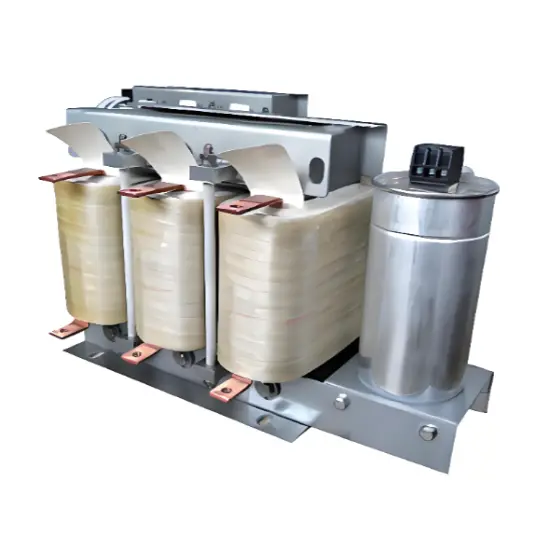

Three-phase Sine Wave Filter (SFR) for Inverter and Motor Drive

Add us on Google
  • Three-phase Sine Wave Filter (SFR) for Inverter and Motor Drive

Key attributes

Brand HK Electrical
Series SFR
Work Voltage 220VAC-690VAC
Work Current 15A-1500A
Work Frequency 50/60Hz
Insulation Class class F, H
Description

Product Introduction

Driven by the PWM inverter, the sine filter still provides sine wave output voltage when the switching frequency range is within the range of 2-8kHz. In the applications of inverter drives, such a filter can eliminate the problem of motor insulation failure and decrease electromagnetic interference by eliminating the high dV/dT related to inverter output waveform, so as to extend the life and improve the performance of the motor, and extend the output length of the inverter to up to 3KM. For the protection of wires and cables, the sine filter can avoid over-voltage of the drive motor with a long lead. In the application of other energy resources, wind generator, for example, the invertor restores the power to the utility power system through a step-up transformer. And such filters allow the use of a standard transformer. If the maximum value of the harmonic voltage distortion input to the transformer at full load and 60Hz is 5%, the harmonic voltage distortion input to the motor at full load is generally 5%.

Product Application

  • Convert the PWM waves output by the inverter sine waves

  • Reduce the eddy current losses of the motor and the motor noise

  • Reduce the pulse current of the output cable and motor, extending the life of the motor

  • A longer cable wire can be used between the inverter and motor

  • Reduce the external radiation, by using unshielded cable in certain situations, lowering the requirements for on-site wiring requirements

  • Effectively prevent fatigue damage of the motor caused by high DV/DT, over voltage, motor overheating and eddy current loss.

Technical Specifications

Item Specification
Work Voltage 220VAC-690VAC
Work Current 15A-1500A
Work Frequency 50/60Hz
Switching frequency 2~8KHz
Insulation Class class F, H
Rated voltage drop 8~12%
Voltage harmonic distortion THD≤5%
Load Current ≤8%
Operation Environment -10~+45 ℃, rated value won’t lower; up to +55℃; above 45℃, rated current reduced by 2% per 1℃ rise
Protection class IP00-IP22
Max Current 1.5 × Rated current, continuous 60S
Noise ≤ 65dB
Temperature Rise ≤85K
Dielectric strength Core Coil 3000VAC/50Hz/5mA/10s no electric arcing puncture (factory test)
Insulation Resistor 1000VDC insulation resistance value ≥ 100MΩ
Altitude Under seal level 2000m
Running ambient temperature -25℃ ~ +45℃, comparative moisture not over 90%
Ambient condition No hazardous gas, no inflammables and explosives
Ventilation With well-ventilated condition; ventilation devices shall be mounted if installation in panels



Applicable Standards

  • IEC289: 1987 Reactor

  • GB10229-88 Reactor (eqv IEC289: 1987)

  • JB9644-1999 Reactors used for semiconductor electrical driving

Three-phase Sine Wave Filter (SFR) for Inverter and Motor Drive

Product Size

Three-phase Sine Wave Filter (SFR) for Inverter and Motor Drive



TYPE Power(kw) Picture NO. Rated Current(A) Insulation Class Dimension(±5mm)
L(max) W(max) H(max) W1±2 D±2  A*B
SFR-0007-8M00-0.4SC 2.2
Picture A







7 F,H 195 200 195 72 120 8.5*20
SFR-0010-6M00-0.4SC 3.7 10 F,H 275 160 265 92 120 8.5*20
SFR-0015-4M00-0.4SC 5.5 15 F,H 275 160 265 92 120 8.5*20
SFR-0020-3M00-0.4SC 7.5 20 F,H 290 160 250 110 120 11*18
SFR-0030-2M00-0.4SC 11 30 F,H 330 185 250 104 182 11*18
SFR-0040-1M50-0.4SC 15 40 F,H 330 185 250 104 182 11*18
SFR-0050-1M20-0.4SC 18.5 50 F,H 380 210 260 118 214 11*18
SFR-0060-1M10-0.4SC 22 60 F,H 380 210 260 118 214 11*18
SFR-0080-0M85-0.4SA 30 80 F,H 460 230 290 149 243 11*18
SFR-0090-0M80-0.4SA 37 Picture B







90 F,H 460 230 290 149 243 11*18
SFR-0120-0M52-0.4SA 45 120 F,H 525 270 335 164 260 15*25
SFR-0150-0M45-0.4SA 55 150 F,H 525 270 350 174 260 15*25
SFR-0200-0M30-0.4SA 75 200 F,H 525 310 350 194 260 15*25
SFR-0250-0M28-0.4SA 110 250 F,H 550 335 375 214 260 15*25
SFR-0290-0M23-0.4SA 132 290 F,H 540 330 430 216 260 15*25
SFR-0330-0M20-0.4SA 160 330 F,H 600 340 450 204 350 15*25
SFR-0390-0M17-0.4SA 185 390 F,H 600 340 460 216 350 15*25
SFR-0490-0M14-0.4SA 220 Picture C


490 F,H 480 580 560 480 300 15*25
SFR-0600-0M12-0.4SA 280 600 F,H 480 640 575 510 300 15*25
SFR-0660-0M10-0.4SA 315 660 F,H 480 640 575 510 300 15*25
SFR-0800-087U-0.4SA 380

 Picture D





800 F,H 550 400 640 320 360 15*25
Capacitor + Shell Picture D     520 165 310 100 480 11*18
SFR-1000-070U-0.4SA 450 1000 F,H 680 490 750 320 400 15*25
Capacitor + Shell       565 180 380 100 540 11*18
SFR-1200-058U-0.4SA 500 1200 F,H 680 510 780 320 400 15*25
Capacitor + Shell       410 360 380 275 380 11*18
SFR-1500-050U-0.4SA 630 1500 F,H 700 530 800 370 400 15*25
Capacitor + Shell       565 365 380 275 540 11*18



Remark:Dimension can be customization
