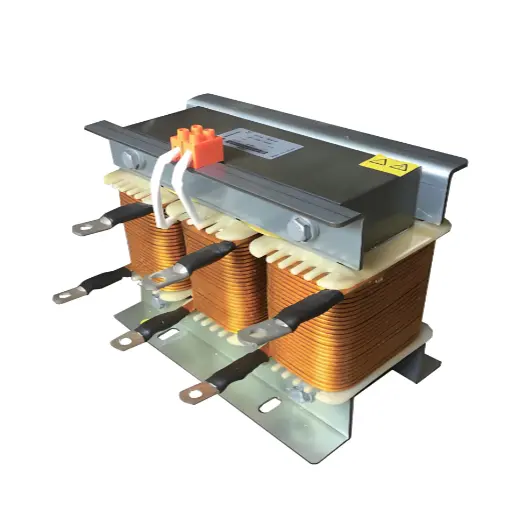

| Brand | HK Electrical |
| Series | ATR |
| Voltage Level | 400V, 440V, 480V, 525V, 690V |
| Output Capacity | 5–100kVar |
| Frequency | 50Hz / 60Hz |
| Reactance | 5.67%, 7%, 14% |
The nonlinear currents generated by the massive use of modern power and electric equipment are impacting the power grid and aggravate its pollution in the harmonic form, cause overload failures to capacitors, transformers and transmission devices and generate serious interference to measuring, transmitting and calculating devices; in addition, resonance and voltage distortions may also result in power supply accidents, Series reactors could effectively improve or avoid such problems. After installing the capacitor and reactor in series, the resonance frequency is lower than the minimum of the system (usually 5th and 7th waves), so that compatibility is showed under power frequency and power factor is improved; meanwhile, there is no need to worry about the amplification of harmonic wave. With satisfactory impedance matching, the capacitor bank could absorb 30% to 60% of the harmonic currents (5th harmonic wave, for example).
IEC289: 1987 Reactor
GB10229-88 Reactor (eqv IEC289: 1987)
JB9644-1999 Reactors used for semiconductor electrical driving
Multi-segment air gap
Low noise
High linearity
A ventilation channel is arranged between the core column and the winding for heat dissipation
| Item | Specification |
|---|---|
| Fundamental Current | I₁=1.06 * Iᵣ (Iᵣ = capacitor rated current) |
| Harmonic Voltage | U₃=0.5%Uᵣ U₅=6.0%Uᵣ U₇=5.0%Uᵣ U₁₁=3.5%Uᵣ U₁₃=3.0%Uᵣ (Fundamental voltage = 100%) |
| Temperature Protection | Miniature switch (normally closed) |
| Frequency | 50Hz / 60Hz |
| Voltage Level | 400V, 440V, 480V, 525V, 690V |
| Output Capacity | 5-100kvar |
| Reactance | 5.67%, 7%, 14% |
Three-phase complement 400V,50Hz, P=7% fr=189Hz for 480V Capacitor

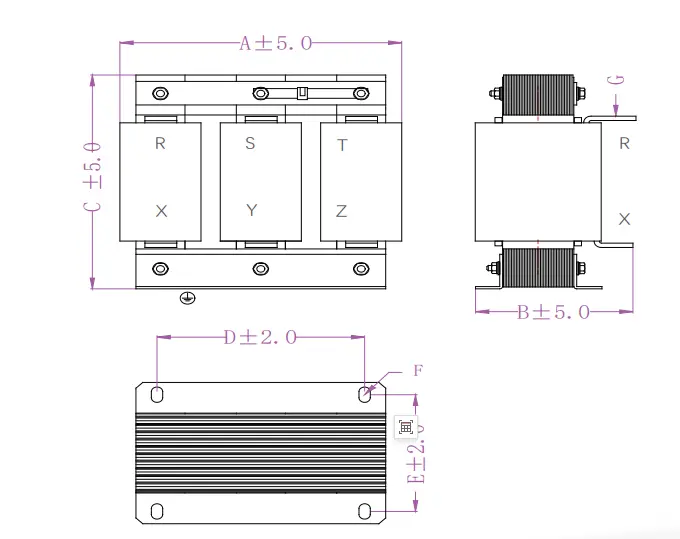

| TYPE | Nameplate capacity (Kvar) | Rated current C (A) | Rated inductance (mH) | External dimensions(mm) | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | D | E | G | ||||
| ATR-0025-2M58-0.4SAL | 24.4 | 93 | 2.568 | 150 | 160 | 160 | 235 | 20 |
| ATR-0031-2M05-0.4SAL | 30.5 | 93 | 2.054 | 150 | 160 | 160 | 235 | 20 |
| ATR-0037-1M73-0.4SAL | 36.6 | 93 | 1.712 | 150 | 160 | 160 | 235 | 20 |
| ATR-0050-1M29-0.4SAL | 48.8 | 125 | 1.285 | 150 | 185 | 215 | 255 | 10.5 |
| ATR-0061-1M03-0.4SAL | 61.0 | 125 | 1.028 | 150 | 185 | 215 | 255 | 10.5 |
| ATR-0074-0M86-0.4SAL | 73.3 | 125 | 0.856 | 150 | 185 | 215 | 250 | 10.5 |
Three-phase complement 400V,50Hz, P=14% fr=134Hz for 525V Capacitor
| TYPE | Nameplate capacity (Kvar) | Rated current C (A) | Rated inductance (mH) | External dimensions(mm) | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | D | E | G | ||||
| ATR-0028-4M92-0.4SAL | 27.5 | 125 | 4.916 | 150 | 185 | 215 | 255 | 10.5 |
| ATR-0042-3M28-0.4SAL | 41.2 | 125 | 3.279 | 175 | 190 | 215 | 285 | 10.5 |
| ATR-0055-2M46-0.4SAL | 55.0 | 125 | 2.457 | 175 | 190 | 215 | 300 | 10.5 |
| ATR-0083-1M64-0.4SAL | 82.4 | 150 | 1.640 | 175 | 190 | 255 | 335 | 12.5 |
Remark：Dimension can be customization
