JDZ-12Q,JDZJ-12Q Voltage Transformer
Zhejiang Wone IT Service Co., Ltd.
1yrs +
staff 1000+m² US$300000000+
Key attributes
| Brand | Wone Store |
| Model NO. | JDZ-12Q,JDZJ-12Q Voltage Transformer |
| Rated frequency | 50/60Hz |
| Primary voltage | 11kV |
| Secondary voltage | 110V |
| Series | JDZJ |
Product descriptions from the supplier
Description
Product Overview
12kV Indoor Single-Phase Epoxy Resin Type Epoxy resin casting and double pole insulated VT, is used indoor switch cabinet for measuring voltage, electric energy and protective relaying in single-phase or three-phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipement 12kV.The product has the feature of high reliability, low magnetism of core and maintenance free etc
Technical Data
Installation site: indoor
Rated frequency: 50/60Hz
Load power factor: cosΦ=0.8 （lagging）
Technical standard accords with IEC 60044-2(IEC 61869-1&3)

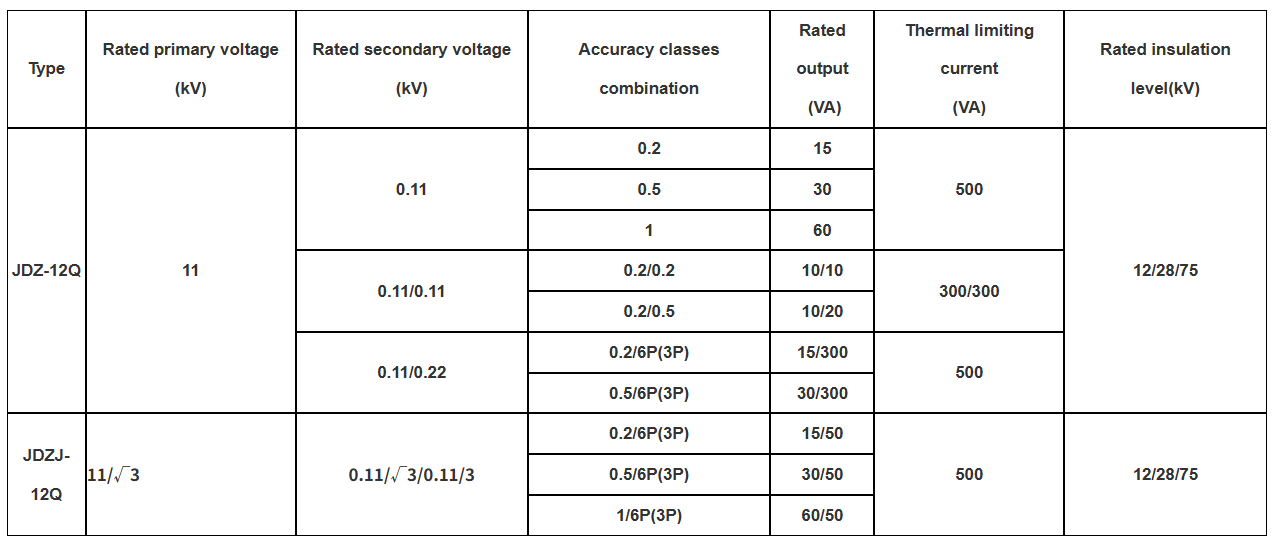

Specification

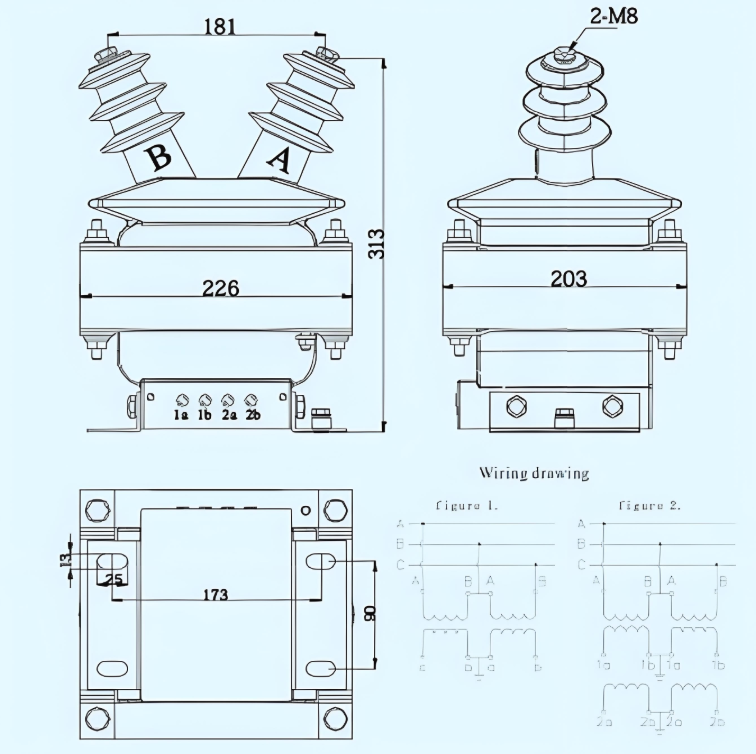

Outline
