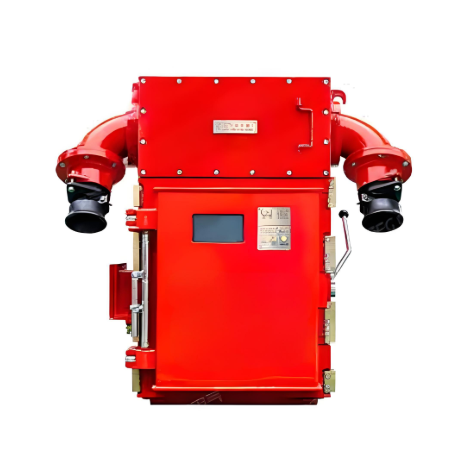

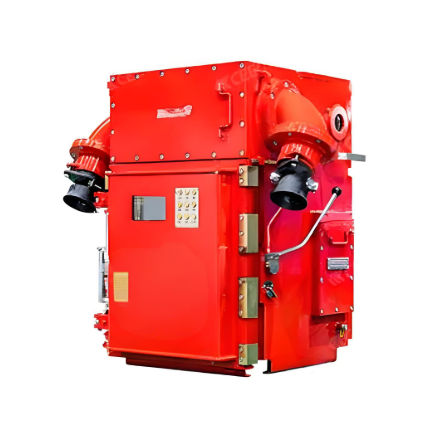

High-voltage Permanent Magnet Mechanism Vacuum Switch for Mining Flameproof Mobile Substations
Key attributes
| Brand | ROCKWILL |
| Model NO. | High-voltage Permanent Magnet Mechanism Vacuum Switch for Mining Flameproof Mobile Substations |
| Rated frequency | 50/60Hz |
| Series | KJGZY |
Product descriptions from the supplier
Product Introduction
The KJGZY series flameproof and intrinsically safe high-voltage permanent magnet mechanism vacuum switches for mining mobile substations are equipped with multiple protection functions, including overload, short circuit, overvoltage, undervoltage, leakage, leakage locking, phase loss, over-temperature, wind power and gas locking, as well as emergency shutdown of the upper-level power supply. They are particularly suitable for power supply of underground equipment in large mines with high requirements for safety and automation.
Feature
Independent Chambers：Equipped with independent circuit breaker chamber, isolating switch chamber, and wiring chamber, enabling live maintenance, safe and reliable operation and upkeep.
High Precision：1A step setting for higher precision.
Effective Explosion Protection：Integrated three-chamber design ensures reliable explosion protection.
Digital Control：Adopts an industrial programmable logic controller (PLC) and human-machine interface (GOT) to form the core control system, featuring stable performance, precise protection, and simple maintenance. It also has fault memory and password locking functions.
Advantage
Stable Operation：Adopts an industrial programmable logic controller (PLC) and human-machine interface (GOT) to form the core control system, featuring stable performance, precise protection, and simple maintenance.
Safety and Reliability：Current can be continuously set with a step value of 1A, enabling safe and reliable live maintenance, operation and upkeep. All faults trigger the high-voltage side vacuum circuit breaker to trip via signal lines, reducing breaking current.
Multiple Protections：Equipped with protection functions including overload, short circuit, overvoltage, undervoltage, leakage, leakage locking, phase loss, over-temperature, wind power and gas locking, emergency shutdown of upper-level power supply, etc. It can also protect against faults fed back from the low-voltage side of the mobile substation.
Modular Design：Comes with standard RS232/485 communication interfaces, featuring powerful remote communication and control functions. It has a small size, reasonable structure and intuitive operation.
