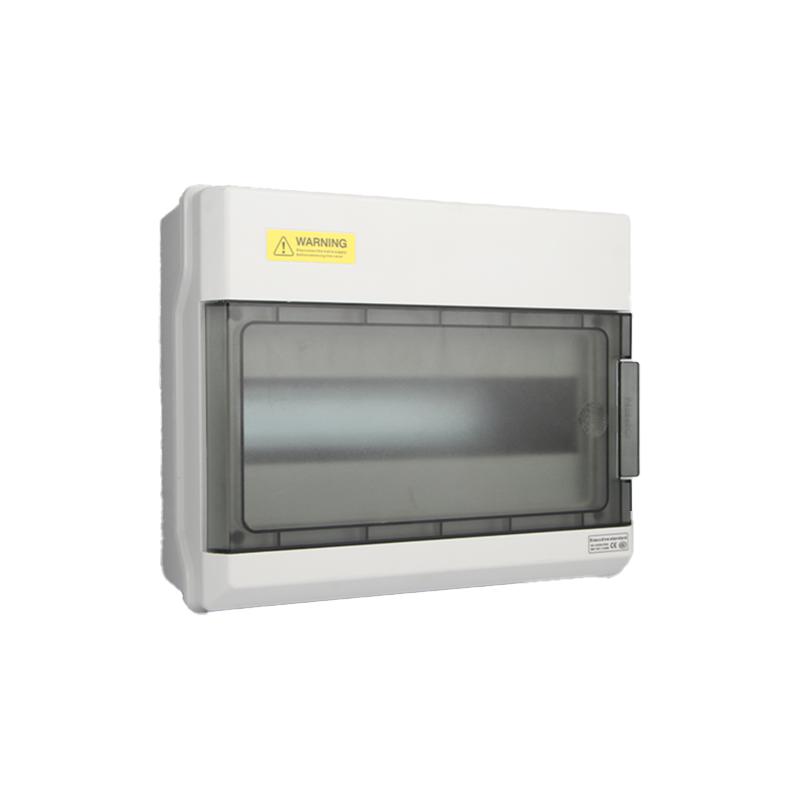

HA Distribution Box
Key attributes
| Brand | Switchgear parts |
| Model NO. | HA Distribution Box |
| Mounting type | Exposed installation |
| Series | HA |
Product descriptions from the supplier
Body material: ABS
Transparent door: PC
Material characteristics: Impact, heat, low temperature, chemical resistance, excellent electrical performance and surface gloss, etc.
Certificates: CE, ROHS
Protection grade: IP65
Application: Suitable for indoor and outdoor electric, communication, fire fighting apparatus, iron and steel smelting, petrochemical industry, electron, power system, railway, building, mine, air and seaport, hotel, ship, works, wastewater treatment equipment, environmental equipment, and so on
Installation: 1, inside: There are din rail inside for din-rail type circuit breakers, an early bar, and a natural bar for cable connection
2,0utside: The products can be directly fixed on the wall or other flat boards with screws or nails via the screw holes in the base.
Outlet hole: The plastic plate in the hole can be knocked off for cables.
| Model Code | Outside Dimension (mm) | G. Weight | N. Weight | Qty/Carton | Carton Dimension | ||
| L | W | H | |||||
| CHA-MS 4WAY | 112 | 200 | 95 | 12 | 8.7 | 30 | 51 x 36×42.5 |
| CHA-MS 6WAY | 148 | 200 | 95 | 14.9 | 11.5 | 30 | 51 x 42.5×48.5 |
| CHA-MS 8WAY | 184 | 200 | 95 | 16.7 | 12.8 | 30 | 52×42.5×58.5 |
| CHA-MS 10WAY | 222 | 200 | 95 | 13.0 | 9.8 | 20 | 51 x43x47.5 |
| CHA-MS 12WAY | 256 | 200 | 95 | 14.8 | 11.5 | 20 | 51 x 43×54 |
| CHA-MS 15 WAY | 310 | 200 | 95 | 12.8 | 9.9 | 15 | 51x33x63.5 |
| CHA-MS 18WAY | 365 | 222 | 95 | 15.2 | 12.8 | 15 | 52.5x38x70 |
| CHA-MS 24WAY | 271 | 325 | 97 | 13.2 | 10.3 | 10 | 53.5x34x56.5 |
| CHA-MS 36WAY | 271 | 462 | 100 | 19 | 14.8 | 5 | 54.5×28.5×48 |
| HA IP65 | |
| 4way | ABS without terminal |
| 8 way | ABS without terminal |
| 12 way | ABS without terminal |
| 18 way | ABS without terminal |
| 24 way | ABS without terminal |
| HT IP65 | |
| 5way | ABS without terminal |
| 8 way | ABS without terminal |
| 12 way | ABS without terminal |
| 15 way | ABS without terminal |
| 18 way | ABS without terminal |
| 24 way | ABS without terminal |
