GYFZ3 Distribution Box
Key attributes
| Brand | Switchgear parts |
| Model NO. | GYFZ3 Distribution Box |
| number of circuit | 4 |
| Series | GYFZ3 |
Product descriptions from the supplier

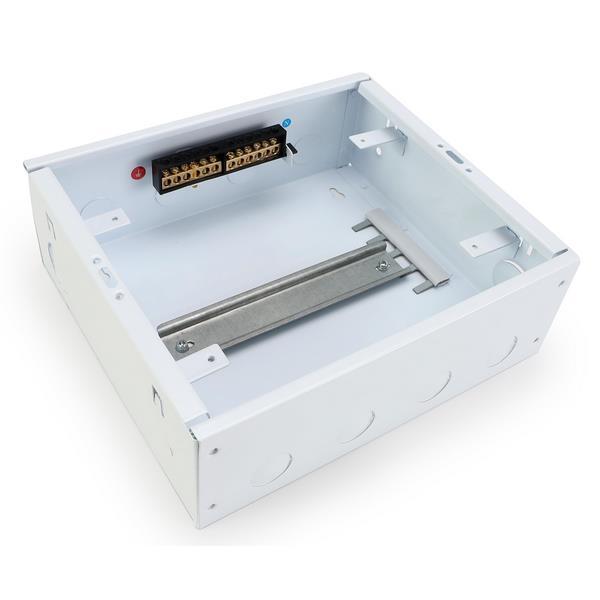

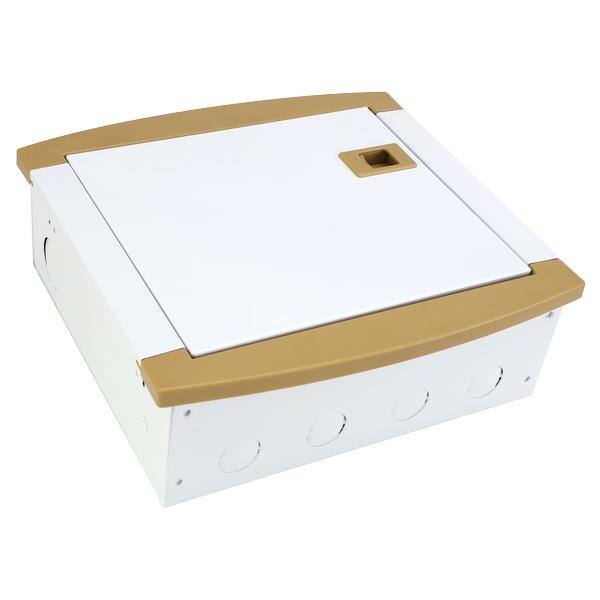

The metal cover and box are made of high-quality cold-rolled steel plate and environment-friendly electrostatic spraying. Mainly used for
1.Power distribution system: electrical installation, supporting and house renovation and decoration of building electrical power distribution system.

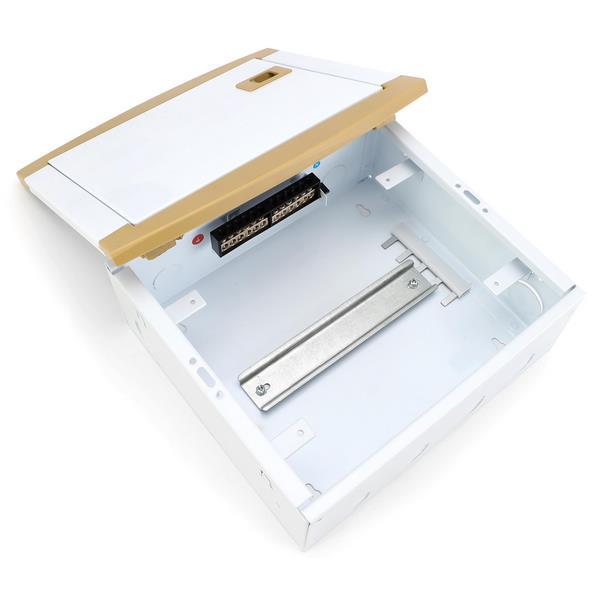

2.Installation method The metal box is matched with the plastic cover, which is especially suitable for the concealed installation of the distribution box in the construction and decoration works.
3.Stylish appearance design is suitable for high-end residential buildings,hotels, office buildings and other places that show modern life taste.
4.The products that meet the standards have first obtained 3C certification and meet the standards of GB17466.1 and GB17466.24

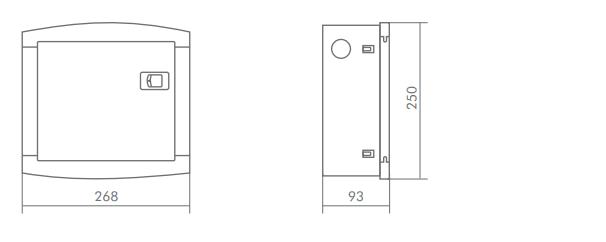

| Item | Specification | Overall dimensions | Bottom box size |
| GYFZ3-4 | 4 way | 266*252*90 | 250*220*85 |
| GYFZ3-6 | 6 way | 266*252*90 | 250*220*85 |
| GYFZ3-8 | 8 way | 302*252*90 | 286*220*85 |
| GYFZ3-12 | 12 way | 266*390*90 | 250*358*85 |
