| Brand | ROCKWILL |

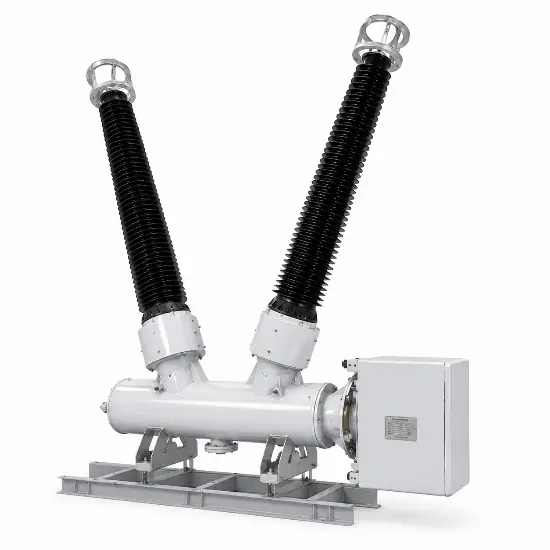

| Model NO. | Dead Tank SF6 Circuit Breaker China Factory-363kV |
| Rated voltage | 363kV |
| Rated normal current | 5000A |
| Rated frequency | 50/60Hz |
| Series | RHD |
As a trusted EHV Dead Tank SF6 Circuit Breaker China Manufacturer, ROCKWILL offers OEM/ODM customization services. In the development history of China’s dead tank SF₆ circuit breaker industry, we are undoubtedly a pioneer. As an original manufacturer focusing on this sector, decades of technical accumulation and continuous innovation have laid a solid foundation for mature production and kept us at the forefront of R&D. Our products exceed market expectations in reliability and are the preferred choice for numerous major power projects.
High Voltage Rating Adaptability: Specifically designed for 363 kV extra-high voltage systems, it stably handles high voltages and large currents, ensuring reliable operation of EHV transmission lines.
Efficient Arc Extinguishing Performance: Using SF6 gas as the arc-extinguishing medium, it features fast arc extinction and high insulation strength, quickly cutting off fault currents and minimizing system impacts.
Dead Tank Sealed Structure: The dead tank design encloses live parts in a metal tank filled with SF6 gas, effectively isolating them from the external environment. It offers strong seismic resistance and adapts to harsh climates and complex geographical conditions.
Long Lifespan & Low Maintenance: With long mechanical and electrical lifespans, the sealed structure reduces component aging and external erosion risks, minimizing maintenance frequency and operational costs.
Multifunctional Integrated Design: Integrates components like inlet/outlet bushings and current transformers, enabling multiple functions such as current measurement, protection, and circuit switching to meet complex control needs of power systems.
High Safety Assurance: Equipped with comprehensive anti-misoperation interlocking devices and multiple insulation protections, it effectively prevents operator errors and ensures the safety of personnel and equipment.
| Serial number |
Project |
Parameters |
|
| 1 |
Rated voltage |
363kV |
|
| 2 |
Rated Current |
5000A |
|
| 3 |
Rated frequency |
50/60Hz |
|
| 4 |
Rated short-circuit breaking current |
50kA |
|
| 5 | Power frequency withstand voltage | Rated withstand voltage (phase-to-earth / phase-to-phase) |
510 kV |
| Rated withstand voltage (isolating break / across open contacts) |
720 kV |
||
| 6 |
Rated short-circuit closing current |
130kA |
|
| 7 |
Rated short-time withstand current and duration |
50kA/3s |
|
| 8 | Lightning impulse withstand voltage (peak) | Rated withstand voltage (phase-to-earth / phase-to-phase) |
1175 kV |
| Rated withstand voltage (isolating break / across open contacts) |
1470 kV |
||
| 9 |
Rated peak withstand current |
130kA |
|
| 10 |
Mechanical life |
M2 |
|
Environmental Condition| Ambient air temperature upper limit | +40 °C |
| Ambient air temperature 24-hour average | +35 °C |
| Ambient air temperature lower limit | –25 °C (‑40 °C Optional) |
| Altitude above sea level | ≤ 1000 m |
| Relative humidity (24-hour average) | ≤ 95% |
| Relative humidity (monthly average) | ≤ 90% |
| Water vapor pressure (24-hour average) | ≤ 2.2 kPa |
| Water vapor pressure (monthly average) | ≤ 1.8 kPa |
| Solar radiation | ≤ 1000 W/m² |
| Pollution level | Level III (or per site) |
This Dead Tank SF6 Circuit Breaker adopts a dead tank sealed structure. Live parts are enclosed in the SF6-filled metal tank and isolated from the outside, with strong seismic performance for harsh climates and complex terrain.
Yes. This Dead Tank SF6 Circuit Breaker integrates inlet/outlet bushings and current transformers, supporting current measurement, protection and circuit switching to meet complex power system control demands.
Yes. As a trusted EHV Dead Tank SF6 Circuit Breaker China Manufacturer, ROCKWILL supports OEM/ODM customization for this Dead Tank SF6 Circuit Breaker to match your project specifications.
