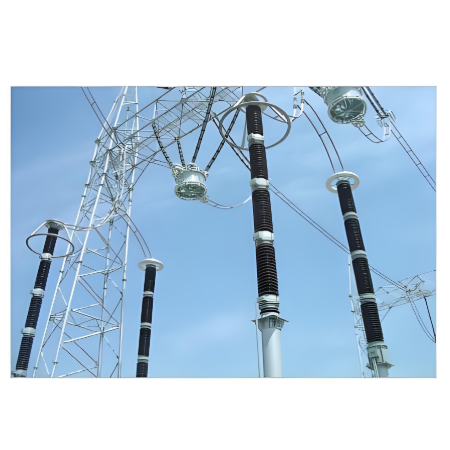

Description of 750kV Series Porcelain-Housed Metal Oxide Surge Arresters

750kV Series Porcelain-Housed Metal Oxide Surge Arresters are critical protective devices engineered for ultra-high voltage (UHV) power systems, specifically 750kV transmission lines, substations, and key equipment like transformers and circuit breakers. Their primary function is to suppress transient overvoltages caused by lightning strikes, switching operations, or grid faults, diverting excessive surge currents to the ground while maintaining stable voltage levels during normal operation. Encased in high-strength porcelain housings, they integrate advanced metal oxide varistor (MOV) technology to provide robust protection, ensuring the safety and reliability of 750kV grid infrastructure against electrical surges that could lead to equipment damage or widespread power outages.

Features of 750kV Series Porcelain-Housed Metal Oxide Surge Arresters

• Ultra-High Voltage Handling Capacity: Designed to operate in 750kV systems, with a rated voltage matching the grid’s requirements. They can effectively clamp overvoltages within safe limits, even under extreme surge conditions, making them suitable for large-scale UHV transmission networks.

• Durable Porcelain Enclosure: The porcelain housing offers exceptional mechanical strength and environmental resistance, withstanding harsh conditions such as high humidity, pollution, extreme temperatures (-40°C to 60°C), and seismic activity. It provides reliable insulation and physical protection for internal components.

• Advanced Metal Oxide Varistors (MOVs): Equipped with high-performance MOVs featuring excellent non-linear resistance characteristics. These components rapidly conduct surge currents during overvoltage events and revert to a high-resistance state under normal operation, minimizing leakage current (typically <100&mu;A) to reduce energy loss.

• High Surge Withstand Capability: Capable of handling large impulse currents (up to several hundred kA) from lightning or switching surges, ensuring stable performance during transient events. This high tolerance protects adjacent equipment from voltage spikes.

• Series Configuration Adaptability: Designed for series connection to accommodate the 750kV voltage level, with integrated grading devices (such as capacitors or rings) to ensure uniform voltage distribution across units, enhancing overall system stability.

• Low Maintenance Requirements: The porcelain housing is corrosion-resistant and self-cleaning in most environments, reducing the need for frequent upkeep. Many models include monitoring ports for leakage current and temperature checks, enabling predictive maintenance.

• Compliance with International Standards: Meets stringent industry standards such as IEC 60099-4 and ANSI/IEEE C62.11, ensuring compatibility with global 750kV power systems and adherence to safety and performance benchmarks.
