15kV 15.5kV 22kV 27kV 38kV Three-Phase Automatic Circuit Recloser/ reclosure with ADVC Controller
Key attributes
| Brand | Schneider |
| Model NO. | 15kV 15.5kV 22kV 27kV 38kV Three-Phase Automatic Circuit Recloser/ reclosure with ADVC Controller |
| Rated voltage | 15kV |
| Series | N-Series |
Product descriptions from the supplier
Overview
As the pioneer and first professional OEM in China’s recloser industry, we’ve built robust R&D and manufacturing capabilities over decades, and set the industry’s original standards with groundbreaking achievements.

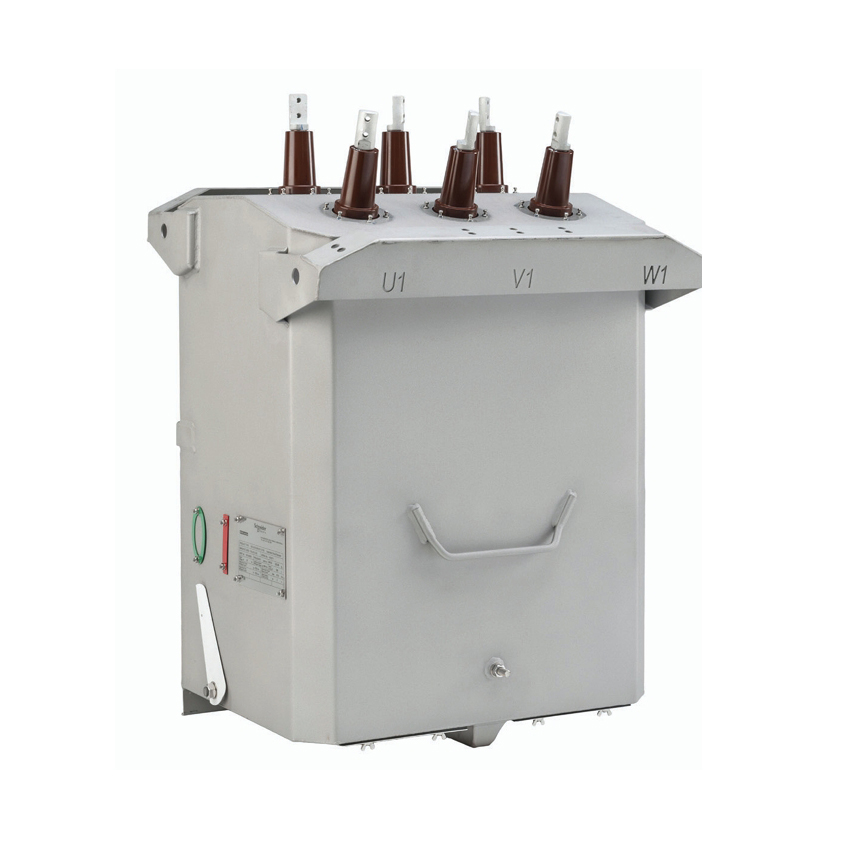

The Three-Phase Automatic Circuit Recloser/ reclosure with ADVC Controller is designed around vacuum interrupters contained in a fully welded and sealed 316 marine-grade stainless steel enclosure. The N-Series ACR is designed around vacuum interrupters contained in a fully welded and sealed 316 marine grade stainless steel enclosure. The enclosure is filled with sulphur hexafluoride (SF6) gas or dry air (‘N-green’ option), which both have excellent electrical insulating properties, resulting in a compact and low-maintenance device.
ADVC Features
Each recloser is provided with an operator interface. From here a user can access and program the many measurement and protection features available. The two following operator
interfaces are available:
SetVUE Operator Interface
Based on the field-proven operator panels in the previous controllers, this menu-driven interface with large LCD display offers a familiar look and feel.
FlexVUE Operator Interface
20 Status Lights provide a quick snapshot of the protection and controller status.
12 Quick Action Keys are available to execute frequently used actions such as «Remote control» ON/OFF, «Reclose» ON/OFF, etc. Each key has its own status light to indicate the ON/OFF state.
All Status Lights and Quick Action Keys are customizable.
It is possible to access event and measurement data and change settings.
N-Series Recloser Specifications
The voltage classes of some of these Automatic Reclosers include 6kV, 6.3kV, 6.6kV, 6.9kV, 7.2kV, 10kV, 10.5kV, 11kV, 11.5kV, 12kV, 13.2kV, 13.8kV, 14.5kV, 14.4kV, 15kV, 15.5kV, 15.6kV, 17.5kV, 20kV, 21.9kV, 22kV, 24kV, 30kV, 33kV, 33.5kV, 34.5kV, 35kV, 36kV, 38kV, 38.5kV, 40.5kV, 44kV, 45kV, 46kV, 66kV and 69kV. Rated Short-Circuit Breaking Current includes 8kA, 12.5kA, 16kA, 20kA, 25kA, 31.5kA and customization is available.
