10.5kV 11kV 11.5kV 12kV Solid Insulated Ring Main Unit/Switchgear source manufacturer

Description

Pioneer in China's eco-friendly switchgear sector, we have specialized in R&D and manufacturing of SF₆-free switchgear for decades. With core technologies, we have established industry standards. Boasting a fully independent end-to-end production chain, we have built a product matrix of zero-emission and high-reliability eco-friendly switchgear, making us a trusted choice for power grid construction.

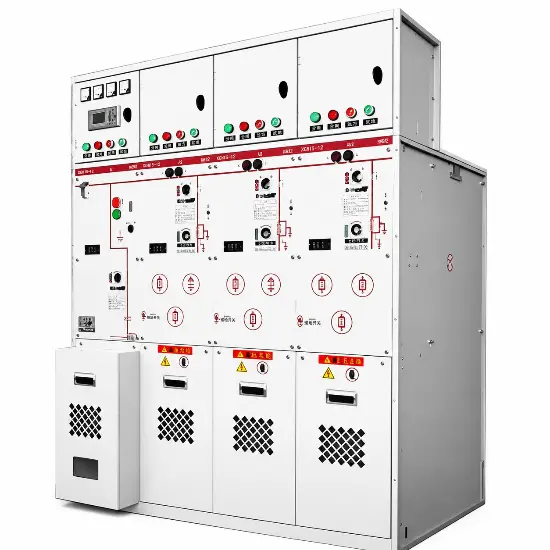

Solid Insulated Ring Main Unit Switchgear.It is an armored metal enclosed structure. The shell is made of steel plate and processed by CNC machine, and adopts double folding process. The outer surface is made of plastic spraying process, and the whole cabinet has the characteristics of high precision and corrosion resistance.

Features

• Minimal component design.

• Completely designed with environmentally friendly materials.

• Do not use SF6 gas for arc extinguishing and insulation.

• The primary circuit is designed with minimal contacts to ensure low energy consumption during operation.

• Only use reusable and/or recyclable materials.

Parameter

The voltage classes of some of these eco-friendly switchgears include 6kV, 6.3kV, 6.6kV, 6.9kV, 7.2kV, 10kV, 10.5kV, 11kV, 11.5kV, 12kV, 13.2kV, 13.8kV, 14.5kV, 14.4kV, 15kV, 15.5kV, 15.6kV, 17.5kV, 20kV, 21.9kV, 22kV, 24kV, 30kV, 33kV, 33.5kV, 34.5kV, 35kV, 36kV, 38kV, 38.5kV, 40.5kV, 44kV, 45kV, 46kV, 66kV and 69kV. and customization is available.

Ordering notice

Whether to customize: Customize the product according to the drawing, and the standard plan has a small amount in stock.

Factory information: The manufacturer should provide the following documents and accessories when picking up the goods:

• Delivery list;

• Product certificate and factory test report;

• Instruction manual;

• Relevant electrical drawings, manuals for main components; cabinet door keys, operating handles and spare parts specified in the contract.
