| Brand | Xinyouxiang |

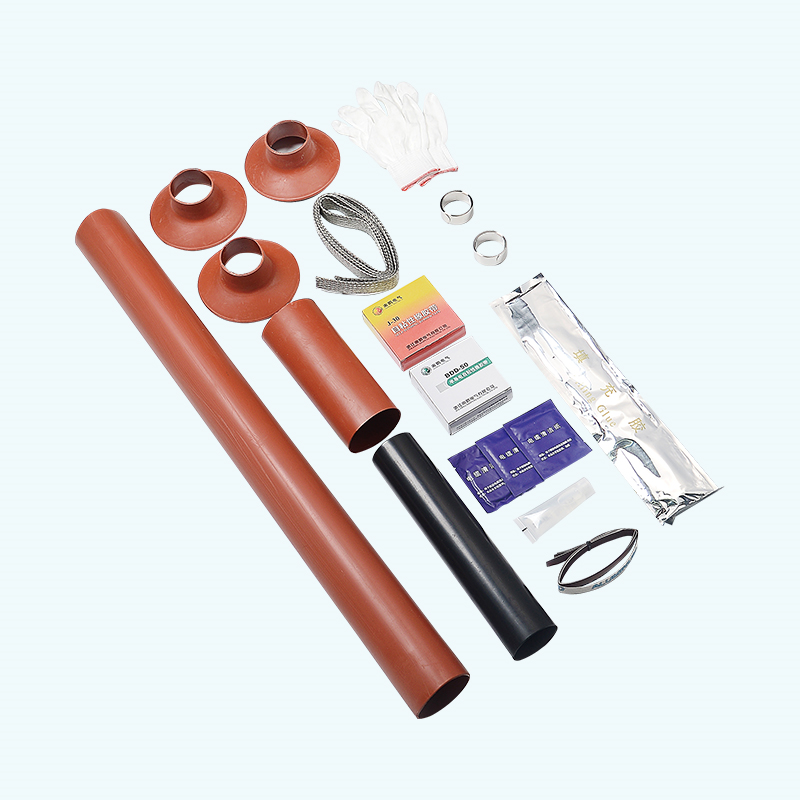

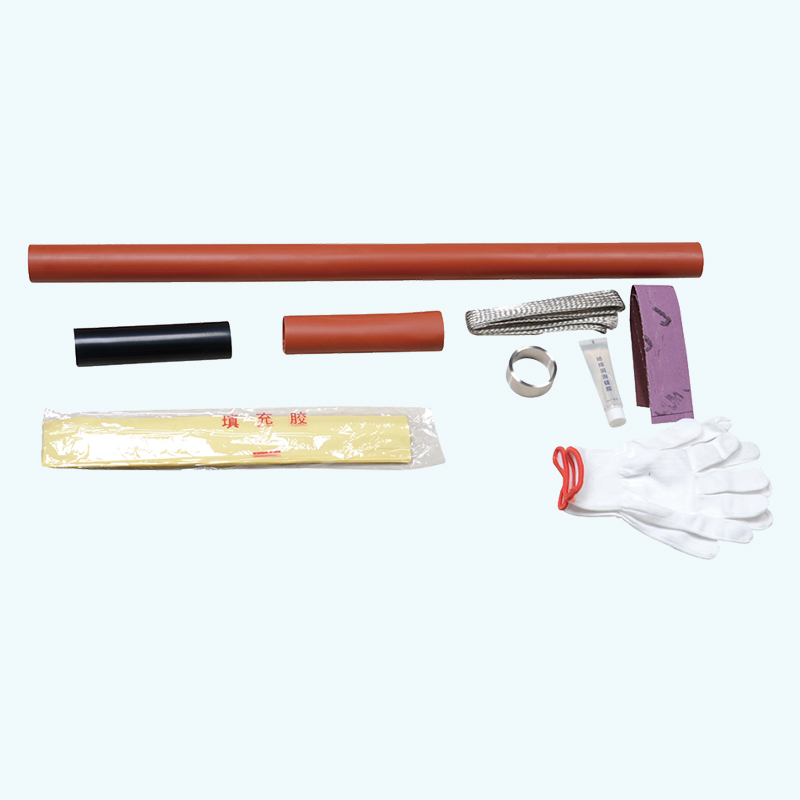

| Model NO. | 1-core Indoor termination kit |
| Rated voltage | 20kV |
| number of core | 1-core |
| Series | NSY |
Use and characteristics
Heat shrinkable medium voltage products are widely used for insulation treatment of 6-35kV cross-linked cable terminals and intermediate connections. It has the characteristics of small size, light weight, reliable operation, and easy installation. According to user needs, multi-core cables, dual ground wire structures, or products with special requirements can be designed.
Product name |
Applicable cable cross section(mm²) |
Indoor termination kit 1-core |
|
1 |
10KV XPLE heat ahrinkable cable accessories |
25~50 |
NSY-10/1.1 |
2 |
70~120 |
NSY-10/1.2 |
|
3 |
150~240 |
NSY-10/1.3 |
|
4 |
300~400 |
NSY-10/1.4 |
|
5 |
500~630 |
NSY-10/1.5 |
|
6 |
20KV XPLE heat ahrinkable cable accessories |
25-50 |
NSY-20/1.1 |
7 |
70-120 |
NSY-20/1.2 |
|
8 |
150-240 |
NSY-20/1.3 |
|
9 |
300-400 |
NSY-20/1.4 |
|
10 |
35KV XPLE heat ahrinkable cable accessories |
50-120 |
NSY-35/1.1 |
11 |
150-300 |
NSY-35/1.2 |
|
12 |
400-500 |
NSY-35/1.3 |
|
