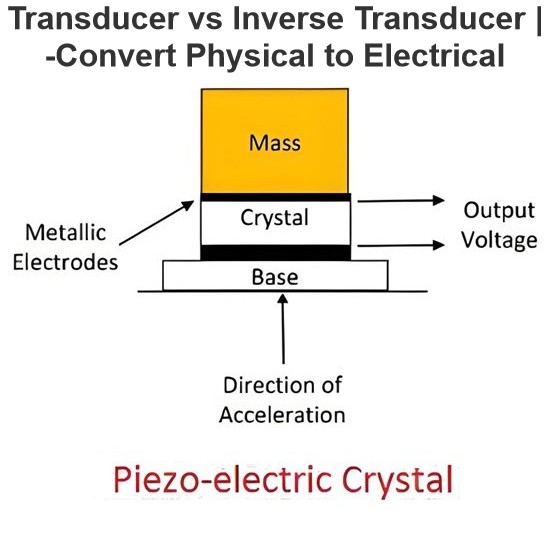

One of the primary differences between a transducer and an inverse transducer is that a transducer converts a non-electrical quantity into an electrical quantity, whereas an inverse transducer converts an electrical quantity into a non-electrical quantity. Other differences between the two are summarized in the comparison chart below.The control of physical quantities such as flow, rate, position, speed, temperature, and pressure depends on the accurate measurement of these quantities. In simple

A stationary generator must never be connected to live busbars, as the induced electromotive force (EMF) is zero at standstill, which would cause a short circuit. The synchronization procedure and the equipment used for checking it are identical whether one alternator is to be connected in parallel with another alternator or an alternator is to be connected to an infinite bus.Synchronisation via Synchronising LampsA set of three synchronizing lamps can be employed to verify the conditions for pa

The voltage source inverter (VSI) and the current source inverter (CSI) represent two distinct categories of inverters, both designed for converting direct current (DC) to alternating current (AC). Despite their shared purpose, they exhibit notable operational differences and cater to distinct application requirements.Power electronics centers on the study and implementation of various power converters—devices or electronic circuits that transform one form of electrical energy into ano

Definition: The maximum demand indicator is used to measure the maximum amount of power consumed by a consumer within a specific time interval. It is designed to measure base and peak loads, but it cannot measure sudden short - circuit currents or the high starting currents of motors. Its purpose is to record power consumption over specific periods.The maximum demand indicators are categorized into four types: Recording demand indicator Average demand indicator Thermal type maximum demand indica

Types of Static Voltage RegulatorThe static voltage regulator is superior to electromechanical regulators in respect of the accuracy of control, response, reliability and maintenance. The static voltage regulator is mainly classified into two types. They are; Servo Type Voltage Regulator Magnetic Amplifier RegulatorThe types of static voltage regulator are described below in details;Servo Type Voltage RegulatorThe main feature of the servo type voltage regulator is the use of the amplidyne. The

DefinitionInstruments that utilize a rectifying element to measure voltage and current are known as rectifying instruments. The rectifying element converts alternating current (AC) into direct current (DC), which is then indicated by a DC-responsive meter. A Permanent Magnet Moving Coil (PMMC) instrument is commonly used as the indicating device.Rectifying instruments exhibit higher sensitivity compared to moving coil and electrodynamometer instruments, making them suitable for current and volta

General Problems and Considerations in Electrical TerminationWhen it comes to terminating electrical connections in indoor switchgears, electric motors, power transformers, instrument transformers, and other medium - voltage (MV, where the voltage range is（1kV<V<60kV)and high - voltage (HV, withV≥60kV)equipment, several challenges emerge. These issues often stem from the complexity of termination designs, especially those related to switchgears. To address these concerns effectively, close

Resistance Box: Definition, Types, and OperationDefinitionA resistance box is a device that houses resistors of various values, primarily used for estimating and comparing electrical resistance. Renowned for its high accuracy, its main function is to regulate the precise amount of current flowing through an electrical circuit.AdvantagesOne of the key benefits of a resistance box is its ability to provide variable resistances in a single, centralized unit. In scenarios where a circuit demands var

What is Three Phase Energy Meter？DefinitionA three - phase energy meter is an instrument designed to measure the power of a three - phase electrical supply. It is constructed by connecting two single - phase meters via a shaft. The total energy consumption is determined by summing the readings of both elements.Working Principle of Three - Phase Energy MeterThe torques generated by the two elements are mechanically combined. The total rotation of the shaft is directly proportional to the energy c

What is Synchro？DefinitionA Synchro is a type of transducer that converts the angular position of a shaft into an electrical signal. It functions as both an error detector and a rotary position sensor. Errors in the system often occur due to shaft misalignment. The two main components of a synchro are the transmitter and the control transformer.Synchro System TypesThere are two types of synchro systems:Control Type Synchro Torque Transmission Type Synchro Torque Transmission Type SynchrosThis ki
