Power Generation Prefabricated Compact Secondary Substations

Descripton

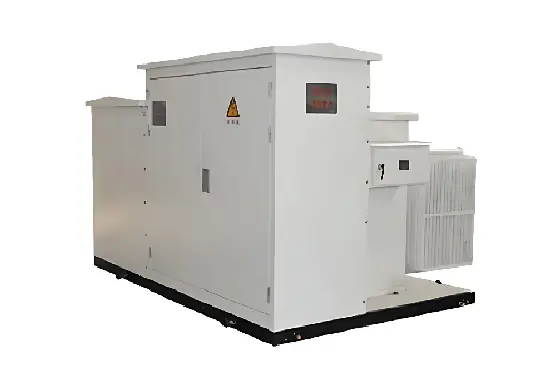

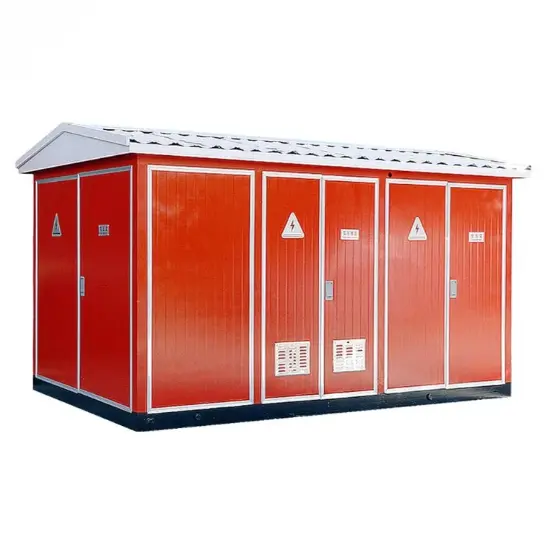

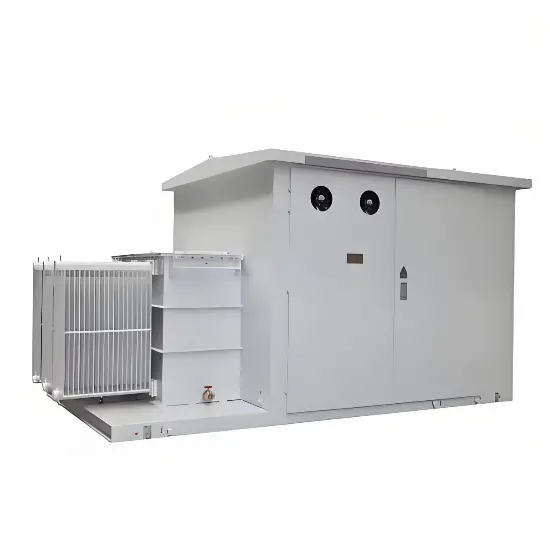

YB-type compact substations, also known as European-style prefabricated substations, comply with GB17467-1998 for high-low voltage substations and IEC1330 standards. Compared to conventional civil substations, they offer key advantages: small footprint, compact structure, easy mobility, which shorten construction periods, reduce land occupation and infrastructure costs. Their on-site installation and maintenance are simple, and they can be positioned closer to load centers to improve power supply quality, minimize power losses, and enhance distribution network reliability. These substations integrate complete functions for power transformation, distribution, transmission, measurement, compensation, system control, protection, and communication.

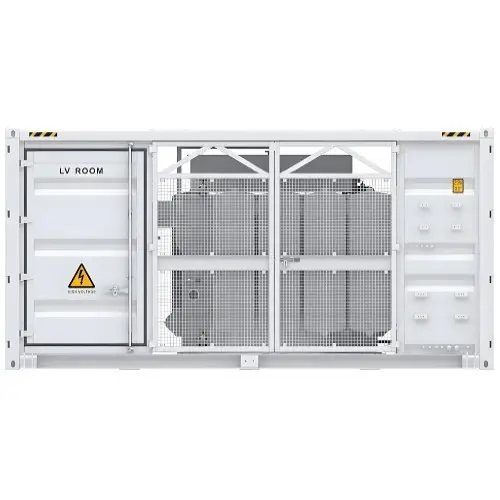

Composed of four parts—high-voltage switchgear, low-voltage distribution panels, distribution transformers, and enclosures—YB substations use high-voltage air load switches and offer dry-type or oil-immersed transformers. The enclosures feature excellent insulation and ventilation structures with upper ventilated ducts to minimize temperature rise in HV/LV transformer rooms, equipped with temperature-controlled forced ventilation and automatic thermal management. Each independent unit is fitted with comprehensive control, protection, live-line indication, and lighting systems.

Main Features
Will the primary and secondary equipment install a portable sealed, temperature control, anti-corrosion moisture-proof anti-rust the cabinet, arriving at the just installed in cement basis. Has less investment, construction period is short, covers an area of less, easy and harmonious environment etc. Characteristics.

Main Technical Specifications

 Product scope

• Rated voltage up to 40,5kV

• Transformer rating up to 3500kVA

• Available with  A B B  Air or Gas insulated MV secondary switchgear
