  • LZZBJ10-36 Current Transformer
LZZBJ10-36 Current Transformer
discuss personally
Model
LZZBJ10-36
Basic info Product Detail Supplier
Basic info
Brand Wone Store
Model NO. LZZBJ10-36 Current Transformer
Rated frequency 50/60Hz
Rated insulation voltage 36kV
Rated current ratio 800/5
Series LZZBJ
Product Detail

Product Overview

LZZBJ10-36 Current Transformer 36kV Indoor Single-Phase Epoxy Resin Type Epoxy resin casting insulation and fully enclosed support construction, encloses primary & secondary windings and annular core in the epoxy resin casting body. The product has the feature of light weight, omnidirectional installation, withstanding nastiness and dampness. It is widely used for measuring current, electric energy and protective relaying in the electrical system with the rated frequency 50- 60Hz and highest voltage for equipment 36kV .

Technical Data

  • Rated insulation level: 36/70/170kV
  • Rated frequency: 50/60Hz
  • Installation site:  Indoor
  • Technical standard: IEC 60044-1 & (IEC61869-1&2)","sans-serif"'>kV .

Specification

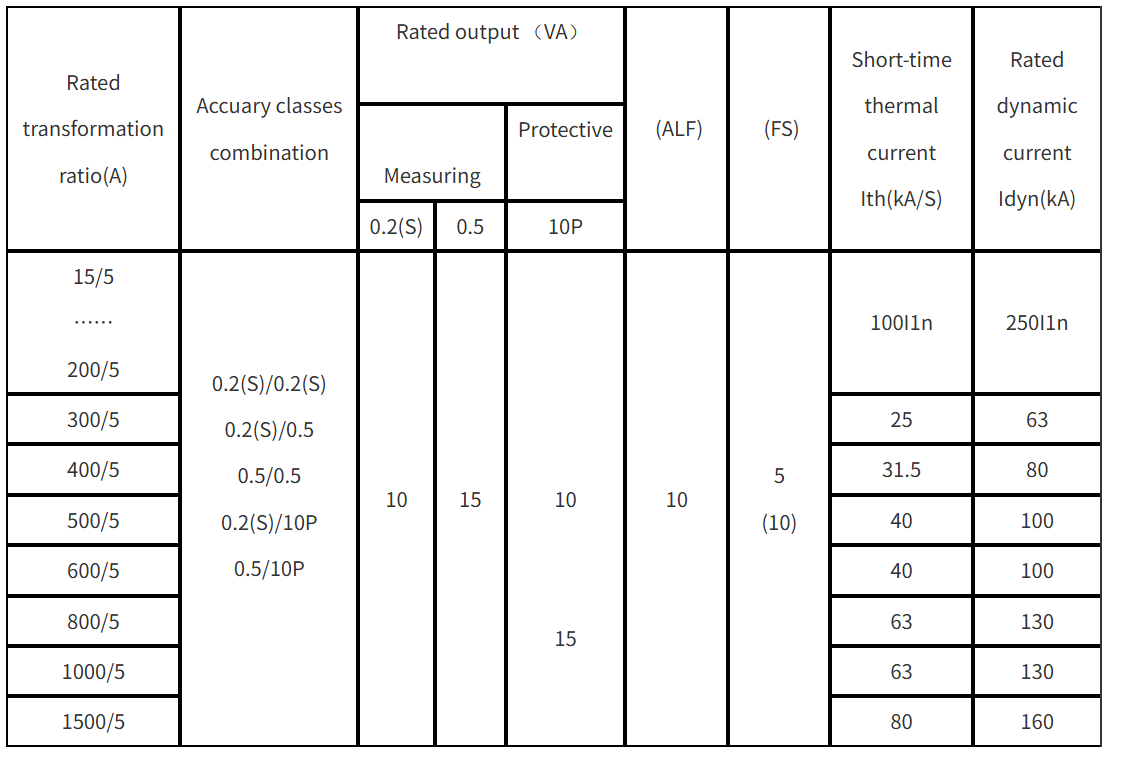

Two Secondary Single Ratio

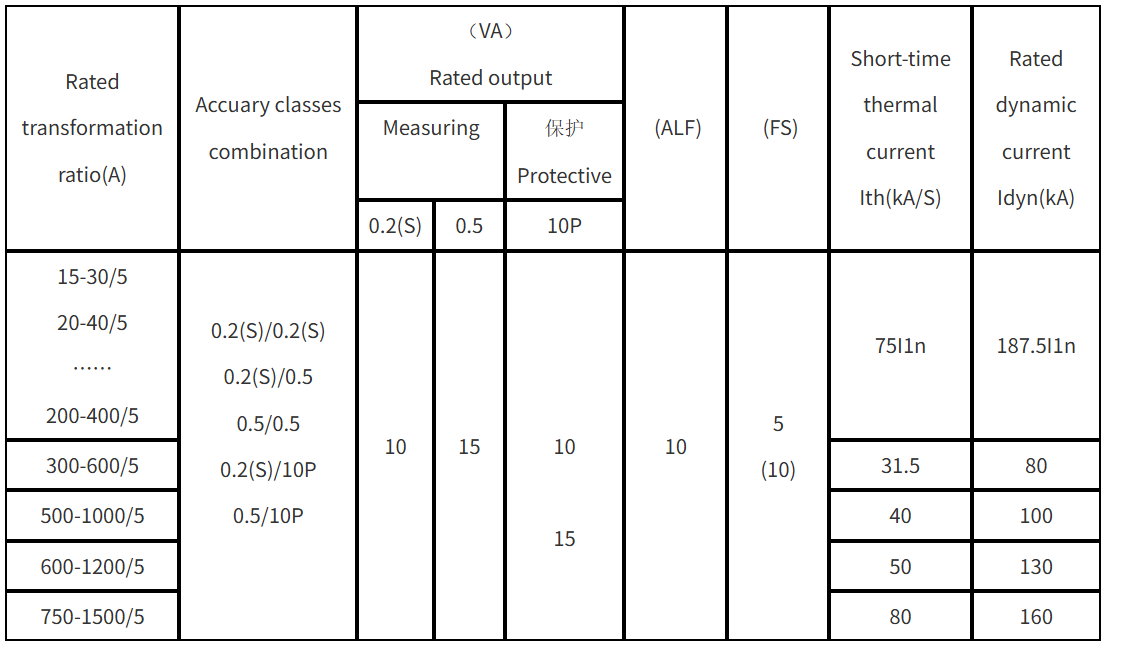

Two Secondary Double Ratio

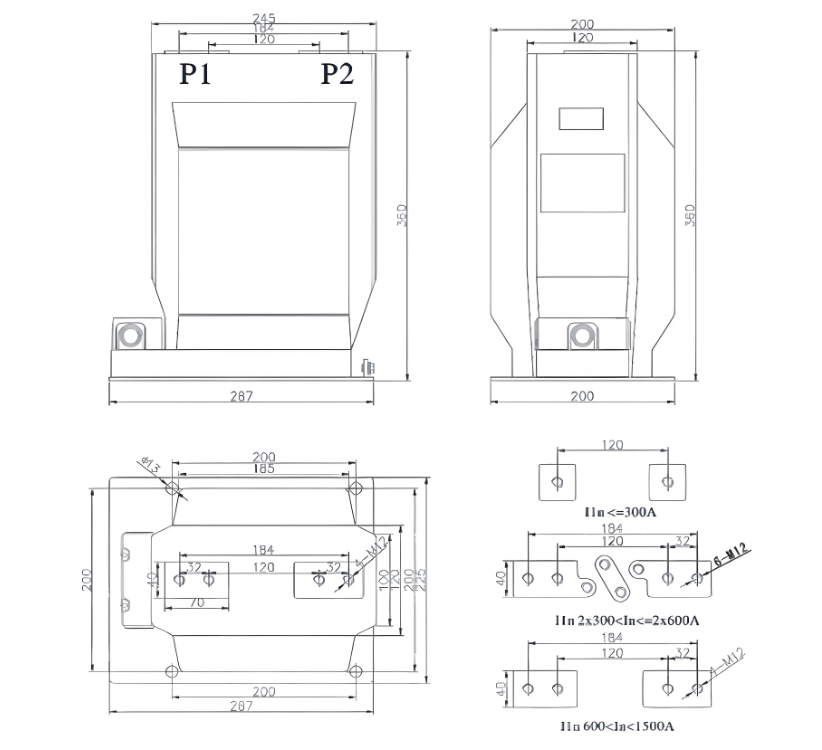

Outline
