LMZC-12 Indoor Low Voltage Current Transformer

Name: LMZC-12 Indoor Low Voltage Current Transformer
Brand: Yueqing HK Electrical Trading Co., Ltd.
SKU: 1555
Availability: InStock

Yueqing HK Electrical Trading Co., Ltd.

9yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	HK Electrical
Model NO.	LMZC-12 Indoor Low Voltage Current Transformer
Rated frequency	50/60Hz
Rated current ratio	600/5
Series	LMZC

Description

Product Overview

The current transformer adopts new type high permeability core with high accuracy, the secondary winding is enclosed in flame retardant plastic shell, the cable can pass from the hole, easy installation. It is used for measuring current, electricity power and relay protection in the AC line or rated frequency 50Hz or 60Hz, rated voltage 660V and below.

Feature

Enhanced Indoor Adaptability: Fully encapsulated in epoxy resin for dust/moisture resistance. Operates stably from -25°C to 40°C, ideal for switchgear and enclosed environments.
High Insulation Reliability: Withstands 12kV voltage and transient overvoltages. Partial discharge ≤10pC minimizes aging, extending safe operation lifespan.
Compact & Easy Installation: Space-efficient design supports integrated mounting. Standardized dimensions fit various fixing methods, saving installation space.
Low Maintenance Cost: Flexible connection options (cable/busbar), no complex debugging required. EMI-resistant for quick deployment and long-term stability.

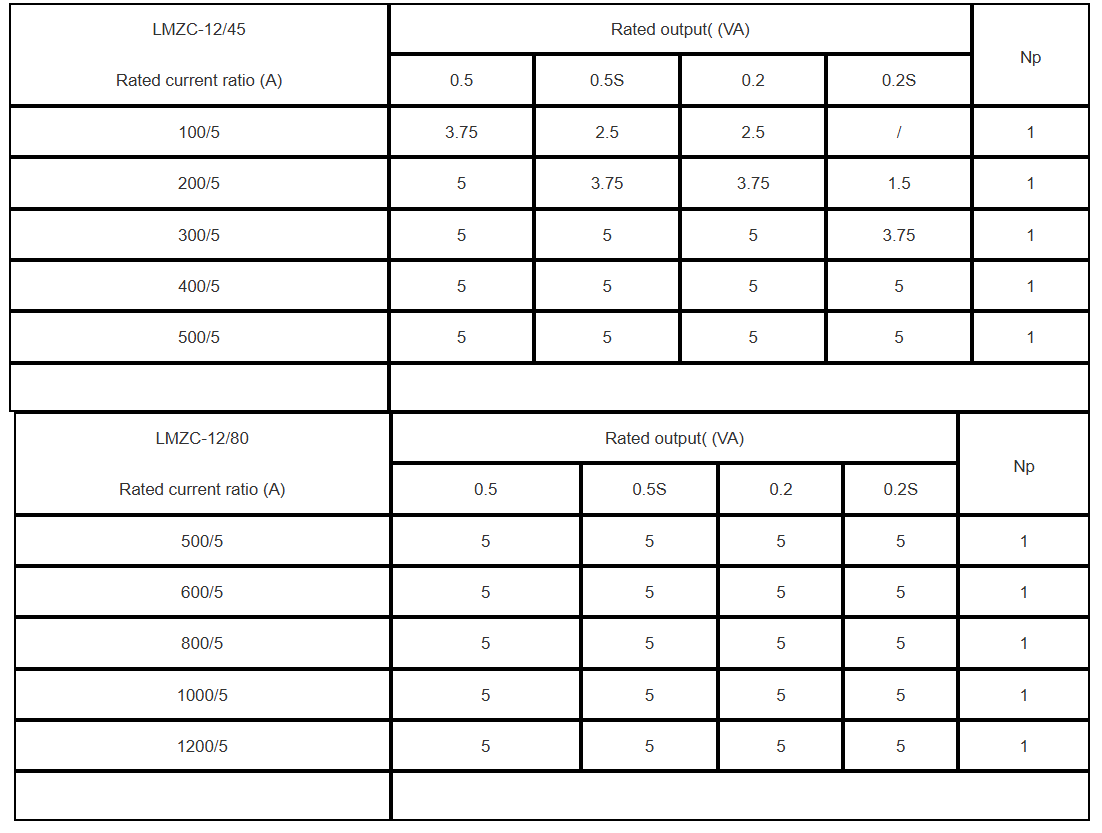

Technical Data

Rated insulation level: 0.72/3kV
Rated primary current: 100A~1200A
Rated secondary current: 5A or 1A
Standard IEC 61869-1:2007 and IEC 61869-2:2012. Or IEC60044-1

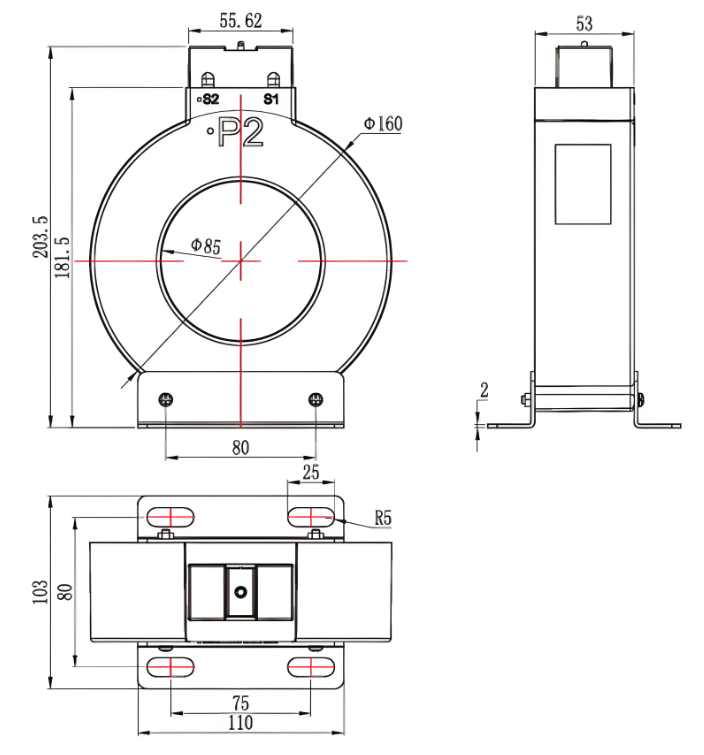

Outline drawing
