LMZBJ9-12X Current Transformer

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone Store
Model NO.	LMZBJ9-12X Current Transformer
Rated frequency	50/60Hz
Rated insulation voltage	12kV
Rated current ratio	1000
Series	LMZBJ

Product Detail

Product Overview

12kV Indoor Single-Phase Epoxy Resin Type Epoxy resin casting busbar type current transformer, is widely used for measuring current, electric energy and protective relaying in the electrical system with rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV. The product has three secondary windings (one measuring winding & two protective windings or two measuring windings &one protective winding). Rated primary current is 1000-5000A and rated secondary current is 5A/1A.

Technical Data

Rated insulation level: 12/28/75kV
Rated frequency: 50/60Hz
Installation site: Indoor
Technical standard: IEC 60044-1

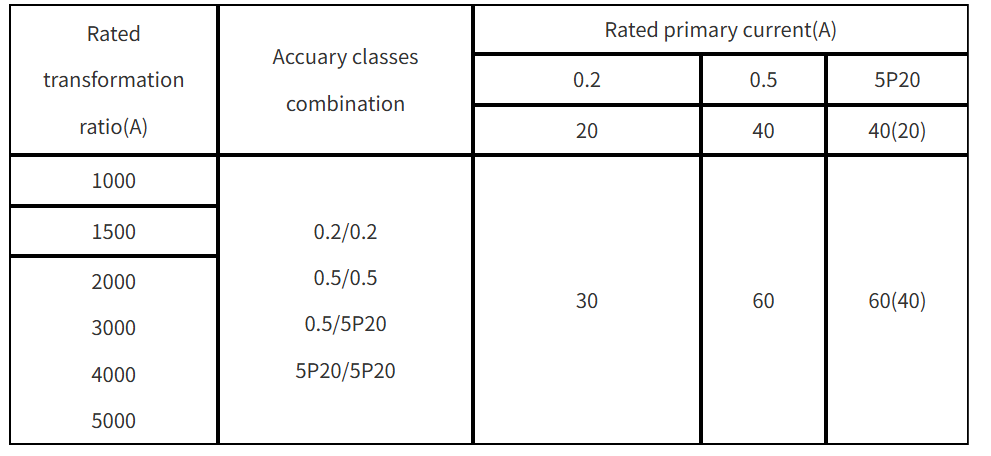

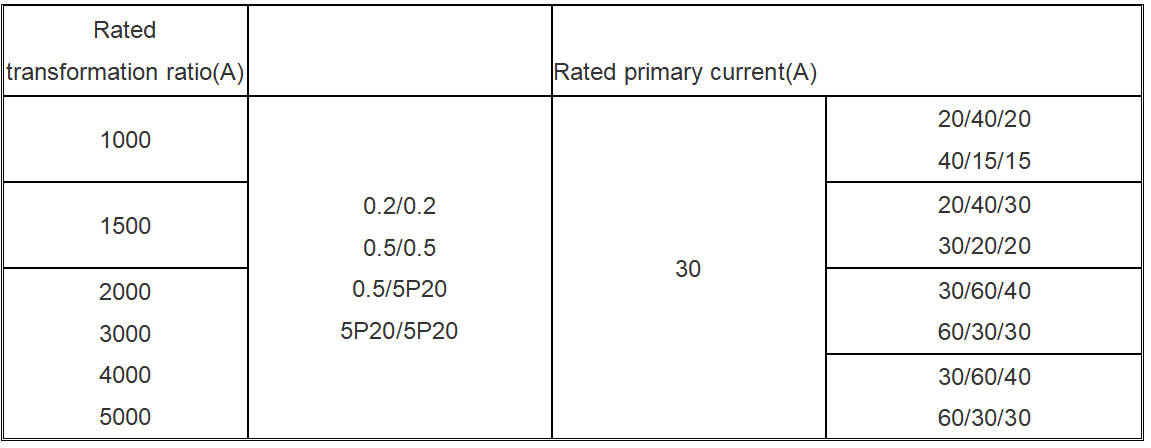

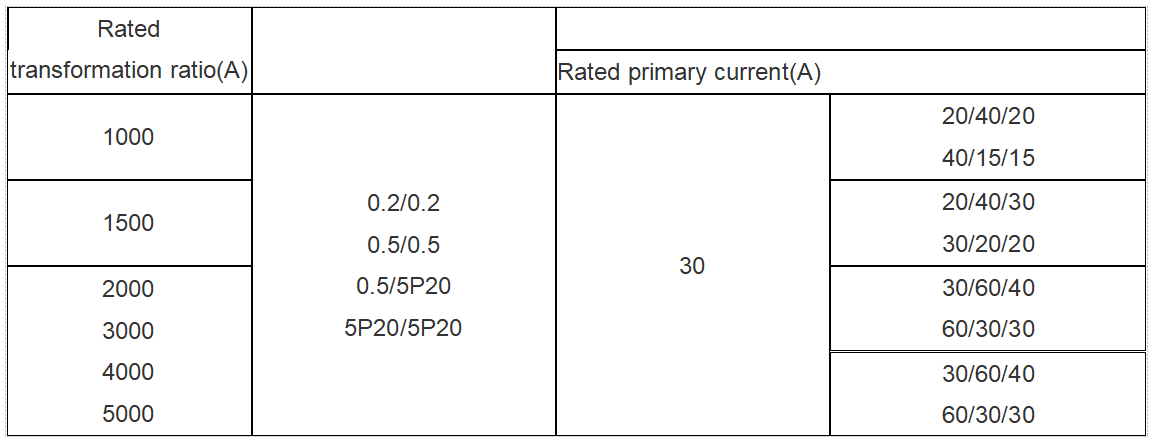

Specification

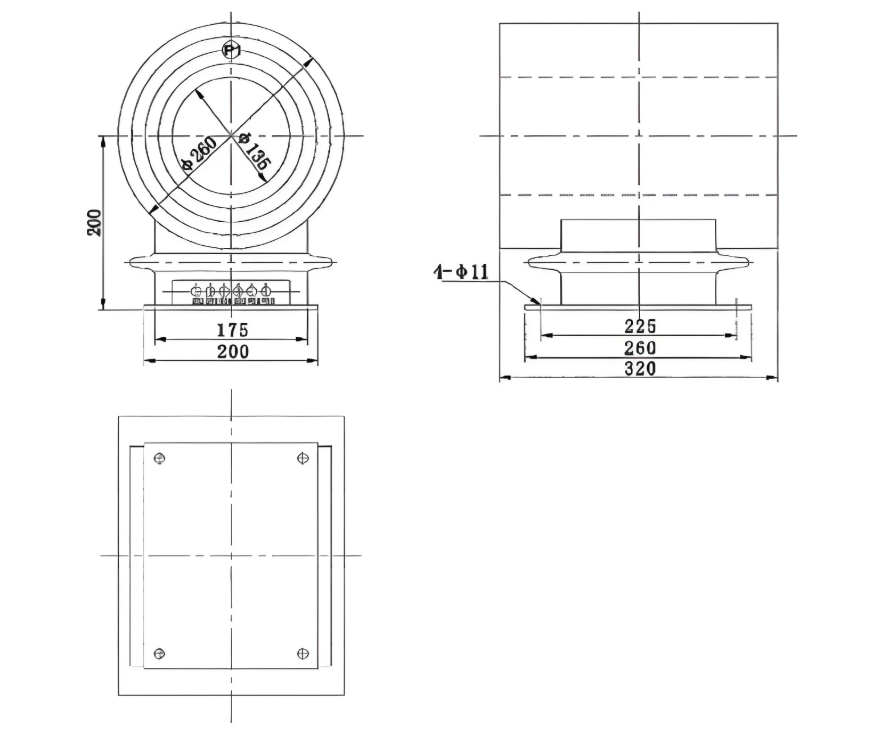

Outline
