  • LAJ1-12QII Current Transformer
LAJ1-12QII Current Transformer
discuss personally
Model
LAJ1-12QII
Basic info Product Detail Supplier
Basic info
Brand Wone Store
Model NO. LAJ1-12QII Current Transformer
Rated frequency 50/60Hz
Rated insulation voltage 12kV
Rated current ratio 800/5
Series LAJ
Product Detail

Product Overview

LAJ1-12QⅡCurrent Transformer 12kV Indoor Single-Phase Epoxy Resin Type Epoxy resin casting insulation and fully enclosed support construction, encloses primary & secondary windings and annular core in the epoxy resin casting body. The product has the feature of light weight, omni-directional installation,withstanding nastiness and dampness. It is widely used for measuring current, electric energy and protective relaying in the electrical system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV.

Feature

  • Precision Measurement & Reliable Protection

Utilizes premium-grade iron core and winding structure for high-accuracy metering, achieving a stable 0.2(S) class precision in energy measurement.Features rapid response protection capabilities, detecting abnormal current fluctuations and triggering protective mechanisms instantly during overloads or short circuits to safeguard the power system.

  • Exceptional Insulation Performance

Employs epoxy resin casting insulation technology to encapsulate primary/secondary windings and the toroidal core within a fully enclosed structure.This design effectively shields internal components from environmental ，enhances dielectric strength, and withstands up to 12kV rated voltage for reliable operation in complex indoor electrical environments.

  • Lightweight & Flexible Installation

Compact and lightweight design reduces manual handling effort during installation.Omnidirectional mounting capability allows horizontal, vertical, or angled installations, adapting seamlessly to diverse indoor spatial layouts and simplifying deployment.

  • Moisture Resistance & Durability

Engineered for high humidity tolerance, preventing insulation degradation and short circuits caused by moisture ingress.Ensures long-term stability in humid environments, extending service life and minimizing maintenance requirements.

Technical Data

  • Rated insulation level: 12/28/75kV
  • Rated frequency: 50/60Hz
  • Installation site:  Indoor
  • Technical standard: IEC 60044-1

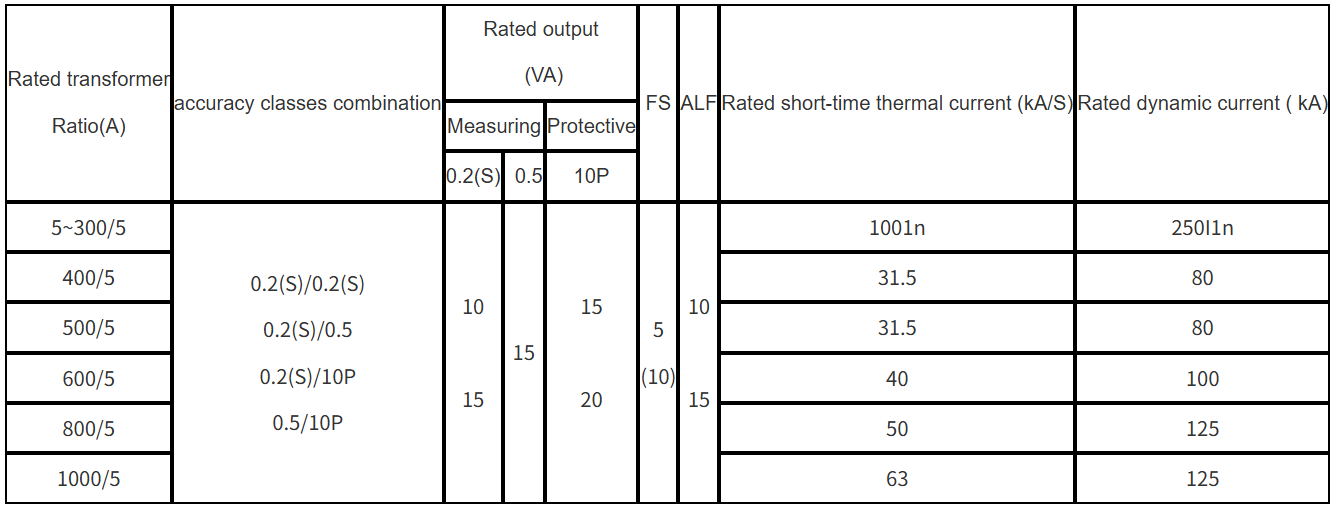

Specification

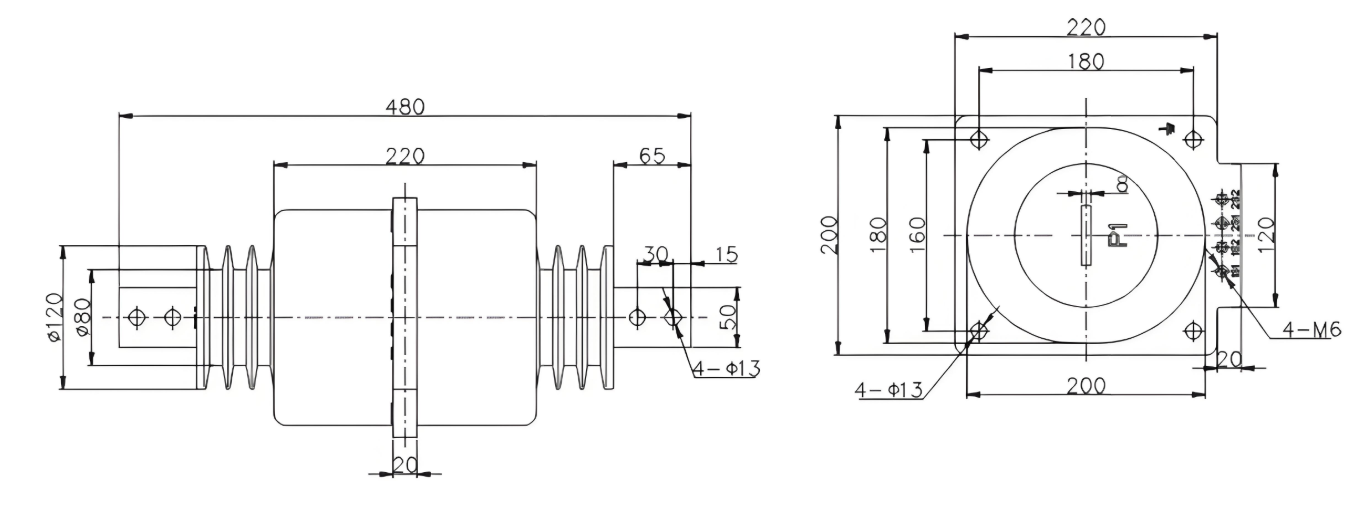

Outline
