JDZ-36 36kV Indoor voltage transformer

Product Overview

36kV Indoor Single-Phase Epoxy Resin Type Epoxy resin casting and double pole insulated VT, is widely used for measuring  , electric energy and protective relaying in the isolated neutral system with the frequency 50Hz or 60Hz and insulation voltage 36 kV (Up to 40.5kV).The iron core adopts advanced cold-rolled silicon steel sheet. High voltage outgoing line of primary winding was fetched out from top of the product; outgoing line of secondary winding was fetched out from transverse side of the product.

Feature

• Precise Voltage Measurement: Features high-precision core and winding design with 0.2-class accuracy, stably and accurately converting 36kV high voltage to low-voltage signals, meeting strict requirements for energy metering and monitoring.

• Indoor Environment Adaptation: Specifically designed for 36kV indoor substations, with a compact structure that occupies little space. Adapts to enclosed indoor electrical environments, avoiding external interference for stable operation.

• Reliable Insulation Performance: Uses epoxy resin casting insulation technology to fully encapsulate primary/secondary windings and core, ensuring high insulation strength. Withstands 36kV rated voltage, excelling in anti-corona and partial discharge resistance.

• Convenient & Efficient Installation: Complies with standardized dimensions, supporting multiple mounting methods (wall-mounted, bracket-fixed). Requires no complex debugging, enabling quick integration into existing power distribution systems to reduce installation costs.

• Stable Operation Guarantee: Boasts strong anti-electromagnetic interference capability, maintaining stable output during voltage fluctuations and load changes. Extends service life and reduces maintenance frequency.

Technical Data

• Installation site : indoor

• Rated frequency:50/60Hz

• Load power factor: cosΦ=0.8 （lagging）

• Technical standard accords with   IEC 60044-2 (IEC 61869-1&3)

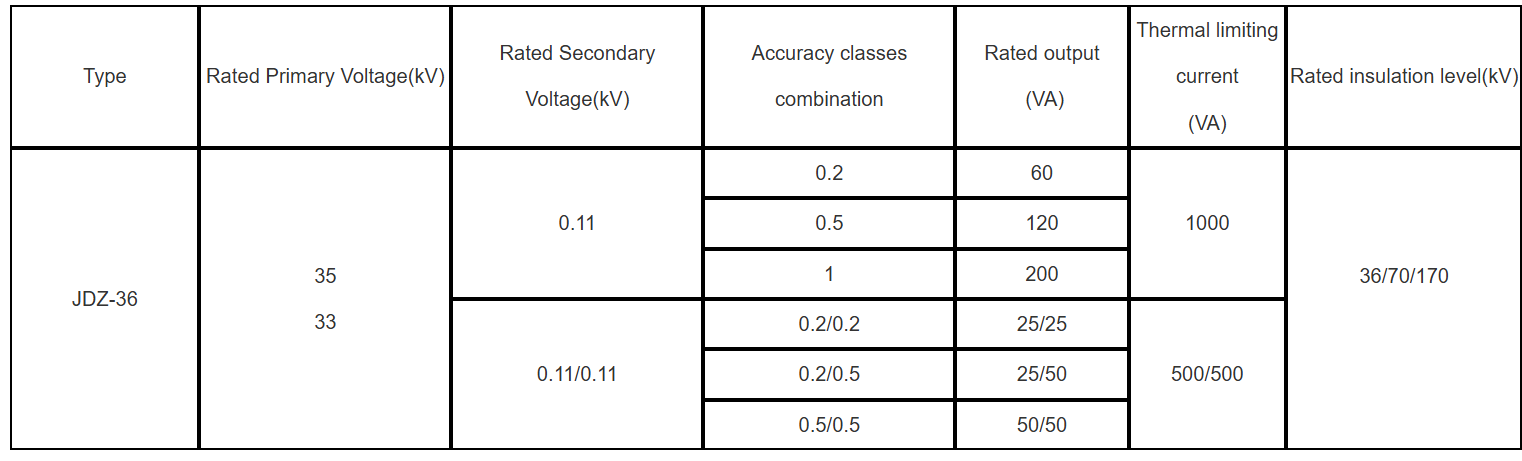

Specification

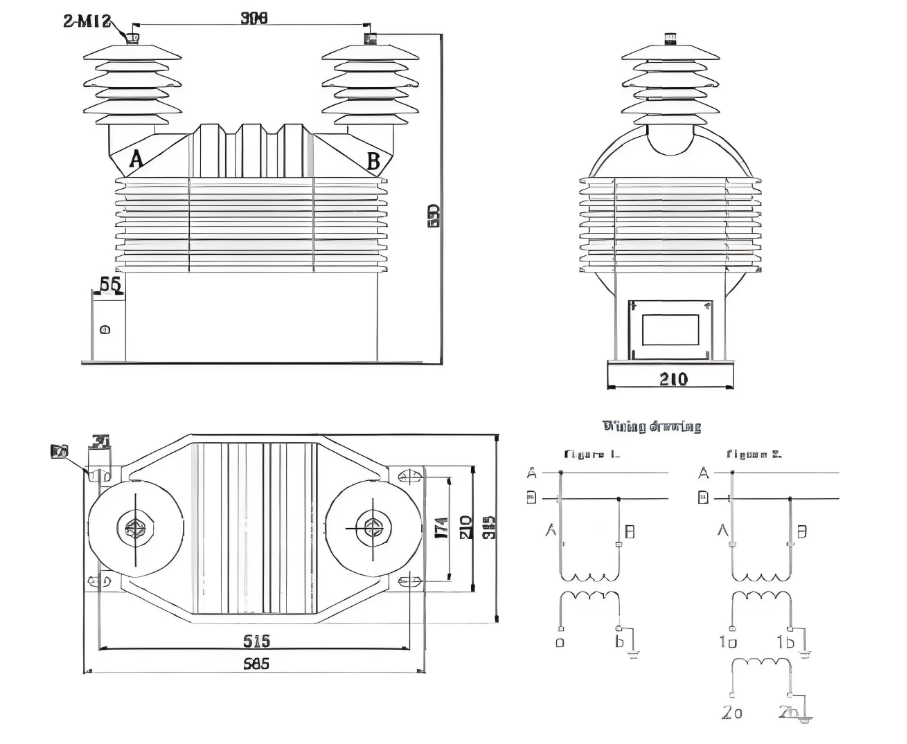

Outline
