Isolating Switch DNH8(HGL)/H Series Operation Behind the Cabinet – Load Disconnector

discuss personally

Model

DNH8 (HGL) -1600/4JH

DNH8 (HGL) -1600/3JH

DNH8 (HGL) -1250/4JH

DNH8 (HGL) -1250/3JH

DNH8 (HGL) -1000/4JH

DNH8 (HGL) -1000/3JH

DNH8 (HGL) -630/4JH

DNH8 (HGL) -630/3JH

DNH8 (HGL) -500/4JH

DNH8 (HGL) -500/3JH

DNH8 (HGL) -400/4JH

DNH8 (HGL) -400/3JH

DNH8 (HGL) -315/4JH

DNH8 (HGL) -315/3JH

DNH8 (HGL) -250/4JH

DNH8 (HGL) -250/3JH

DNH8 (HGL) -200/4JH

DNH8 (HGL) -200/3JH

DNH8 (HGL) -160/4JH

DNH8 (HGL) -160/3JH

DNH8 (HGL) -125/4JH

DNH8 (HGL) -125/3JH

Basic info Product Detail Supplier

Basic info

Brand	Switchgear parts
Model NO.	Isolating Switch DNH8(HGL)/H Series Operation Behind the Cabinet – Load Disconnector
Rated normal current	1600A
number of poles	4p
Series	DNH8(HGL)/H

Product Detail

Isolating Switches with a current capacity of 160 to 1600 Amperes are suitable for use in circuits for making and breaking connections, as well as for electrical isolation. Switches with a rated current of 1000 Amperes or more are only to be used for electrical isolation. Three-pole and four-pole (3+1) switches are available.

Switches rated 1600 Amperes or less are available with an observation window, through which the state of the contacts (open or closed) can be directly observed.

Auxiliary contacts can be fitted if required.

Note: This Isolating Switch product only provides operation outside the cabinet

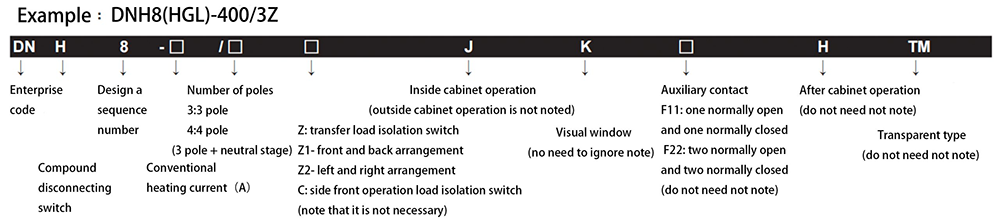

Order model: DNH8 (HGL) -630/3JH

If a visual observation window is required, the Isolating Switch order model is DNH8 (HGL) -630/3JKH

Outline and Installation Dimension (mm)

Isolating Switch -2

Specifications	Overall dimension												Installation dimension
In	A	B	C	D	D1	N	P	R	U	φX	F	H	J	K	L1
125A/3	140	135	17	15	93	75	36	20	115	9	50	10	120	95	7
125A/4	170	135	17	15	93	75	36	20	115	9	50	10	150	95	7
160A/3	140	135	17	15	93	75	36	20	115	9	50	10	120	95	7
160A/4	170	135	17	15	93	75	36	20	115	9	50	10	150	95	7
200A/3	180	170	18	20	104	105	50	25	140	11	79	15	160	115	9
200A/4	230	170	18	20	104	105	50	25	140	11	79	15	210	115	9
250A/3	180	170	18	20	104	105	50	25	140	11	79	15	160	115	9
250A/4	230	170	18	20	104	105	50	25	140	11	79	15	210	115	9
315A/3	230	240	20	30	137	135	65	32	206	11	95	20	210	135	11
315A/4	290	240	20	30	137	135	65	32	206	11	95	20	270	135	11
400A/3	230	240	20	30	137	135	65	32	206	11	95	20	210	135	11
400A/4	290	240	20	30	137	135	65	32	206	11	95	20	270	135	11
500A/3	230	260	20	30	137	135	65	40	220	13	95	20	210	135	11
500A/4	290	260	20	30	137	135	65	40	220	13	95	20	270	135	11
630A/3	230	260	20	30	137	135	65	40	220	13	95	20	210	135	11
630A/4	290	260	20	30	137	135	65	40	220	13	95	20	270	135	11

Isolating Switch -3

Specifications	Overall dimension									Installation dimension
In	A	B	N	P	R	V	W	X	Y	J	K
1000A/3	378	308	174	120	60	35	20	16.5	49	350	220
1000A/4	493	310	235	120	60	35	20	16.5	48	471	220
1250A/3	378	336	174	120	80	40	35	16	49	350	220
1250A/4	493	338	235	120	80	40	35	16	48	471	220
1600A/3	378	336	174	120	80	40	35	16	50	350	220
1600A/4	493	338	235	120	80	40	35	16	49	471	220

Know your supplier

Switchgear parts

VoltEdge Solutions specializes in manufacturing premium MV switchgear accessories for global power distribution systems. Our product range includes circuit breaker modules, disconnector spares, and surge arrestors, engineered for 24kV+ substations and renewable energy plants. With ISO-certified production and 24/7 technical support, we ensure reliability, compliance with IEC standards, and rapid global supply.
