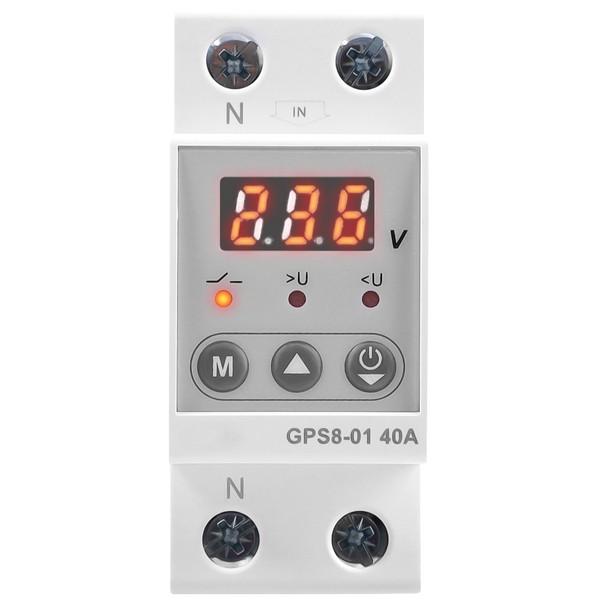

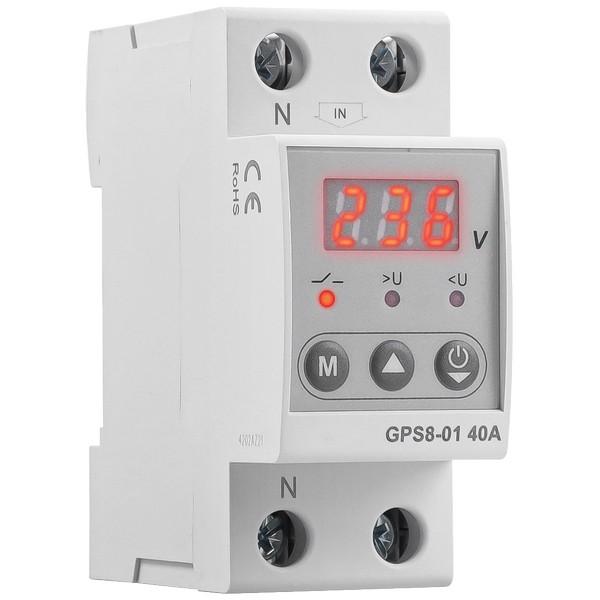

GPS8-01 Voltage Protector with Over and Under Voltage Funtion

The GPS8-01 Voltage Protector is specifically designed for household and basic industrial equipment, offering precise over-voltage and under-voltage protection. It supports a wide input voltage range from 80V to 400V, effectively addressing power grid fluctuations. With features such as low power consumption, self-resetting capability, and dual-bus wiring design, it ensures long-term stable operation and rapid fault recovery. Its compact DIN rail mounting and wide temperature adaptability from -20°C to +60°C make it especially suitable for applications like household appliances and small-scale power distribution systems—scenarios that do not require overcurrent protection but are sensitive to voltage anomalies. The GPS8-01 provides a cost-effective solution to ensure basic electrical safety.

GPS8-01 Self resetting Digital Voltage Protector Product Features:
1. High precision true effective value measurement
Using True RMS voltage sampling technology to accurately capture the actual voltage values under complex waveforms,
Prevent protection failure caused by misjudgment.
2. Full parameter programmable protection
Users can set overvoltage/undervoltage trigger thresholds (such as 170V-280V range), overcurrent values, and self reset delays (0-999 seconds) to adapt to different regional power grid characteristics and equipment requirements.
3. Strengthen electrical connection performance
Innovative dual busbar structure design provides stronger wiring carrying capacity and heat dissipation performance, ensuring long-term stable operation in high current scenarios.
4. Intelligent fault management mechanism
Equipped with self starting function, it automatically delays resetting after the voltage returns to normal, reducing manual intervention; The red green dual color LED provides real-time indication of operational/fault status, allowing for quick problem localization.
5. Industrial grade human-computer interaction
High brightness digital tube displays real-time voltage values clearly, paired with status indicator lights, achieving dual dimensional monitoring of "numerical+graphical"
6. Convenient integrated deployment
Standard 35mm guide rail installation design, seamlessly compatible with various distribution cabinets/boxes, greatly simplifying the construction process.

Technical parameters：
