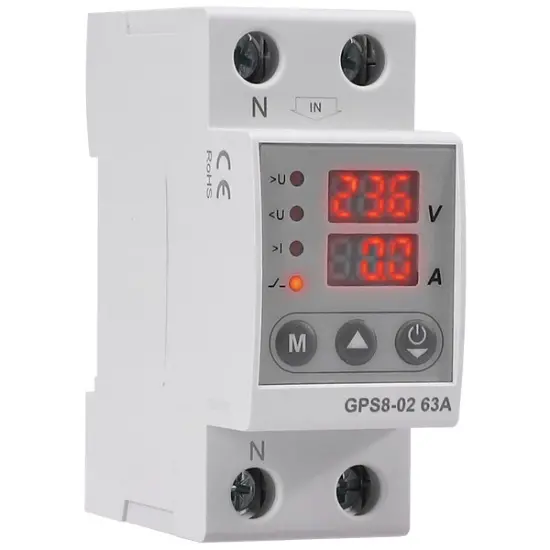

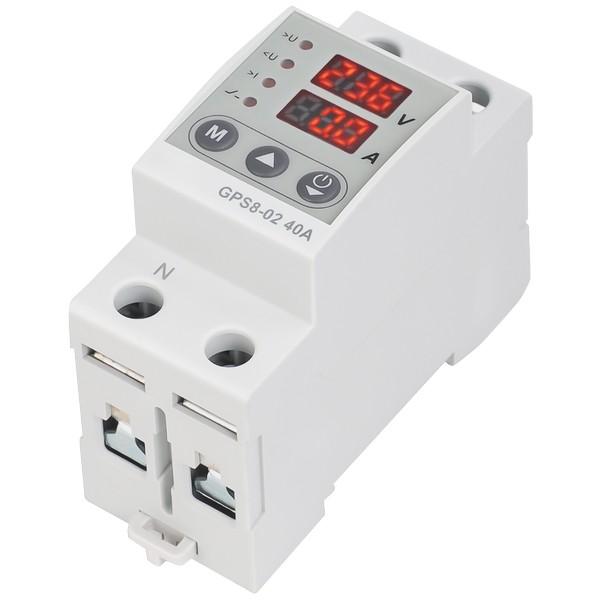

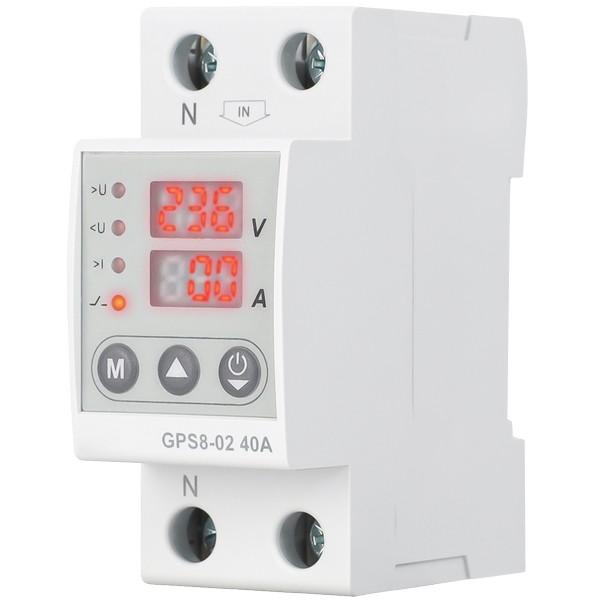

GPS8-02 Over Voltage Protector with Over voltage, Under Voltage and Over Current Functions

  • GPS8-02 Over Voltage Protector with Over voltage, Under Voltage and Over Current Functions
  • GPS8-02 Over Voltage Protector with Over voltage, Under Voltage and Over Current Functions
  • GPS8-02 Over Voltage Protector with Over voltage, Under Voltage and Over Current Functions
  • GPS8-02 Over Voltage Protector with Over voltage, Under Voltage and Over Current Functions

Key attributes

Brand Switchgear parts
Model NO. GPS8-02 Over Voltage Protector with Over voltage, Under Voltage and Over Current Functions
Rated voltage AC220V
Rated normal current 32A
Rated frequency 45Hz-65Hz

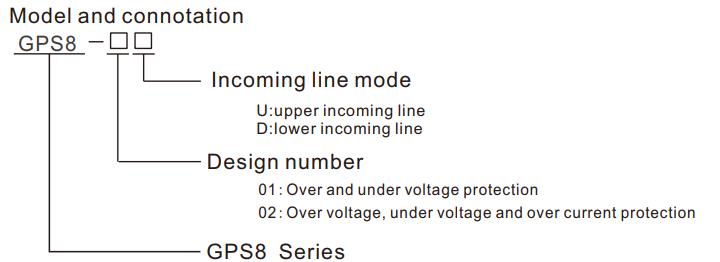

Series GPS8-02

Product descriptions from the supplier

Description

The GPS8-02 Over Voltage Protector is designed for industrial and high-load complex environments. Building on over-voltage and under-voltage protection, it adds an adjustable overcurrent protection feature, delivering comprehensive triple protection for voltage and current. Its flexible overcurrent settings precisely accommodate the dynamic load requirements of equipment such as motors and inverters. Combined with wide voltage input, dual-bus design, and a self-reset mechanism, the GPS8-02 ensures stable performance even in harsh environments ranging from -20°C to +60°C. With its compact size and DIN rail mounting, it is an ideal choice for high-security applications such as industrial production lines and data centers, offering full protection against risks like circuit overloads and short circuits to safeguard system continuity and extend equipment lifespan.

Technical parameters:

Model GPS8-02 Over Voltage Protector
Function Over voltage, under voltage and over current
Rated supply voltage AC220V(L-N)
Rated supply frequency 45~65HZ
Operation voltage range 80V~400V(L-N)
Rated operational current 32A,40A,50A,63A,80A(AC1)
Burden AC max.3VA
Over voltage operation value OFF,230V~300V
Under voltage operation value 140V~210V,OFF

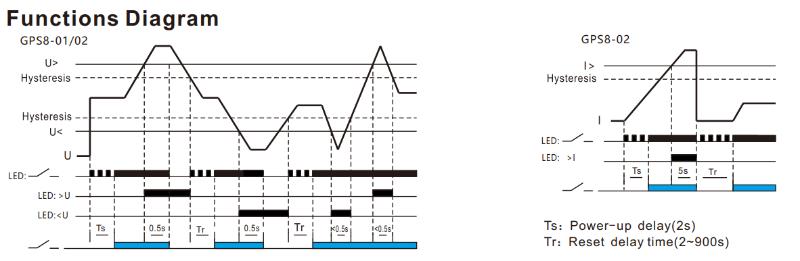

Over/under voltage action delay 0.1s~10s
Over current operation value 1~32A,40A,50A,63A,80A
Over current action delay 2s~600s
Power-up delay 2s~600s
Reset time 2s~900s
Measurement error ≤1%
Electrical life(AC1) 1*104
Mechanical life 1*106
Operating temperature -20℃ ~ +60℃
Storage temperature -35℃ ~ +75℃

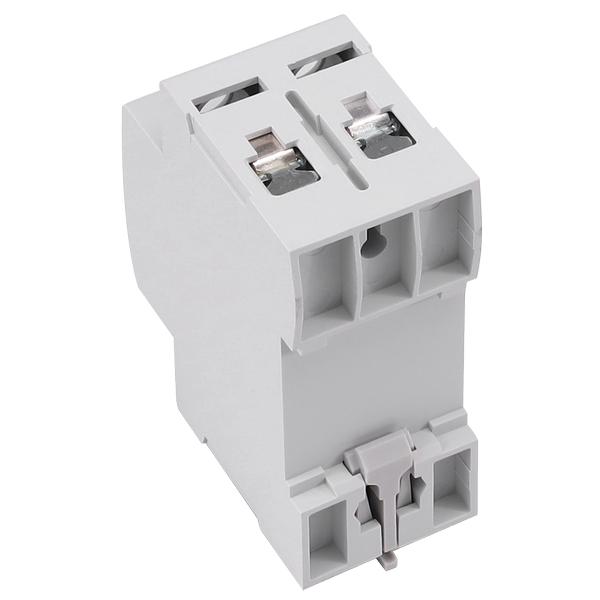

Mounting/DIN rail Din rail EN/IEC 60715
Protection degree IP40 for front panel/IP20 terminals
Operating position any
Overvoltage category
Pollution degree 2

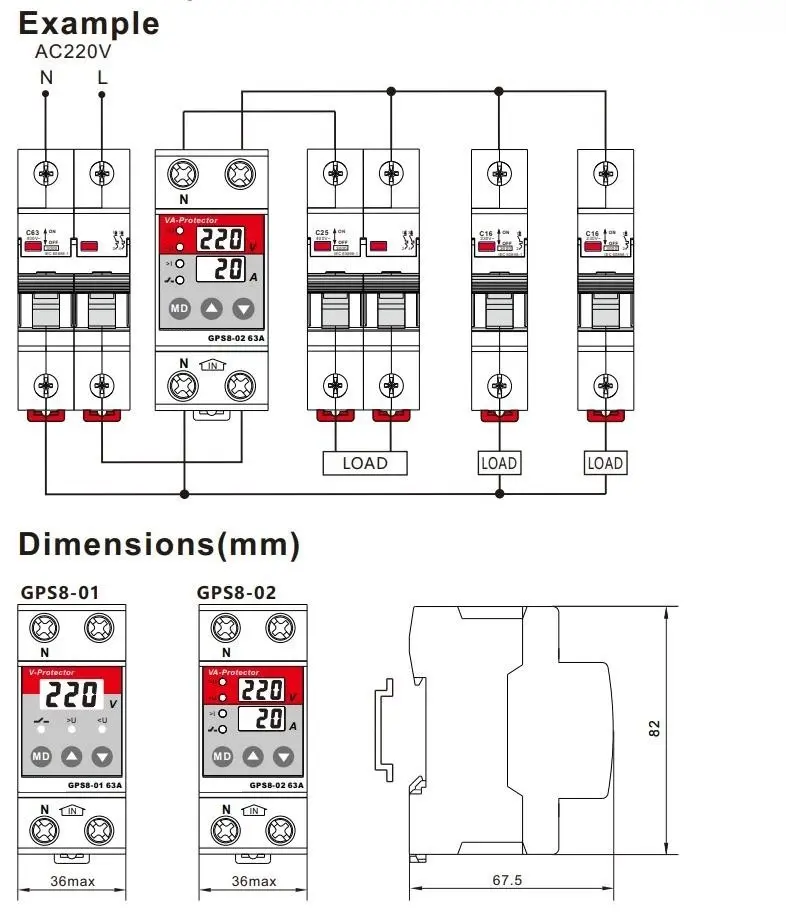

Dimensions 82×36×68mm
weight 135g
