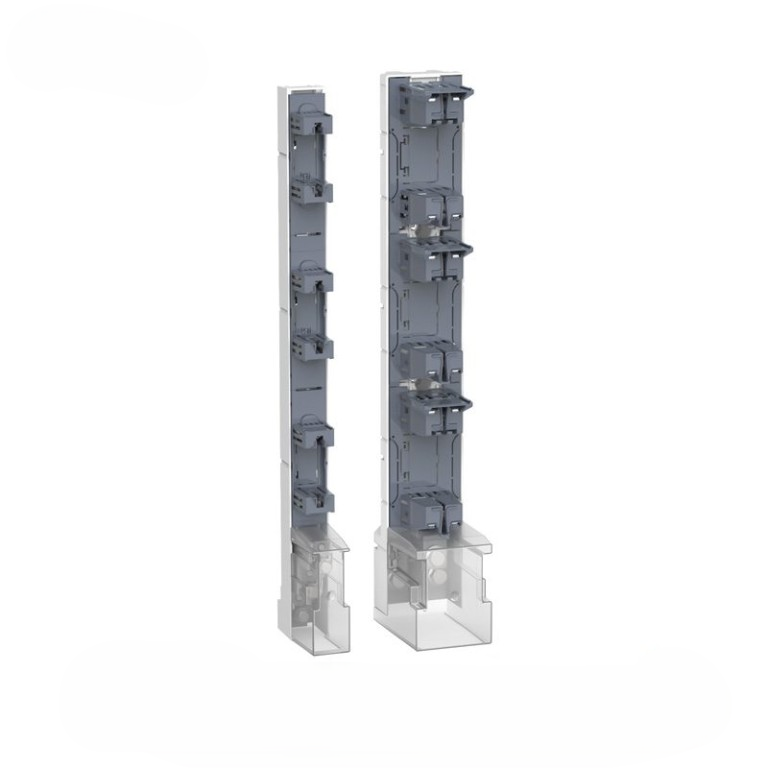

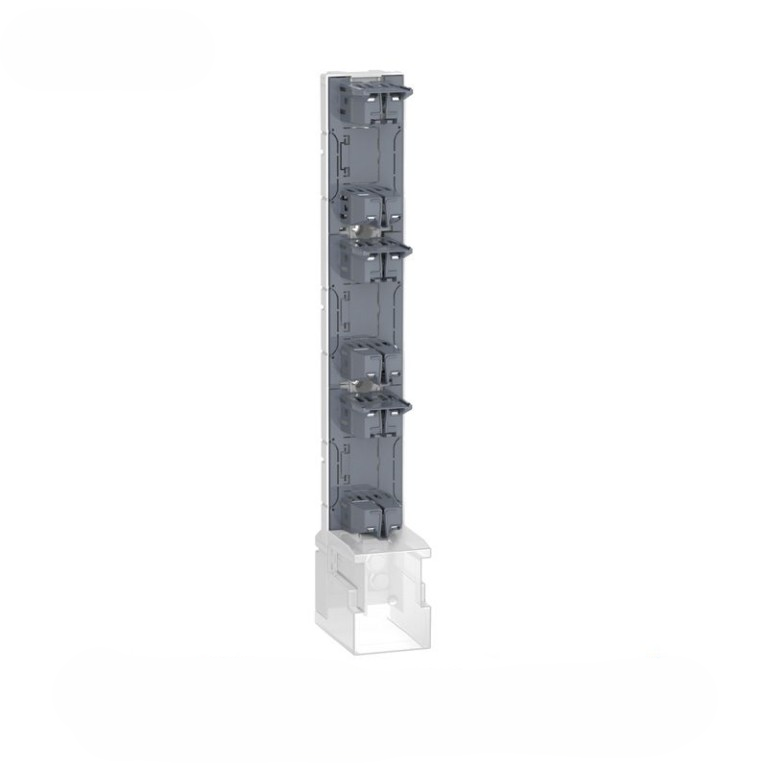

DNTRS Vertical Fuse Rail
Key attributes
| Brand | Switchgear parts |
| Model NO. | DNTRS Vertical Fuse Rail |
| Rated voltage | AC 400V/AC 690V |
| Rated normal current | 100-630A |
| Rated frequency | 50/60Hz |
| Series | DNTRS |
Product descriptions from the supplier
What is DNTRS Vertical Fuse Rail?
DNTRS vertical fuse rails feature unique process engineering. realizes the integration of current transformer and fuse switch. The knife-edge wire entry and arc extinguishing device are used to ensure operator safety.
ertical fuse rails have the following options:
Optional isolation blade. All-round protection of the fuse core.
A fuse monitor and signal switch can be installed, with a self-closing fuse monitoring hole.
It can be used as a primary switch. The instantaneous breaking capacity can reach 100kA.
The running capacity with load reaches 1.3 times of the rated current
100MM or 185MM busbar installation
The conjoined type can be a three-phase closed-offed simultaneously. The split type can be operated independently.
Operation safely. While the fuse is installed in the handle, it can be used directly as a contact blade.
It’s beautiful and practical. The whole switch can be disassembled easily and installed in the cabinet quickly.
Reduce wiring and facilitate increased loop and cabinet utilization.
Plexiglas base. Flame retardant grade, enclosure protection grade up to IP30.
The latest product has the highest usage in the market.
The instantaneous breaking force can reach 100kA.
The operating capacity with load can reach 1.3 times the rated current.
Can be used with fuse monitors, signal switches, and remote control modules.
Suitable for multiple NH series fuse exclusive cabinets and general low-voltage distribution cabinets, with specific information as follows: GGD low-voltage fixed switchgear, MNS pull-out low-voltage switchgear, Schneider compatible ISFT630 specification cabinet, XL-21 low-voltage power cabinet
DNTRS Vertical Fuse Rail Parameters
| Product Item | DNTRS |
| Rated Current | 100A-630A |
| Rated Voltage | AC 400VAC/690V |
| Applications | Industrial Control Cabinets |
| Fuse Sizes | NH00, NH1, NH2, NH3 |
| Rated Frequency | 50/60Hz |
| Rated Insulation Voltage(Ui) | 1000V |
| Rated Impulse Withstand Voltage(Uimp) | 10kV |
| The Default Connection Mode | V-clamp |
| The Other Connection Mode | Screw & Cable Lug |
| Installation of Busbar |
|
| Fixed Way |
|
