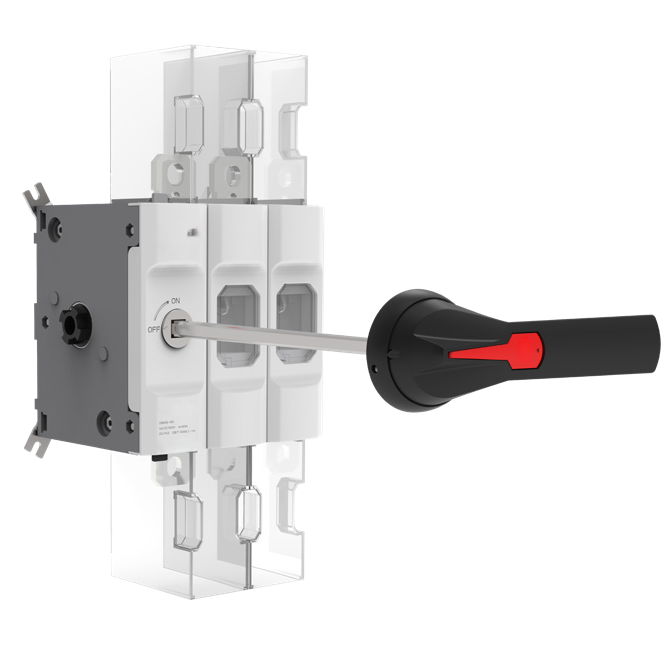

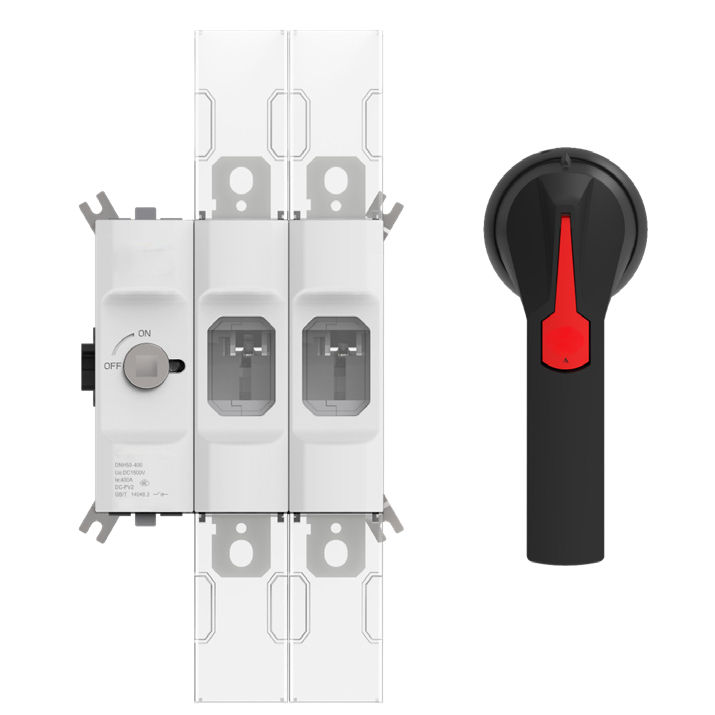

DNH50-400~630A DC isolation switch
discuss personally
Model
DNH50-630A
DNH50-500A
DNH50-400A
DNH50-320A
DNH50-315A
DNH50-275A
DNH50-250A
DNH50-225A
DNH50-200A
DNH50-160A
DNH50-125A
DNH50-100A
DNH50-80A
Basic info
Brand Switchgear parts
Model NO. DNH50-400~630A DC isolation switch
Rated normal current 630A
Series DNH50
Product Detail

DNH50 series disconnectors are suitable for low voltage distribution networks with DC2000V, 630A or below. They are used for infrequent connect/disconnect of the main circuit, and for isolating the circuit. They are widely used in solar photovoltaic, energy storage system (ESS) and DC equipment systems. Standards: GB/T 14048.1、GB/T 14048.3;IEC 60947-1、IEC 60947-3 standards.

When placing an order, the user should provide the following information:
1. Product name, model, specifications, and quantity;
2. If there are special installation conditions or special places to use
Provide corresponding technical information or negotiate with our company.

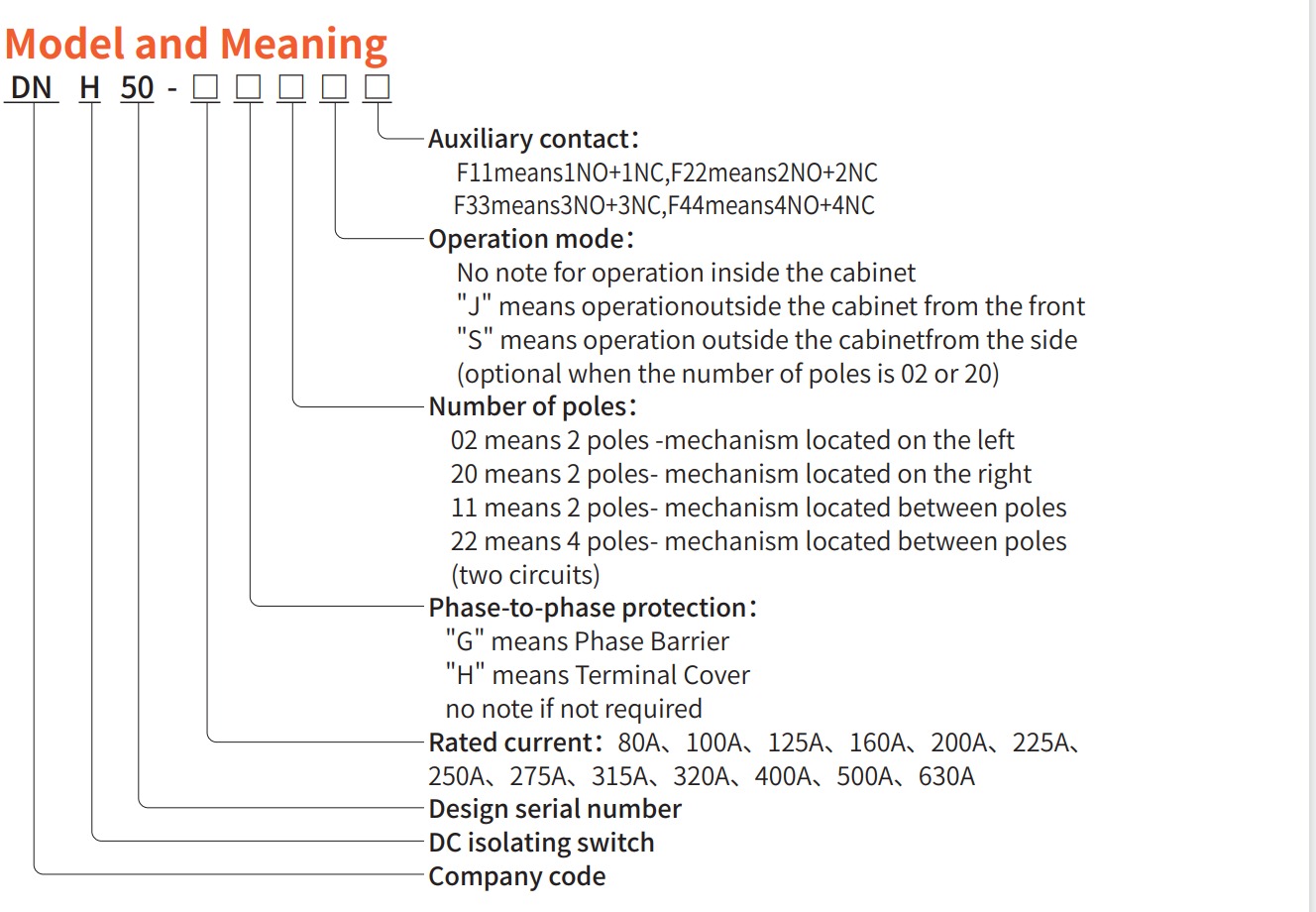

Example: DNH50-400H02JF11
DC isolation switch, rated current 400A, with terminals
Shield, two poles - mechanism located on the left, operated outside the cabinet, auxiliary
Auxiliary contacts: one normally open and one normally closed, 10 units.
