Thermal power remains vital in the global energy mix, yet traditional systems face challenges of high energy consumption and emissions, requiring innovation for greener operations. High-voltage inverters, by regulating motor speed, offer an effective solution for energy efficiency and emission reduction in power plants.1 Overview of High-Voltage InvertersHigh-voltage inverters control high-voltage motors and transformers by adjusting frequency, enabling energy savings, improved efficiency, and e

High-voltage inverters are critical devices for AC motor speed control and are widely used in high-power, high-voltage motor speed regulation applications in industries such as lifting, metallurgy, oil, and power generation. However, 6kV high-voltage inverters often experience abnormal drive tripping faults during operation due to factors like grid fluctuations and load impacts, significantly affecting the safety and reliability of motor speed control systems.To ensure stable operation of high-v

1 Basic Structure and Operating Mechanism of High-Voltage Inverters1.1 Module CompositionRectifier Module: This module converts the input high-voltage AC power into DC power. The rectification section mainly consists of thyristors, diodes, or other power semiconductor devices to achieve the conversion from AC to DC. Additionally, through a control unit, voltage regulation and power compensation within a certain range can be realized.DC Filter Module: The rectified DC power is processed by a filt

In modern industrial applications, inverters play a crucial role as key components of electrical drive systems. They enable precise speed control and effectively reduce energy consumption, thereby enhancing the overall efficiency and reliability of the system. This article focuses on the performance evaluation and optimization of inverters in test bench design.As experimental platforms that simulate real-world operating conditions, test benches impose higher performance demands on inverters. The

As the core of industrial production, electrical automation systems directly influence overall production costs and environmental impact. Traditional constant-speed operation often leads to energy waste when responding to varying load demands and makes precise process control difficult to achieve. Variable frequency speed regulation technology, as an advanced motor control method, offers a promising solution to these issues. This study takes the electrical automation system of a power plant as a

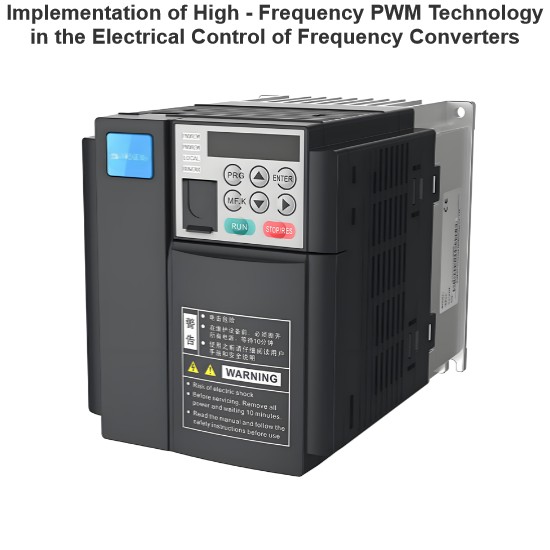

As the demand for precise control in industrial processes continues to rise, traditional Pulse-Width Modulation (PWM) technology struggles to meet the requirements for high dynamic performance and low harmonic distortion. In contrast, high-frequency PWM technology enhances output waveform quality and reduces system harmonics by increasing the carrier frequency, thereby optimizing the performance of inverters. Consequently, balancing system efficiency and reliability when applying high-frequency

What is Variable Frequency Drive?Variable Frequency Drive DefinitionA variable frequency drive is a device that regulates the speed and torque of an AC motor by altering the frequency and voltage of its power supply.Core ComponentsA VFD consists of a rectifier to convert AC power to DC, a capacitor to stabilize this DC power, and an inverter to convert the DC back to AC with variable frequency.Operational MechanismA variable frequency drive works by changing the frequency and voltage of the powe
