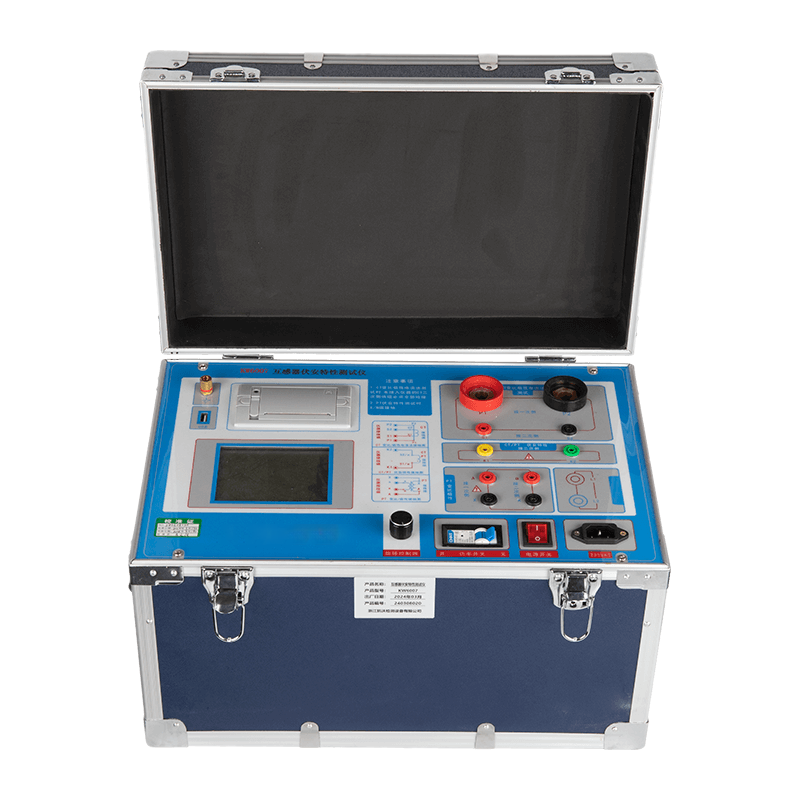

Volt - Ampere characteristic tester
Zhejiang Wone IT Service Co., Ltd.
1yrs +
staff 1000+m² US$300000000+
Key attributes
| Brand | Wone Store |
| Model NO. | KW6007 Series Volt - Ampere characteristic tester |
| Rated voltage | 220V |
| Series | KW6007 Series |
Product descriptions from the supplier
Description
Overview
Supports detection of CT and PT
Meets the requirements of regulations such as GB1207 and GB1208
No need to connect other auxiliary equipment externally; a single unit can complete all detection items
Equipped with a built-in micro quick printer, which can directly print test results on-site
Simple to operate, with intelligent prompts, making it easier for users to get started
Large-screen LCD with a graphical display interface
Automatically provides CT/PT (excitation) inflection point values according to regulations
Automatically provides 5% and 10% error curves
Can save 3000 sets of test data, which will not be lost after power failure
Supports transferring data via U disk, which can be read through a standard PC and generate WORD reports
Small and lightweight (≤ 22Kg), very convenient for on-site testing
Parameters
Project |
Parameters |
|
Power input |
Rated voltage |
AC 220V±10% 50Hz |
Power Input |
2-phase 3-wire |
|
power output |
Rated capacity |
25kVA |
output voltage |
0~1.2kv（current Max. 20A） |
|
output current |
0-600A |
|
CT rate measurement |
Range |
≤5000A/1A |
precision |
≤0.5% |
|
VT rate measurement |
Range |
≤500kV |
precision |
≤0.5% |
|
Excitation measurement accuracy |
≤0.5% |
|
Operating temperature |
-10℃-40℃ |
|
Size |
410mmx260mmx340mm |
|
Weight |
25kg |
|
