  • TIP Series SF6 Station service voltage transformers
TIP Series SF6 Station service voltage transformers
discuss personally
Model
TIP-550
TIP-420
TIP-363
TIP-245
TIP-170
TIP-145
TIP-72.5
Basic info Product Detail Supplier
Basic info
Brand Rockwell
Model NO. TIP Series SF6 Station service voltage transformers
Rated voltage 550kV
Series TIP Series SF6
Product Detail

Overview

Technical features

- TIP gas-insulated SSVT is suitable for outdoor installations
- Primary winding is connected directly to high voltage (HV)and ground, while the secondary winding supplies lowvoltage (LV) or medium voltage (MV)
- Cooling method: GNAN (gas natural, air natural)
- HV terminals made of high conductivity aluminium. Can becylindrical or flat type (e.g. NEMA)
- Fiber-glass insulator with silicon rubber sheds andcreepage distance ≥ 25 mm/kV
- Enclosure made of aluminium alloy containing cores,primary and secondary windings
- Magnetic cores made of laminated steel with orientedgrains and high level of permeability
- Windings made of electrolytic copper
- Optional measuring windings
- Tested according to IEC 61689 and IEC 60076 or IEEEC57.13 and C57.12
- Suitable for applications in very low temperatures ( -50 oC)with mixed gas

Applications of TIP

1.Supplying auxiliary power in a substation away fromdistribution grid
In isolated areas, SF6 insulated station service voltagetransformers can effectively replace the functions of a powertransformer, optimizing the investment with the effective need ofpower. TIP is perfectly suited to switching substations, seriescompensation, solar plants, wind farms, etc;

2.Providing electricity to remote areas
TIP is the ideal solution for the electrification of rural areaswhere limited power needs of remote villages cannoteconomically justify the installation of a conventional substationor the extension of a distribution grid.

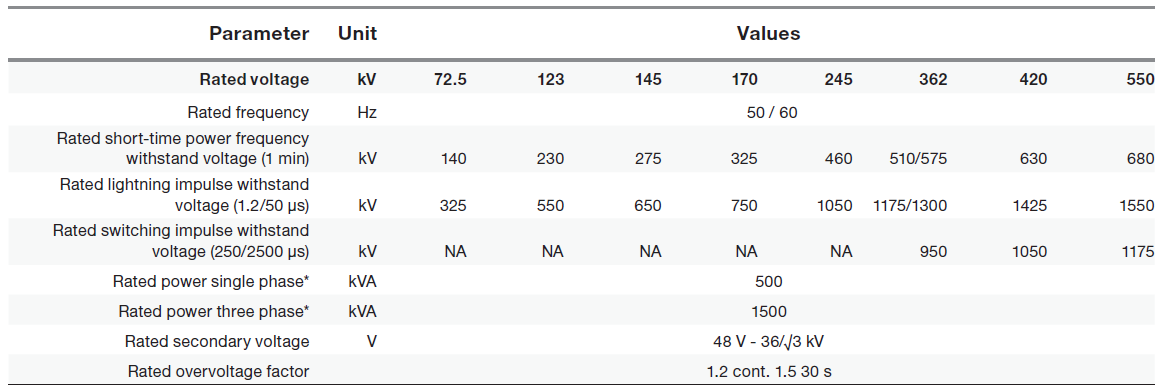

Technology parameters

Know your supplier
Rockwell
Wenzhou Rockwell Transformer Co., Ltd. It is a high - tech enterprise integrating R & D, production, sales, and service. It focuses on the manufacturing of power transformers and supporting equipment, and is committed to providing efficient, reliable, and energy - saving power transmission and distribution solutions for global customers. We can offer: •Distribution transformers and substations •Outdoor switchgears and breakers(recloser) •Switchgears and it’s components (GIS, RMU, VCB, SF6 CB) Market and Service: We always take customers as the orientation and provide customized services according to their requirements. Our products are exported to the Middle East, Africa, Northern Europe, South America, and many other countries and regions. Drive the future of electricity with technological innovation and become a leading global supplier of intelligent power equipment.
Main Categories
High Voltage Electrical Apparatus
Business Type
Design/Manufacture/Sales
Highest Annual Export (USD)
$100000000
Professional Experience
12 years
Workplace
60000m²
