UG Series SF6 Station service voltage transformers

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Rockwell
Model NO.	UG Series SF6 Station service voltage transformers
Rated voltage	550kV
Series	UG Series

Product Detail

Overview

Technical features

- UG gas-insulated SSVT is suitable for outdoor installations
- Primary winding is connected directly to high voltage (HV) and ground, while the secondary winding supplies low voltage (LV)
- Cooling method: GNAN (gas natural, air natural)
- HV terminals made of high conductivity aluminium. Can be cylindrical or flat type (e.g. NEMA)
- Fiber-glass insulator with silicon rubber sheds and creepage distance ≥ 25 mm / kV
- Enclosure made of aluminium alloy containing cores, primary and secondary windings
- Magnetic cores made of laminated steel with oriented grains and high level of permeability
- Windings made of electrolytic copper
- Optional metering windings
- Tested according to IEC 61689 and IEC 60076 or IEEE C57.13 and C57.12
- Suitable for applications in very low temperatures ( -50 oC) with mixed gas

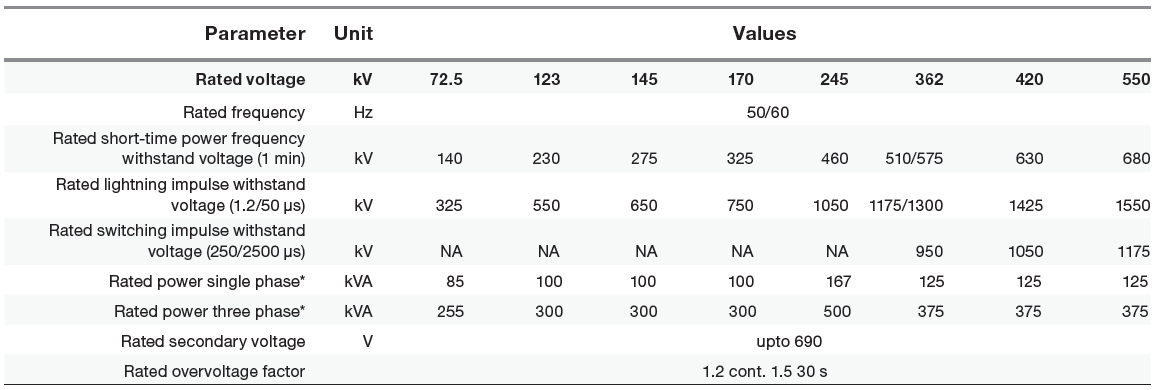

Technology parameters
