LVQB Series SF6 insulated Current transformer
Key attributes
| Brand | Rockwell |
| Model NO. | LVQB Series SF6 insulated Current transformer |
| Rated voltage | 550kV |
| Series | LVQB Series |
Product descriptions from the supplier
Overview
Current transformer LVQB series (top core design), SF6 insulated type is mainly used for outdoor installations. It is a reliable product with minimum maintenance and suitable for wide range of environmental conditions.
Features
● Designed and tested in accordance with latest IEC specification
● High insulation and pollution level
● Low gas leakage and low water content
● Low partial discharge
Benefits
● Easy installation and commissioning
● Maximum reliability and minimal maintenance
● Suitable for wide range of environmental conditions
● Good seismic performance

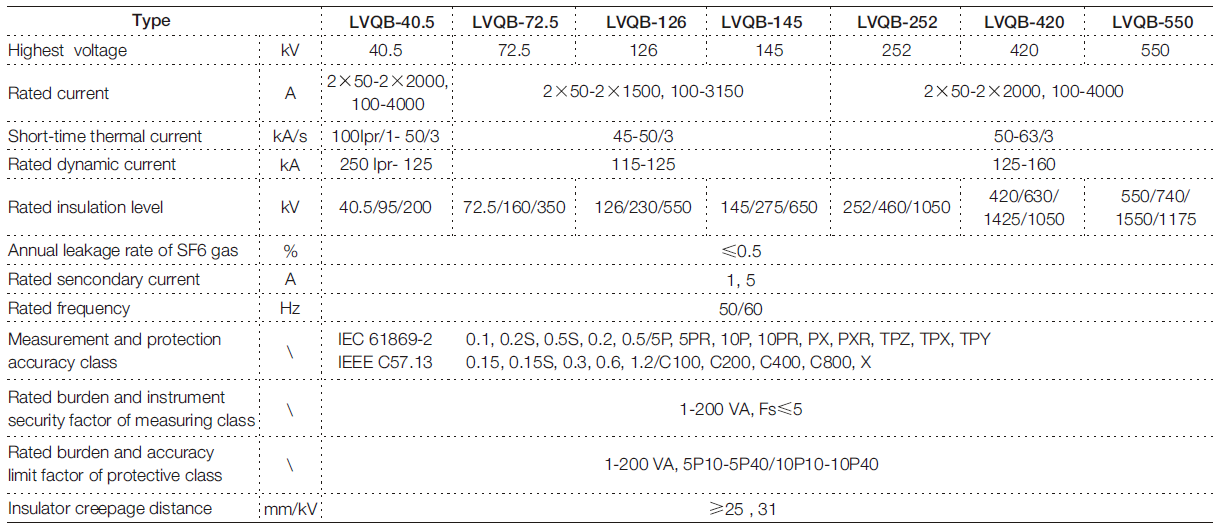

Technology parameters
