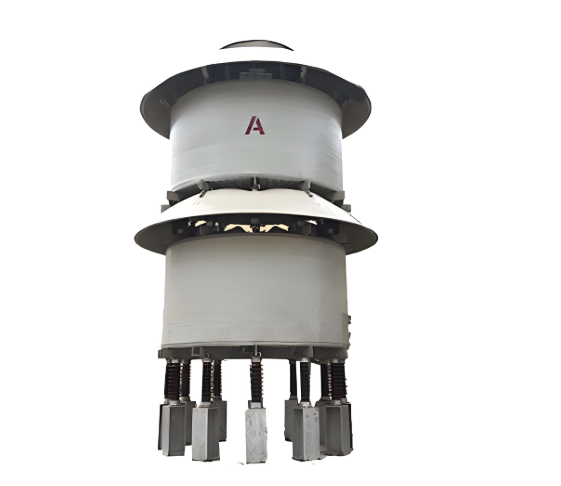

TCR Shunt Reactors for SVC

Product Overview

Product model: BKDCKL-XX (rated capacity)/XX (rated voltage) Main application fields: SVC systems in steel, railway, mining, and petrochemical enterprises

Product superiority

Suitable for power systems at 66kV and below, with a rated capacity range of 2x2,500~2x30,000kvar, a noise level below 58dB, and F (H) insulation class, for outdoor application. Widely applied in the SVC systems of steel, railway, mining, and petrochemical enterprises.
The product features good inductive linearity, precise inductance value, low losses, uniform temperature distribution, high insulation strength, high mechanical strength, low partial discharge, low noise, small size, light weight, moisture-proof, flame-retardant, strong overload capability, high reliability, no pollution, maintenance-free, and good environmental performance, which can save energy and improve the operational stability and reliability of the power system.

Product-related parameters

• Rated capacity：2x2,500~2x30,000kvar

• Rated Voltage: 66kV and below

• Noise level: ≤58dB

• Insulation class: F (H)

• Application: Outdoor
