| Brand | POWERTECH |
| Model NO. | Air-Core Series current-limiting Reactors |
| Rated voltage | 66kV |
| Rated frequency | 50/60Hz |
| Series | XKDCKL |

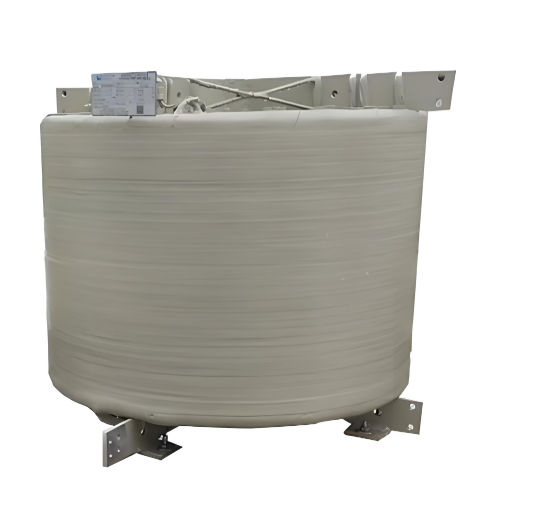

Product Overview
Product model: XKD (S) CKL-XX (voltage level)-XX (rated current)-XX (reactance) Example: XKDCKL-10-8000-10。Main application fields: power plants, power stations, industrial and mining enterprises, user distribution stations and other power systems at 66kV and below
Suitable for power systems at 66kV and below, with a rated capacity range of 10~10,000kvar, a noise level below 56dB, and F (H) insulation class, for both indoor and outdoor application. Widely applied in power plants, power stations, industrial and mining enterprises, and user distribution stations.
The product features good inductive linearity, precise inductance value, low losses, uniform temperature distribution, high insulation strength, high mechanical strength, low partial discharge, low noise, small size, light weight, moisture-proof, flame-retardant, strong overload capability, high reliability, no pollution, maintenance-free, and good environmental performance, which can save energy and improve the operational stability and reliability of the power system.
Rated Current: 100~8,000A
Rated Voltage: 66kV and below
Noise level: ≤58dB
Insulation class: F (H)
Application: Both indoor and outdoor
Single - phase rated capacity:10~10,000kvar
