RNV-A1-12D-1250A Inflatable Cabinet Circuit Breaker Switch
Key attributes
| Brand | Switchgear parts |
| Model NO. | RNV-A1-12D-1250A Inflatable Cabinet Circuit Breaker Switch |
| Rated voltage | 12kV |
| Rated normal current | 1250A |
| Rated frequency | 50Hz |
| Series | RNV-A1 |
Product descriptions from the supplier
The RNV-A1-12D-1250A inflatable cabinet circuit breaker switch is a high-capacity control and protection device designed specifically for 12kV medium voltage distribution systems. The circuit breaker switch has the advantages of easy installation, minimal maintenance, long service life, small size, low price, safety and reliability. Main circuit 1250-20kA (4s), 25KA (3s), mechanical life 10000 times. This series of products will be shipped after passing the full inspection and comply with the relevant requirements of GB1984-89 and GB/T1984-2014 AC high-voltage circuit breakers.
Product Parameters
| Serial Number | Item | Unit | Parameter |
|---|---|---|---|
| 1 | Rated Frequency | Hz | 50 |
| 2 | Rated Current | A | 1250 |
| 3 | Rated Short-time Withstand Current | kA | 20/25 |
| 4 | Rated Peak Withstand Current | kA | 50 |
| 5 | Rated Short-circuit Duration | s | 4 |
| 6 | Rated Short-circuit Making Current | kA | 50 |
| 7 | Rated Operating Sequence | - | 0-0.3s-180s-co |

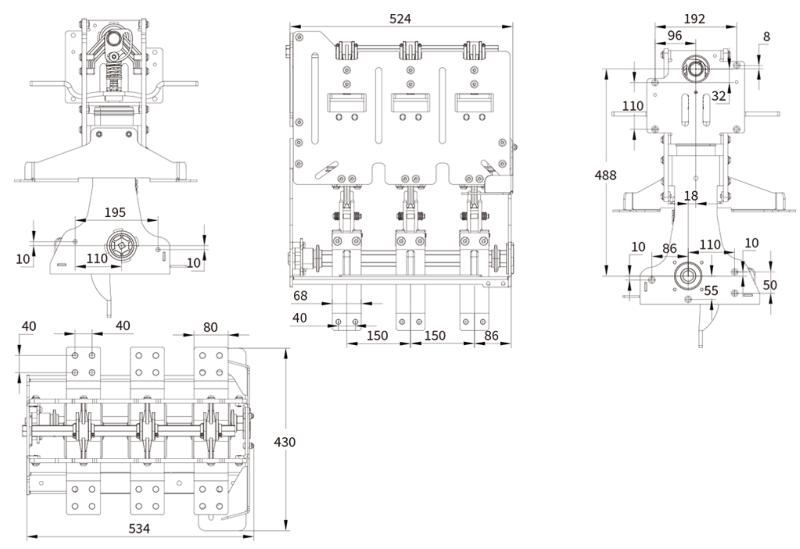

installation dimensions
