| Brand | IEE Business |
| Model NO. | QJS35 Series double-floating ball gas relay |
| range of flow | 1 m/s |
| gas accumulaton | 250~300 |
| Series | QJS35 Series |
Overview

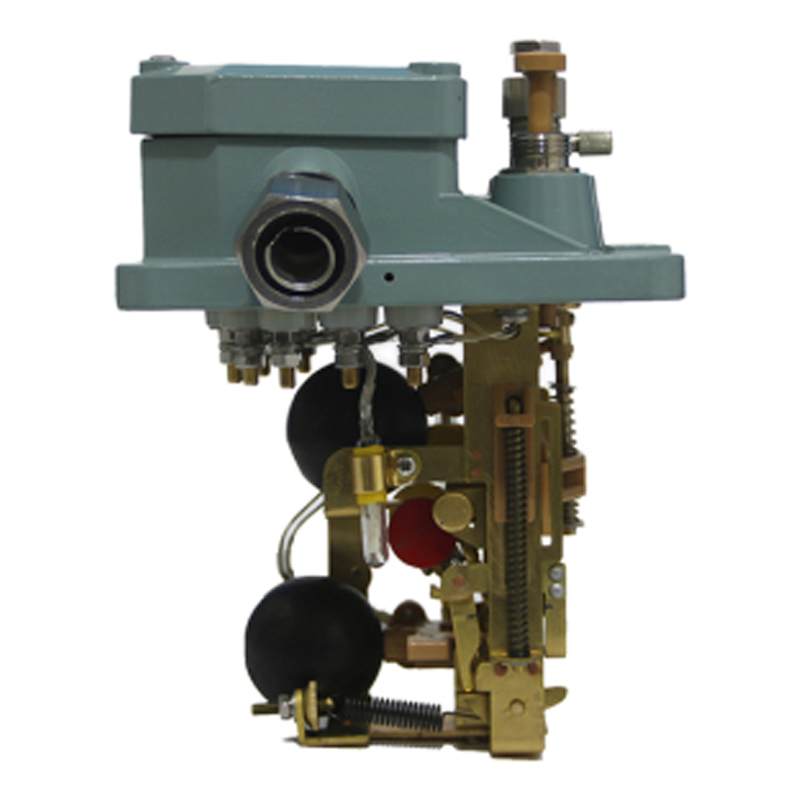

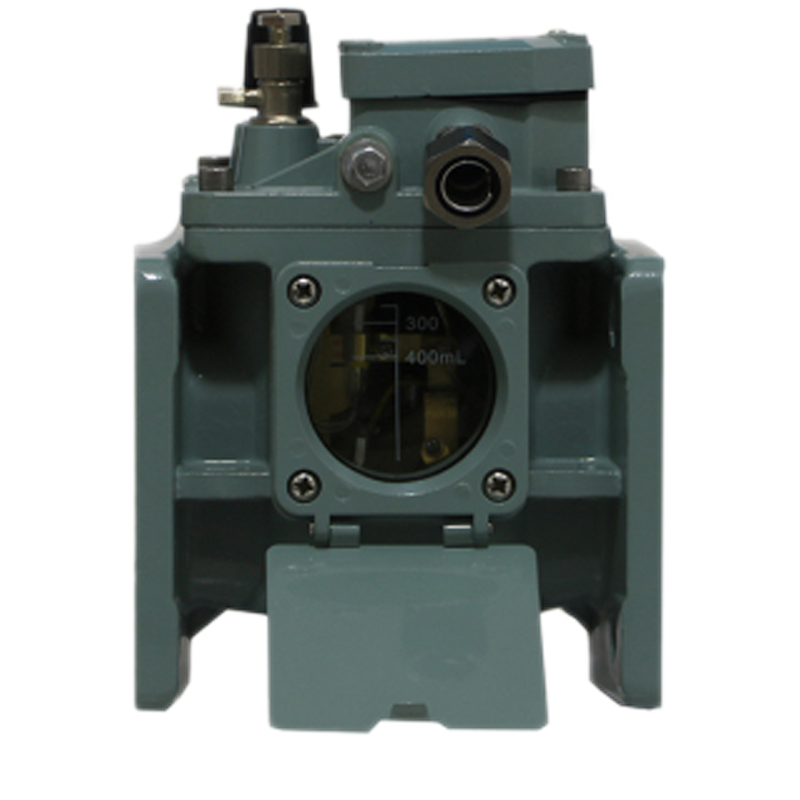

Product description: QJS35 series is a series of double-floating ball gas relays with memory function. This series is upgraded to double floating ball structure on the basis of traditional relay, and adds memory function, manual reset function and oil shortage alarm function. When the amount of gas in the transformer exceeds the standard, the relay light gas sends out an alarm signal. When the internal fault of the transformer occurs and the flow rate reaches the set value, the relay heavy gas closes and cuts off the power supply of the transformer. When the fault oil level of the transformer is reduced, the relay sends out a signal alarm.
Technology parameters
1.working temperature：-30℃~95℃
2.switch capacity：DC220/AC220 0.3A
3.Sealing performance:
Sealing character: Filling transformer oil into the relay, Pressurizing normal temperature 200Kpa, Continued 20min and without any leakage.
4.Insulation performance:
between contacts:2kV/1min;between terminal and earth:2kV/1min;between signal and tripping terminal:2kV/1min.
5.operating character
| Type | QJ35-50 | QJ35-80 |
|---|---|---|
| Range of flow (m/s) | 0.8 | 1.0 |
| Gas accumulation (ml) | 250~300 | 250~300 |
If you need to know about more parameters , Please check the model selection manual.↓↓↓
