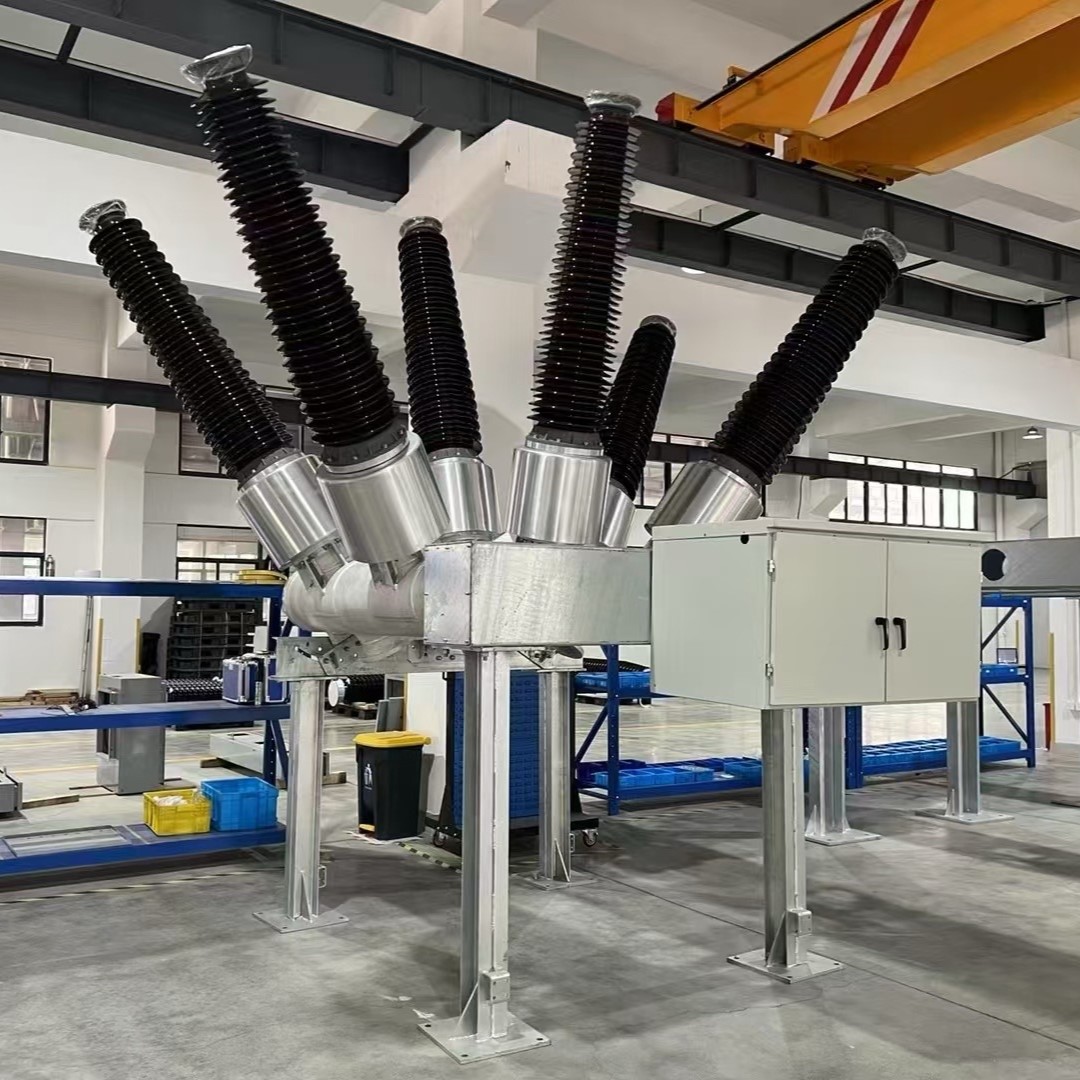

Dead Tank SF6 Circuit Breaker Africa Market Solution: Dual Breakthroughs in Gas Tightness and Arc Extinguishing Chamber Design

1. Gas Tightness Design: Core Assurance for Africa's Extreme Climates

1.1 Multi-Layer Sealing System Optimization

The Dead Tank SF₆ Circuit Breaker implements triple-sealed interfaces: EPDM flange gaskets (shore hardness 70±5), dynamic PTFE O-rings, and plasma-sprayed aluminum oxide coatings. This design enables the Dead Tank SF₆ Circuit Breaker to withstand 10,000 thermal cycles (50°C ↔ -20°C) while maintaining SF₆ leakage <0.3%/year under Sahara dust storms.

1.2 Cryogenic Gas Mixture Engineering

For Atlas Mountain substations (-45°C), the Dead Tank SF₆ Circuit Breaker integrates SF₆/N₂ mixtures (30:70 ratio) with active pressure regulators. The Dead Tank SF₆ Circuit Breaker's gas density sensors (0.5% FS accuracy) auto-trigger electric heaters when detecting <400 kPa, preventing liquefaction during polar vortex events.

1.3 Predictive Leakage Management

Embedded in the Dead Tank SF₆ Circuit Breaker, LoRaWAN-enabled monitors track gas purity (UHF spectroscopy) and moisture (<200 ppmv). Cloud-based algorithms predict seal degradation 6 months in advance, slashing maintenance costs by 40% for Africa's remote grids.

2. Arc Extinguishing Chamber Design: Combating African Grid Challenges

2.1 Dual-Speed Quenching Mechanism

The Dead Tank SF₆ Circuit Breaker combines puffer pistons (15 m/s) with magnetic coils (0.5 T flux density), achieving 3 ms current-zero creation. This lets the Dead Tank SF₆ Circuit Breaker clear 63 kA fault currents 18% faster than IEC 62271-100 standards.

2.2 Abrasion-Resistant Nozzle Assembly

In the Dead Tank SF₆ Circuit Breaker, arc nozzles use boron-doped alumina (HVOF coating, 1,500 Hv hardness). Testing confirms <0.05 mm erosion after 10,000 operations under Kalahari sand (SiO₂ >80%), tripling service intervals.

2.3 Modular Maintenance Configuration

The Dead Tank SF₆ Circuit Breaker's cassette-style arc chambers enable <2-hour component replacement using basic tools – critical for Africa's limited skilled workforce. Each Dead Tank SF₆ Circuit Breaker ships with pre-calibrated modules to avoid on-site SF₆ handling.

3. Africa-Specific Performance Enhancements

3.1 Dust & Vibration Protection

The Dead Tank SF₆ Circuit Breaker achieves IP67 rating via laser-welded tanks and graphene-enhanced seals. Its 3D-printed base isolators dampen 0.5g seismic vibrations, certified for Great Rift Valley deployments.

3.2 Renewable Energy Integration

With 2 kHz current-zero detection, the Dead Tank SF₆ Circuit Breaker interrupts 25% DC offset currents from African solar farms. Its CT/VT-integrated design reduces substation footprint by 35% versus conventional breakers.

3.3 Total Cost Leadership

The Dead Tank SF₆ Circuit Breaker delivers 25-year lifespan (vs 15 years for oil CBs) with 0 scheduled maintenance. Combined with hybrid gas refilling (50% less SF₆ usage), it cuts TCO by 58% over African CB lifecycle.
