lndustrial intelligent controllerI
Zhejiang Rockwell Energy Technology Co., Ltd.
12yrs +
staff 30000+m² US$100000000+
Key attributes
| Brand | RW Energy |
| Model NO. | lndustrial intelligent controllerI |
| Rated voltage | 24V |
| Series code | 300 |
| Product edition code | Standard edition |
| Series | XA |
Product descriptions from the supplier
Description
XA series Intel high-performance X86 processorXA series can integrate motion control, machine vision, HMl,information and other industrial automation applications to providecustomers with integrated and intelligent system solutions. lt iscompatible with Xinje XDPPro programming platform, which supportsPOU programming mode and can significantly improve userprogramming efficiency.

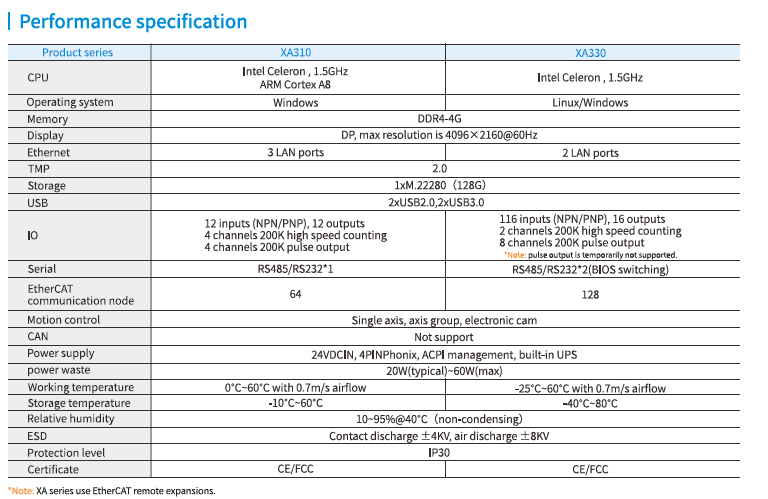

configuration

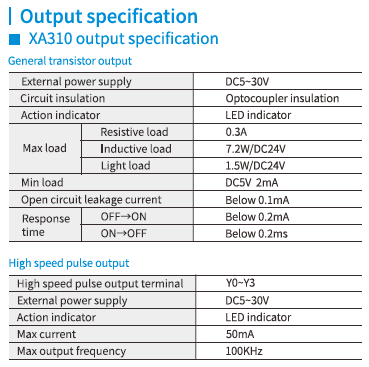

4~8 channels 200KHz pulse output.
2~4 channels 200KHz high speed counting.
EtherCAT motion control.
Support dual lP Ethernet interfaces to meet the separation of internal and external networks.
Built-in UPS to ensure user data and device security.
Built-in UPS, support user-defined UPs function.
Support LD, lL, C language programming.
