| Brand | Rw Energy |
| Model NO. | Hanging gun type DC Fast EV Charger |
| Rated voltage | 3*230(400)V |
| Rated normal current | 250A |
| Rated Output Rating | 240KW |
| Connector Options | CHAdeMO |
| Cable Length | 5m |
| Series | WZ07 |
Product Overview
120-240kW DC Fast EV Charger: Multi-standard, high-efficiency charging with smart OCPP connectivity.Our 120kW-240kW DC fast charging station delivers high-performance charging for global markets, supporting multiple international standards and smart connectivity.
Key Features
Ultra-fast charging: Reaches 80% charge in just 30 minutes
Multi-standard compatibility: Supports CHAdeMO, GB/T 20234.1/3, CCS1, and CCS2
High efficiency: >95% efficiency with PF>0.99 (APFC)
Smart connectivity: OCPP 1.6J (JSON), RFID (ISO14443A), 7" touchscreen HMI
Multi-language support: English, French, Spanish, Russian
Network options: Ethernet/4G/3G connectivity
Robust design: IK10 impact resistance & IP54 protection
Easy installation and maintenance
Hanging gun design: Mobile charging gun saves more effort
Product Advantages
Global market adaptability with major EV standards support
Energy-efficient operation with active power factor correction
Future-ready smart charging with OCPP 1.6 compliance
User-friendly interface with touchscreen and RFID authentication
Reliable performance in harsh conditions
Technical data
| Category |
specifications |
Data parameters |
|||
| Product Model |
WZ07-120kW |
WZ07-160kW |
WZ07-180kW |
WZ07-240kW |
|
| Appearance structure |
Dimensions (L x D x H) |
750mm x 600mm x 1900mm |
|||
| Weight |
336kg |
||||
| Length of charging cable |
5m |
||||
| Connectors |
GBT,CCS2,CCS1,CHAdeMO,NACS |
||||
| Electrical indicators |
Input Voltage |
400VAC / 480VAC (3P+N+PE) |
|||
| Input frequency |
50/60Hz |
||||
| Output Voltage |
200 - 1000VDC |
||||
| Output current |
1-250A |
||||
| rated power |
120kW |
160kW |
180kW |
240kW |
|
| Efficiency |
Peak Power ≥96% |
||||
| Power factor |
>0.98 |
||||
| Communication protocol |
OCPP 1.6J (State Grid Corporation of China,YKC, Xiao ju and other operating platforms.) |
||||
| functional design |
Display |
7inch LCD with touch screen |
|||
| Number of guns |
2 |
||||
| Access Control |
RFID/ ISO/IEC 14443A/B / POS machine (Optional) |
||||
| Communication |
WIFI/Ethernet / 3G/4G Modem (Optional) |
||||
| Power Electronics Cooling |
Air Cooled |
||||
| work environment |
Operating temperature |
-30°C to 75°C |
|||
| Working/Storage Humidity |
≤ 95% RH / ≤ 99% RH (Non-condensing) |
||||
| Altitude |
< 2000m |
||||
| Ingress Protection |
IP54 / IK10 |
||||
| safety design |
Safety protection |
Overvoltage protection, lightning protection, overcurrent protection, leakage protection, waterproof protection, etc |
|||
| Emergency Stop |
Emergency Stop Button Disables Output Power |
||||

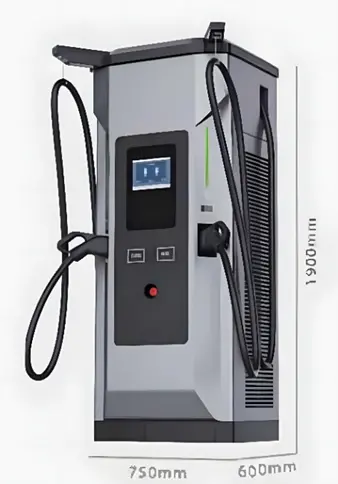

Dimension
Application Scenarios
Public charging networks for highways and urban areas
Fleet and commercial vehicle charging solutions
Smart city infrastructure projects
Commercial property installations
Custom OEM solutions
All WZ series products support OTA remote upgrades, which can be carried out through commercial backend pre updates to achieve protocol updates and vulnerability fixes without on-site operations, reducing maintenance costs for commercial operations.
The entire system supports intelligent power regulation, which can dynamically allocate power based on grid load and battery status, avoiding grid overload and reducing operating costs.
1. Only as an additional service, not for profit purposes: For scenarios such as hotels/homestays, beauty salons, etc., it is recommended to use a light asset model and deploy a small amount of WZ15L, WZ15W, or WZ17W for charging settlement through local pricing models, in order to provide additional value-added services.
2. Scenarios for small commercial charging stations/shopping mall charging stations: Considering the load capacity of the station area, it is not possible to deploy too many charging positions. WZ05, WZ06, WZ07, WZ08, and other fast charging devices with one machine and two guns can be selected, which are the preferred choices for the renovation of old parking lots. They can be easily deployed and used. If you need a scenario with one machine and multiple positions, you can choose the WZ09 and WZ10 series.
3. Medium to large commercial charging station scenarios: Choose multiple integrated one machine dual gun high-power solutions, such as WZ06, WZ07, WZ08, WZ09, WZ10 series, or a set of WZ12 series, to meet the simultaneous charging of multiple vehicles.
4. Large and ultra large commercial charging scenarios: Choose the WZ12 series, equipped with a large number of fast charging terminals and a small number of liquid cooled charging terminals. Firstly, it can meet the ultra fast charging needs of some high-end car models, demonstrating operational strength and improving reputation. Secondly, it can meet the simultaneous charging needs of many vehicles through a large number of fast charging terminals.
