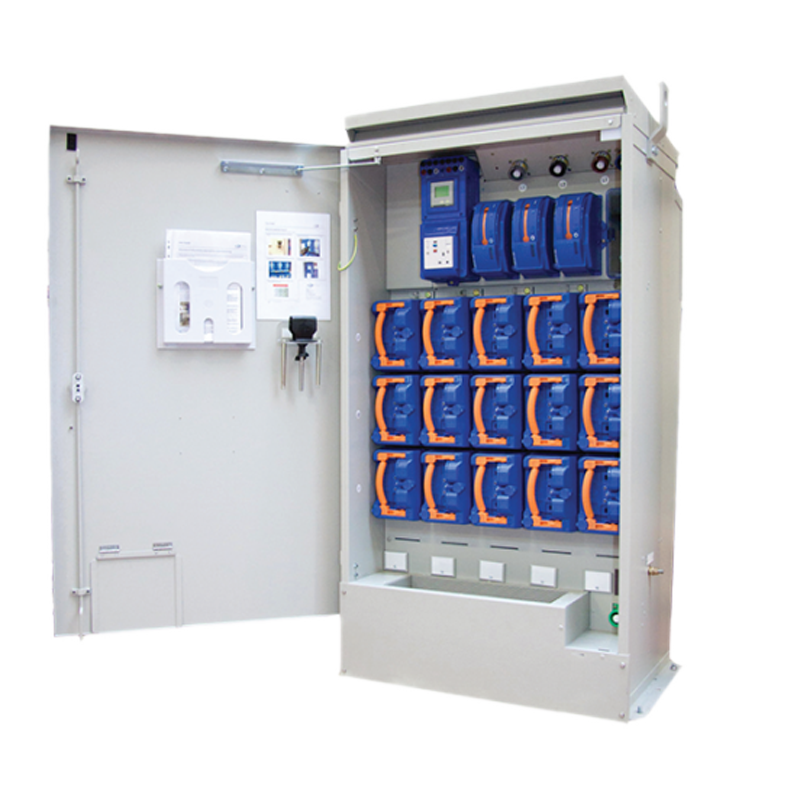

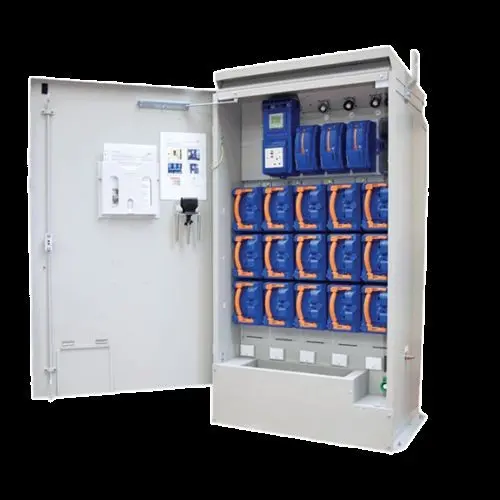

Fused Distribution Cabinet

The Lucy Electric AcuLok TMO range of transformer mounted low voltage distribution cabinets incorporates the unique AcuLok fuse handle system, which improves reliability and operator safety levels. Suitable for outdoor applications or indoor as part of a unit substation, the high equipment specification includes current transformers for load monitoring, a programmable digital meter, integral 660 A Veam Powerlock generator sockets and an RCD protected auxiliary socket.

features

• Multi position attachment option for mechanical cable connectors on fuse stalks

• Individual load-bearing cable cleat per fuse way

• Easily removable fuse stalks for connector attachment

• Complete 3 phase fuse ways are easily removable to allow panel reconfiguration

• Live current measurement per fuse handle facility

• 4, 5 or 6 outgoing fuse ways

• 800 A or 1600 A busbar ratings

• MCCBs up to 1600 A fitted to a chassis assembly

• ACBs up to 2500 A directly connected to transformer flange

• 3-phase disconnector handle

• 4-core cable kit

Technical specifications

1. Mounts on distribution transformers with 'F' type  f lange according to ENA technical specification 35-1

2. 1000A / 2000A rated independent manual load  make / load break disconnectors

3.  4, 5 or 6 outgoing fuse ways

4. 630A rated fuse handles accept BS 88 J type fuses with 92mm centres

5. 1 x 4 core 300mm2 Waveform cable per way  (bunched 185mm2 or 740mm2 for ACB’s)

6. Outgoing connections by compression lugs or range  taking mechanical shear-off connectors 95-300mm2 capacity

7. 660A Veam Powerlock standby generator sockets including earth

8. Multi-function digital meter with 30 minute lag  setting and option for comms

9. Metering CL0.5 rated current transformer per phase, ratio 2000/5A or 1000/5A

10. 20VA CT burden

11. 60% rated neutral

12. Suitable for 3C or 4C networks

13. IP2XB rating with the door open

14. Operating temperature range -25 to +40°C
