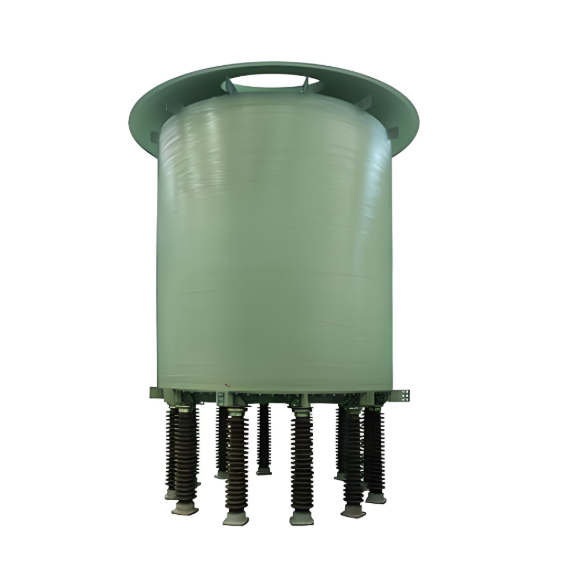

Dry-Type Air Core Shunt Reactors

Product Overview

Product model: BKD(S)CKL- XX (rated capacity)/XX (rated voltage)Typical model example: BKDCKL-40000/66.Main application fields: substations, industrial and mining enterprises, user power distribution stations, and other 66kV and below power systems.

Product superiority

The dry-type air core shunt reactor is a highly efficient and energy-saving device, suitable for 66kV and below power systems. Its rated capacity range is 100~50,000kvar, with a noise level below 56dB, F (H) insulation class, suitable for outdoor use, and widely applied in substations, industrial and mining enterprises, and user power distribution stations.
The product features precise inductance value, low losses, uniform temperature distribution, good inductive linearity, high insulation strength, high mechanical strength, low partial discharge, low noise, small size, light weight, moisture-proof, flame-retardant, strong overload capability, high reliability, no pollution, maintenance-free, and good environmental performance, which can be widely used in power transmission and transformation systems, electrified railways, metallurgy, petrochemicals, and other fields. It can be installed and operated both outdoors and indoors, especially in places requiring high dynamic thermal stability, fire performance, and outdoor operation, where its advantages can be fully utilized.

Product-related parameters

• Single-phase Rated capacity: 100~50,000kvar

• Rated Voltage: 66kV and below

• Noise level: ≤56dB

• Thermal class: F (H)

• Usage conditions: outdoor
