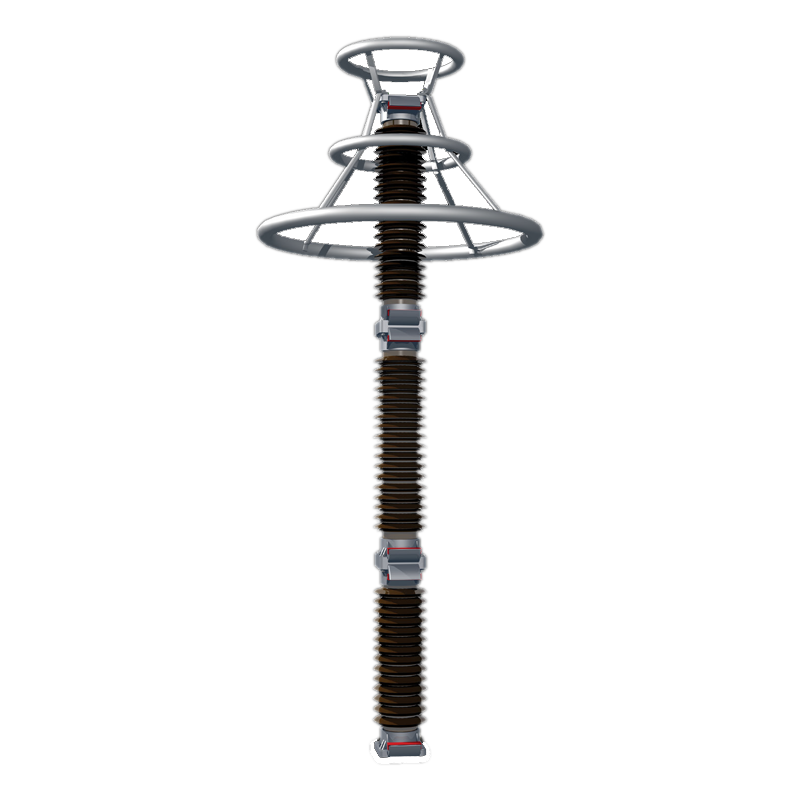

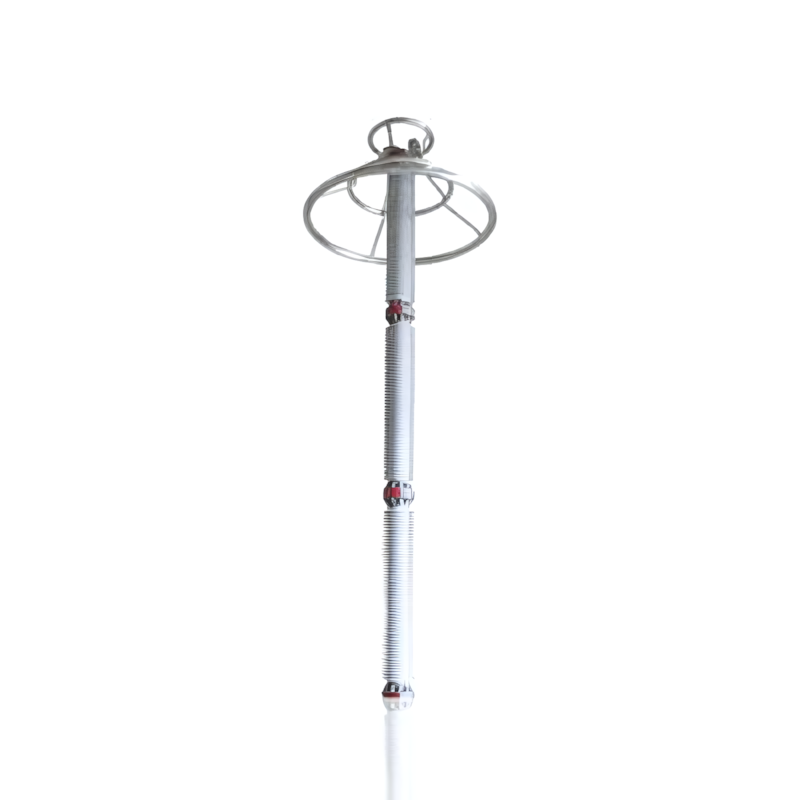

3 to 550kV Station Class Metal-oxide surge arresters

Name: 3 to 550kV Station Class Metal-oxide surge arresters
Brand: Wenzhou Rockwill Electric Co., Ltd.
SKU: 1895
Availability: InStock

Wenzhou Rockwill Electric Co., Ltd.

17yrs 700++ staff 108000+m² US$150000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	ROCKWILL
Model NO.	3 to 550kV Station Class Metal-oxide surge arresters
Rated voltage	800kV
Insulation housing type	Epoxy resin composites
Series	EXLIM

Description

Overview

EXLIM-T surge arresters are used for the protection of switchgear, transformers and other equipment in high voltage systems against atmospheric and switching overvoltages. For use when requirements of lightning intensity and energy capability are very high.

Application

The EXLIM-T surge arrester has been verified to meet Station class requirements of IEEE C62.11 (IEEE Standard for Metal-oxide surge arresters for AC power circuits) and line discharge class 5 requirements of IEC 60099-4 (IEC Standard for Metal-oxide surge arresters without gaps for AC systems).

Technology parameters

	System voltage			Surge arrester ANSI/IEEE ratings
	Maximum	Nominal		Three-WireVr/VMCOV	Four-wire groundedVr/VMCOV
	Vm	Three-Wire Vn	Four-wire Vn	Three-WireVr/VMCOV	Four-wire groundedVr/VMCOV	Four-wire grounded high impedance
	(kVrms)	(kVrms)	(kVrms)	(kVrms)	(kVrms)	Vr/VMCOV(kVrms)
Medium voltage	2.52	2.4	-	3 / 2.55	-
	4.37 / 2.52	-	4.16Y / 2.4	-	3 / 2.55	5 / 4.25
	4.37	4.16	-	5 / 4.25	-
	5.04	4.8	-	6 / 5.1	-
	7.24	6.9	-	9 / 7.65	-
	8.73Y / 5.04	-	8.32 Y/ 4.8	-	6 / 5.1	12 / 10.2
	12.6Y / 7.27	-	12.0Y / 6.93	-	9 / 7.65	15 / 12.7
	13.09 Y/ 7.56	-	12.47Y / 7.2	-	9 / 7.65	18 / 15.3
	13.86 Y/ 8.0	-	13.2 Y/ 7.62	-	10 / 8.4	18 / 15.3
	14.49 Y/ 8.37	-	13.8 Y/ 7.97	-	10 / 8.4	18 / 15.3
	14.49	13.8	-	18 / 15.3	-
	21.82Y / 12.6	-	20.78Y / 12.0	-	15 / 12.7	27 / 22
	24.0Y / 13.86	-	22.86Y / 13.2	-	18 / 15.3	30 / 24.4
	24.15	23	-	30 / 24.4	-
	26.19Y / 15.12	-	24.94Y / 14.4	-	21 / 17	33 / 27
	36.23Y / 20.92	-	34.5Y / 19.92	-	27 / 22	42 / 34
	36.23	-	-	-	-
High-voltage	48.3	-	-	48 / 39	-
	72.5	-	-	60 / 48	-
	123	-	-	108 / 84	-
	145	-	-	120 / 98	-
	170	-	-	144 / 115	-
	245	-	-	192 / 152	-
	300	-	-	228 / 180	-
	362	-	-	276 / 220	-
	420	-	-	336 / 272	-
	550	-	-	420 / 335	-
