Polymer Housed Station Arrester 3 to 240kV

Name: Polymer Housed Station Arrester 3 to 240kV
Brand: Wenzhou Rockwill Electric Co., Ltd.
SKU: 2154
Price: 1480.00 USD
Availability: InStock

Wenzhou Rockwill Electric Co., Ltd.

17yrs 700++ staff 108000+m² US$150000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	ROCKWILL
Model NO.	Polymer Housed Station Arrester 3 to 240kV
Rated voltage	245kV
Series	YH10WZ

Description

Overview

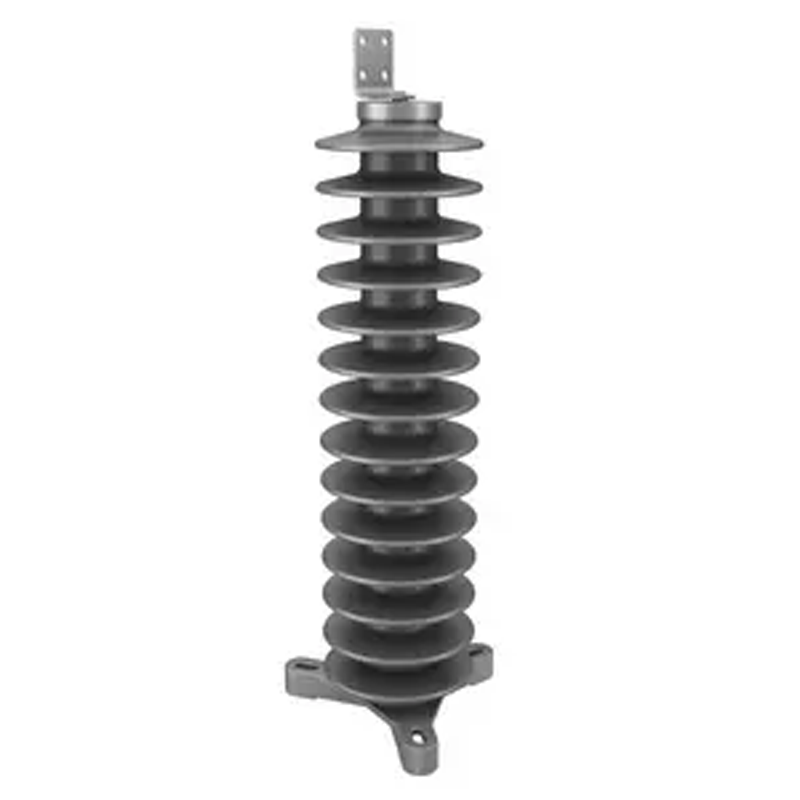

The YH10WZ Polymer Housed Station Arrester represents the absolute latest in surge arrester technology. Based on proven PVN technology, our YH10WZ line maintains our proprietary ESP™ weathershed material and protective levels. However, it has an even more robust sealing system to reduce moisture ingress to an unprecedented minimum. YH10WZ arresters also feature a redesigned housing profile for maximum material utilization, and even make ordering easier by using an intelligent numbering system.

Construction

Optimized wrap pattern and end hardware
    Even more effective sealing system
    Aluminum Top Cap
    Tri-pod base (standard 7.88 (200) to 10 (254) inches (mm) bolt circle slotted

At-a-Glance

The latest in surge arrester technology
Utilizes proprietary ESP™ weathershed material
More robust sealing system reduces moisture ingress

Our YH10WZ Arresters Feature

25% Recycled Packaging Material
15% Less Production Mass Compared toPrevious Designs
50% Recyclable Packaging

YH10WZ Physical Characteristics

Base Arrester Catalog Number	Rated Voltage (kV)	MCOV (kV)	Creepage Distance - Inches (mm)	Arrester Height - Inches (mm)	Lightning Withstand Voltage (kV)	Switching Withstand Voltage (kV)	Power Frequency Withstand Voltage (kV)	Recommended Minimum Clearance - Inches (mm)		Arrester Weight - Pounds (kg)
Base Arrester Catalog Number	Rated Voltage (kV)	MCOV (kV)	Creepage Distance - Inches (mm)	Arrester Height - Inches (mm)	Lightning Withstand Voltage (kV)	Switching Withstand Voltage (kV)	Power Frequency Withstand Voltage (kV)	Phase to Ground	Phase to Phase	Arrester Weight - Pounds (kg)
YH10WZ000300	3	2.55	19.6 (498)	9.9 (251)	101	84	50	4.5 (114)	9.0 (229)	12.6 (5.7)
YH10WZ000500	6	5.1	19.6 (498)	9.9 (251)	101	84	50	4.5 (114)	9.0 (229)	12.6 (5.7)
YH10WZ000800	9	7.65	24.8 (631)	11.7 (297)	127	106	63	4.5 (114)	9.0 (229)	15.0 (6.8)
YH10WZ000900	10	8.4	24.8 (631)	11.7 (297)	127	106	63	4.5 (114)	9.0 (229)	15.0 (6.8)
YH10WZ001000	12	10.2	24.8 (631)	11.7 (297)	127	106	63	4.5 (114)	9.0 (229)	15.0 (6.8)
YH10WZ001300	15	12.7	30.0 (763)	13.5 (344)	153	128	75	5.1 (130)	9.3 (236)	17.3 (7.8)
YH10WZ001500	18	15.3	30.0 (763)	13.5 (344)	153	128	75	5.7 (145)	10.0 (254)	17.3 (7.8)
YH10WZ001700	21	17	40.5 (1029)	17.2 (437)	207	173	101	6.2 (157)	10.5 (267)	21.9 (9.9)
YH10WZ001900	24	19.5	40.5 (1029)	17.2 (437)	207	173	101	6.8 (173)	11.2 (284)	21.9 (9.9)
YH10WZ002100	25	21	40.5 (1029)	17.2 (437)	207	173	101	7.2 (183)	11.7 (297)	21.9 (9.9)
YH10WZ002200	27	22	40.5 (1029)	17.2 (437)	207	173	101	7.4 (188)	11.9 (302)	21.9 (9.9)
YH10WZ002400	30	24.4	40.5 (1029)	17.2 (437)	207	173	101	8.0 (203)	12.6 (320)	21.9 (9.9)
YH10WZ002700	33	27	50.9 (1294)	20.9 (530)	261	219	125	8.7 (221)	13.4 (340)	26.6 (12.1)
YH10WZ002900	36	29	50.9 (1294)	20.9 (530)	261	219	125	9.2 (234)	14.0 (356)	26.6 (12.1)
YH10WZ003100	39	31.5	50.9 (1294)	20.9 (530)	261	219	125	9.8 (249)	14.7 (373)	26.6 (12.1)
YH10WZ003600	45	36.5	61.5 (1562)	24.5 (623)	313	263	148	11.1 (282)	16.1 (409)	31.2 (14.2)
YH10WZ003900	48	39	61.5 (1562)	24.5 (623)	313	263	148	11.7 (297)	16.8 (427)	31.2 (14.2)
YH10WZ004200	54	42	71.9 (1827)	28.2 (716)	367	308	172	14.1 (358)	19.5 (495)	35.9 (16.3)
YH10WZ004800	60	48	71.9 (1827)	28.2 (716)	367	308	172	15.3 (389)	20.9 (531)	35.9 (16.3)
YH10WZ005300	66	53	71.9 (1827)	28.2 (716)	367	308	172	15.3 (389)	20.9 (531)	35.9 (16.3)
YH10WZ005700	72	57	82.4 (2093)	31.9 (810)	421	353	194	16.5 (419)	22.3 (566)	41.1 (18.6)
YH10WZ007000	90	70	123 (3124)	46.3 (1177)	631	529	275	20.2 (513)	26.4 (671)	58.9 (26.7)
YH10WZ007400	90	74	123 (3124)	46.3 (1177)	631	529	275	20.5 (521)	26.7 (678)	58.9 (26.7)
YH10WZ007600	96	76	123 (3124)	46.3 (1177)	631	529	275	21.5 (546)	27.9 (709)	58.9 (26.7)
YH10WZ007800	96	78	123 (3124)	46.3 (1177)	631	529	275	21.5 (546)	27.9 (709)	58.9 (26.7)
YH10WZ008400	108	88	123 (3124)	46.3 (1177)	631	529	275	24.0 (610)	30.7 (780)	58.9 (26.7)
YH10WZ008800	108	88	123 (3124)	46.3 (1177)	631	529	275	24.0 (610)	30.7 (780)	58.9 (26.7)
YH10WZ009800	120	98	144 (3654)	53.7 (1364)	652	546	283	31.3 (795)	43.1 (1095)	73.1 (33.2)
YH10WZ010600	132	106	144 (3654)	53.7 (1364)	652	546	283	33.5 (851)	45.6 (1158)	73.1 (33.2)
YH10WZ011500	144	115	165 (4185)	61.0 (1550)	758	635	320	36.0 (914)	48.4 (1229)	82.1 (37.2)
YH10WZ013100	168	131	185 (4686)	72.5 (1841)	926	776	372	40.9 (1039)	54.0 (1372)	97.0 (44.1)
YH10WZ014000	172	140	216 (5482)	83.5 (2121)	1006	843	395	47.6 (1209)	66.4 (1687)	120 (54.6)
YH10WZ014400	180	144	216 (5482)	83.5 (2121)	1006	843	395	49.0 (1245)	68.0 (1727)	120 (54.6)
YH10WZ015200	192	152	216 (5482)	83.5 (2121)	1006	843	395	51.4 (1306)	70.8 (1798)	120 (54.6)
YH10WZ015400	192	152	216 (5482)	83.5 (2121)	1006	843	395	51.4 (1306)	70.8 (1798)	120 (54.6)
YH10WZ018000	228	180	247 (6278)	94.5 (2400)	1166	977	436	58.7 (1491)	79.1 (2009)	133 (60.1)
YH10WZ019000	240	190	247 (6278)	94.5 (2400)	1166	977	436	61.2 (1554)	81.9 (2080)	133 (60.1)

YH10WZ Electrical Characteristics

Base Arrester Catalog Number	Rated Voltage (kV)	MCOV (kV)	Creepage Distance - Inches (mm)	Arrester Height - Inches (mm)	Lightning Withstand Voltage (kV)	Switching Withstand Voltage (kV)	Power Frequency Withstand Voltage (kV)	Recommended Minimum Clearance - Inches (mm)		Arrester Weight - Pounds (kg)
Base Arrester Catalog Number	Rated Voltage (kV)	MCOV (kV)	Creepage Distance - Inches (mm)	Arrester Height - Inches (mm)	Lightning Withstand Voltage (kV)	Switching Withstand Voltage (kV)	Power Frequency Withstand Voltage (kV)	Phase to Ground	Phase to Phase	Arrester Weight - Pounds (kg)
YH10WZ000300	3	2.55	19.6 (498)	9.9 (251)	101	84	50	4.5 (114)	9.0 (229)	12.6 (5.7)
YH10WZ000500	6	5.1	19.6 (498)	9.9 (251)	101	84	50	4.5 (114)	9.0 (229)	12.6 (5.7)
YH10WZ000800	9	7.65	24.8 (631)	11.7 (297)	127	106	63	4.5 (114)	9.0 (229)	15.0 (6.8)
YH10WZ000900	10	8.4	24.8 (631)	11.7 (297)	127	106	63	4.5 (114)	9.0 (229)	15.0 (6.8)
YH10WZ001000	12	10.2	24.8 (631)	11.7 (297)	127	106	63	4.5 (114)	9.0 (229)	15.0 (6.8)
YH10WZ001300	15	12.7	30.0 (763)	13.5 (344)	153	128	75	5.1 (130)	9.3 (236)	17.3 (7.8)
YH10WZ001500	18	15.3	30.0 (763)	13.5 (344)	153	128	75	5.7 (145)	10.0 (254)	17.3 (7.8)
YH10WZ001700	21	17	40.5 (1029)	17.2 (437)	207	173	101	6.2 (157)	10.5 (267)	21.9 (9.9)
YH10WZ001900	24	19.5	40.5 (1029)	17.2 (437)	207	173	101	6.8 (173)	11.2 (284)	21.9 (9.9)
YH10WZ002100	25	21	40.5 (1029)	17.2 (437)	207	173	101	7.2 (183)	11.7 (297)	21.9 (9.9)
YH10WZ002200	27	22	40.5 (1029)	17.2 (437)	207	173	101	7.4 (188)	11.9 (302)	21.9 (9.9)
YH10WZ002400	30	24.4	40.5 (1029)	17.2 (437)	207	173	101	8.0 (203)	12.6 (320)	21.9 (9.9)
YH10WZ002700	33	27	50.9 (1294)	20.9 (530)	261	219	125	8.7 (221)	13.4 (340)	26.6 (12.1)
YH10WZ002900	36	29	50.9 (1294)	20.9 (530)	261	219	125	9.2 (234)	14.0 (356)	26.6 (12.1)
YH10WZ003100	39	31.5	50.9 (1294)	20.9 (530)	261	219	125	9.8 (249)	14.7 (373)	26.6 (12.1)
YH10WZ003600	45	36.5	61.5 (1562)	24.5 (623)	313	263	148	11.1 (282)	16.1 (409)	31.2 (14.2)
YH10WZ003900	48	39	61.5 (1562)	24.5 (623)	313	263	148	11.7 (297)	16.8 (427)	31.2 (14.2)
YH10WZ004200	54	42	71.9 (1827)	28.2 (716)	367	308	172	14.1 (358)	19.5 (495)	35.9 (16.3)
YH10WZ004800	60	48	71.9 (1827)	28.2 (716)	367	308	172	15.3 (389)	20.9 (531)	35.9 (16.3)
YH10WZ005300	66	53	71.9 (1827)	28.2 (716)	367	308	172	15.3 (389)	20.9 (531)	35.9 (16.3)
YH10WZ005700	72	57	82.4 (2093)	31.9 (810)	421	353	194	16.5 (419)	22.3 (566)	41.1 (18.6)
YH10WZ007000	90	70	123 (3124)	46.3 (1177)	631	529	275	20.2 (513)	26.4 (671)	58.9 (26.7)
YH10WZ007400	90	74	123 (3124)	46.3 (1177)	631	529	275	20.5 (521)	26.7 (678)	58.9 (26.7)
YH10WZ007600	96	76	123 (3124)	46.3 (1177)	631	529	275	21.5 (546)	27.9 (709)	58.9 (26.7)
YH10WZ007800	96	78	123 (3124)	46.3 (1177)	631	529	275	21.5 (546)	27.9 (709)	58.9 (26.7)
YH10WZ008400	108	88	123 (3124)	46.3 (1177)	631	529	275	24.0 (610)	30.7 (780)	58.9 (26.7)
YH10WZ008800	108	88	123 (3124)	46.3 (1177)	631	529	275	24.0 (610)	30.7 (780)	58.9 (26.7)
YH10WZ009800	120	98	144 (3654)	53.7 (1364)	652	546	283	31.3 (795)	43.1 (1095)	73.1 (33.2)
YH10WZ010600	132	106	144 (3654)	53.7 (1364)	652	546	283	33.5 (851)	45.6 (1158)	73.1 (33.2)
YH10WZ011500	144	115	165 (4185)	61.0 (1550)	758	635	320	36.0 (914)	48.4 (1229)	82.1 (37.2)
YH10WZ013100	168	131	185 (4686)	72.5 (1841)	926	776	372	40.9 (1039)	54.0 (1372)	97.0 (44.1)
YH10WZ014000	172	140	216 (5482)	83.5 (2121)	1006	843	395	47.6 (1209)	66.4 (1687)	120 (54.6)
YH10WZ014400	180	144	216 (5482)	83.5 (2121)	1006	843	395	49.0 (1245)	68.0 (1727)	120 (54.6)
YH10WZ015200	192	152	216 (5482)	83.5 (2121)	1006	843	395	51.4 (1306)	70.8 (1798)	120 (54.6)
YH10WZ015400	192	152	216 (5482)	83.5 (2121)	1006	843	395	51.4 (1306)	70.8 (1798)	120 (54.6)
YH10WZ018000	228	180	247 (6278)	94.5 (2400)	1166	977	436	58.7 (1491)	79.1 (2009)	133 (60.1)
YH10WZ019000	240	190	247 (6278)	94.5 (2400)	1166	977	436	61.2 (1554)	81.9 (2080)	133 (60.1)
