15kV 27kV 38kV Ring Main Unit Gas-Insulated Switchgear (SF6)

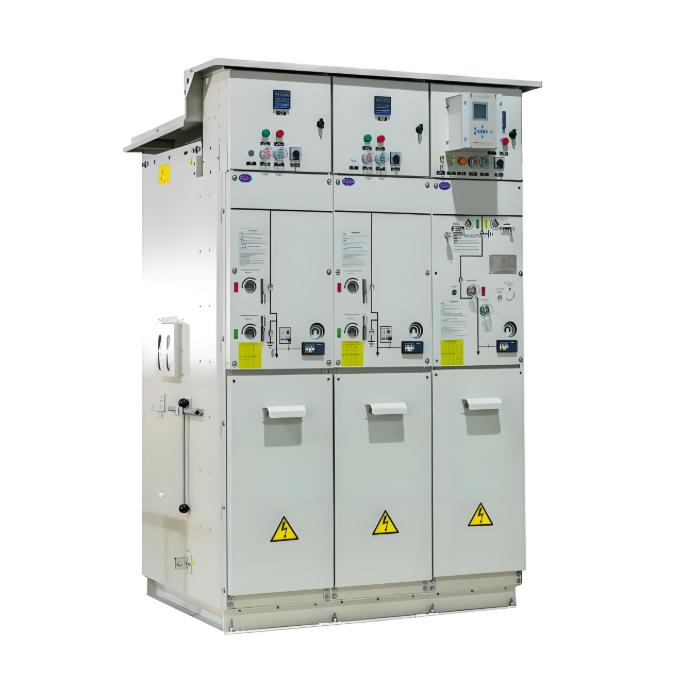

Name: 15kV 27kV 38kV Ring Main Unit Gas-Insulated Switchgear (SF6)
Brand: Yueqing HK Electrical Trading Co., Ltd.
SKU: 2583
Availability: InStock

Yueqing HK Electrical Trading Co., Ltd.

9yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	HK Electrical
Model NO.	15kV 27kV 38kV Ring Main Unit Gas-Insulated Switchgear (SF6)
Rated voltage	38kV
Rated normal current	600A
Rated frequency	50/60Hz
Series	J

Description

Description

Our Ring Main Unit (RMU) Gas-Insulated Switchgear is a great option for power distribution applications It offers optimal dielectric strength while maintaining excellent arc-quenching properties for enhanced safety. Customers often base their decision on the type of GIS solution they choose on space limitations. We offer individual tank and combined tank configurations under the following parameters:

Individual gas tank: 15 kV – 38 kV / 1200 A – 600 A / 20 kA – 25 kA
Combined gas tank: 15 kV – 27 kV / 600 A / 20 kA

J10X Solution Advantages

lightweight, compact design
up to 75% space savings compared to AIS
ul listed technology
robust performance with enhanced safety

Technical Specifications – Sulfur Hexafluoride (SF₆) GIS

Parameters	Unit	J10X	J10X	J10X	J20X	J20X	J20X
Rated Voltage	kV	15	27	38	27	38	69
Rated Power Frequency Withstand Voltage	kV	36	60	80	60	80	140
Rated Lightning Impulse Withstand Voltage (BIL) Phase to Phase and Phase to Ground	kV	95	125	150	125	150	325
Rated Continuous Current	A	600	600	600	1200	3000	1200
Rated Short Circuit Current	kA	20	20	25	31.5	40	31.5
Rated Peak Withstand Current	kA	50	50	65	80	100	80
Rated Frequency	Hz	60	60	60	60	60	60
Rated Gas Pressure (20C)	Bar	1.3	1.3	1.3	1.3	1.3	1.3
Annual Leakage Rate	Year	< 0.1%
Operational / Survival Temperature Range*	°C	-25 to +40 / -50 to +60 *
Ingress Protection Code: Gas Tank / LV*		IP67 / IP40 *
Altitude*	m	< 2,000 *
Internal Arc Class (IAC) – Arc Resistance Code	1 sec	AFLR
Width*	mm/in	355/14	450/18	450/18	600/24	1000/40	800/32
Height*	mm/in	1900/75	1900/75	1900/75	2500/98	2500/98	2500/98
Depth*	mm/in	990/39 ~2100/83 depends on power cables entry top / bottom. Max is 6 cables bottom entry, 4 power cables top entry. *

* please contact JST for non-standard request
