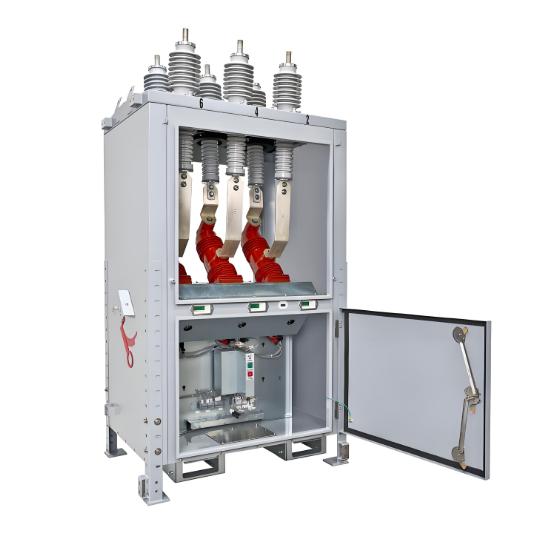

15.5 kV Outdoor Substation Circuit Breaker robustly Constructed for Optimal Performance

Add us on Google
  • 15.5 kV Outdoor Substation Circuit Breaker robustly Constructed for Optimal Performance

Key attributes

Brand HK Electrical
Model NO. 15.5 kV Outdoor Substation Circuit Breaker robustly Constructed for Optimal Performance
Rated voltage 15.5kV
Rated normal current 2000A
Rated frequency 50/60Hz
Series OD3Mag
Description

Description

Our  breaker is the first medium voltage substation breaker with configurable single-phase or three-phase operation. This feature blends the ratings and durability of a circuit breaker with the functionality of a recloser. By tripping individual phases on a distribution system, utilities are able to improve SAIDI and SAIFI scores, reduce restoration times and enhance overall system performance. Combined with a robust enclosure that prevents moisture and contamination ingress, the OD3MAG breaker uses field-proven magnetic actuation to significantly reduce O&M spend.

We offer our breaker in the following power ranges: 15 kV / 2000 A / 31.5 kAIC / 125 BIL. Standard features include: single-phase capability with independent pole actuators, position indicators for each phase, manual trip lever and mechanical lockout, lift-out breaker for easy upgrades and repairs, LV control instrument panel swing door, extra creep bushings and overhead lift and forklift provisions for flexible onsite handling.

Optional features include: single-phase or three-phase OPEN/CLOSE configurations, flexible door design, aluminum or steel construction options, CT and Ragowski coil options.

Feature

The first MV Substation Breaker that allows the choice of 1-phase or 3-phase operation.This feature allows you the performance and ratings of a circuit breaker and the functionality of a recloser. By tripping individual phases in distribution systems, utilities are able to improve their SAIDI and SAIFI scores and enhance the resiliency of their network.

15.5 kV Outdoor Substation Circuit Breaker robustly Constructed for Optimal Performance

Solution Advantages

  • Robust cabinet design to prevent moisture and contamination.

  • Magnetic actuation technology.

  • Welded roof design eliminates roof deflection and reduces water leakage.

  • Designed to view operation counter without the need to open control door.

Advantages of magnetic actuation

Our solution combines robust design and construction with field-proven magnetic actuation. Magnetic actuation required fewer moving parts and eliminates lubrication requirements. Direct drive push rods eliminate structural torquing of the breaker and results in longer life of vacuum interrupters. In addition, magnetic losses are negligible resulting in consistent operating speed across entire temperature rating of the breaker and entire life of the breaker and offers reduced noise during operation. Overall reduction in costs result from no preventative maintenance on actuators and low power requirements from station service batteries or transformer.

15.5 kV Outdoor Substation Circuit Breaker robustly Constructed for Optimal Performance

Technical Specifications

Ratings & Characteristics
Maximum Voltage 15.5 kV RMS
Continuous Current 1250A / 2000A RMS
Number of Poles 3
Voltage Range for Factor K 1
Power Frequency  60 Hz
Power Frequency Withstand (Wet/Dry)  50 kV
Basic Impulse Level (BIL) 125 kV
Standard Operating Duty O-0.3s-CO-15s-CO
Short-Circuit Current  31.5 kA RMS
Peak Withstand Current 82 kA Peak
Duration of Short Circuit 2 S
Short-Circuit Making Current 82 kA
Symmetrical Interrupting Capability  31.5 kA RMS
Asymmetrical Interrupting Capability 43 kA RMS
Interrupting Time 3 cycle
Transient Recovery Voltage 34.2 kV
Control Voltage 48 Vdc, 125 Vdc, 120 Vac
Class S2
Capacitive Switching
Maximum Voltage 15.5 kV RMS
Number of Poles 3
Rated Over Headline Current 100 A
Rated Capacitor Back Current (Back-to-Back) 600 A
Rated Peak Inrush 6 kA
Rated Inrush Frequency 1.2 kHz
Class C2
Mechanical / Environmental
Operation 10,000 ops
Maintenance Period 10,000 ops
Rated Minimum Operational Temperature -40° F (-40˚ C)
Rated Maximum Operational Temperature 131˚ F (50° C)R
Rated IP IP55, IK10
Enclosure Rating NEMA 4
