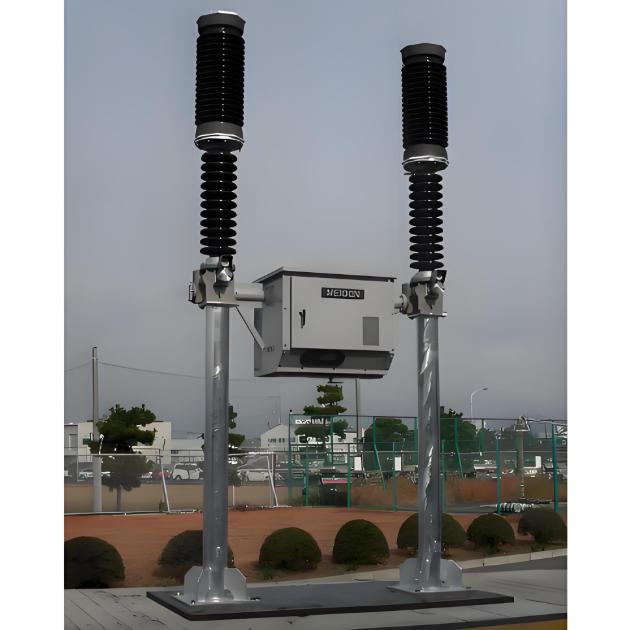

27.5kV and 55kV Insulator Type 2-pole Vacuum Circuit Breakers (VCBs)

Add us on Google
  • 27.5kV and 55kV Insulator Type 2-pole Vacuum Circuit Breakers (VCBs)
  • 27.5kV and 55kV Insulator Type 2-pole Vacuum Circuit Breakers (VCBs)

Key attributes

Brand HK Electrical
Model NO. 27.5kV and 55kV Insulator Type 2-pole Vacuum Circuit Breakers (VCBs)
Rated voltage 55kV
Rated normal current 2500A
Rated frequency 50/60Hz
Series ZW
Description

Description

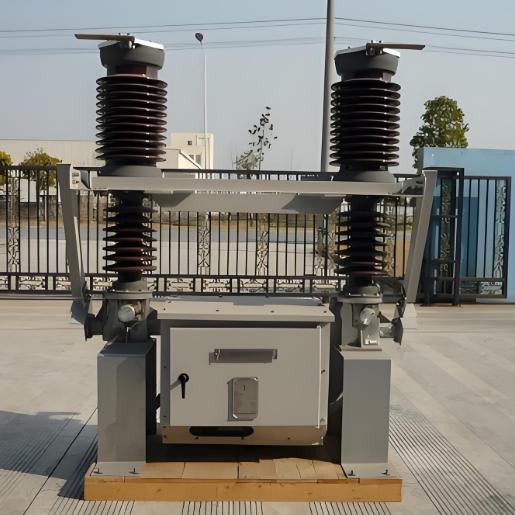

Our 27.5kV and 55kV Insulator Type 2-pole Vacuum Circuit Breakers (VCBs) combine reliable vacuum interruption tech with a durable insulator-type structure, ideal for high-voltage scenarios like railway traction networks, industrial power distribution, and grid substations. The 2-pole design ensures synchronized circuit breaking to avoid phase imbalance, while the insulator-type build resists extreme temps (-40°C to high heat) and altitudes up to 3,000m for stable operation. With 31.5kA short-circuit breaking current, 2500A rated current, and 3-6 year maintenance cycles, these VCBs meet IEC 62271-100/GB 1984 standards—offering eco-friendly options (like dry air insulation) and easy retrofitting for seamless integration into existing systems.

Product Features

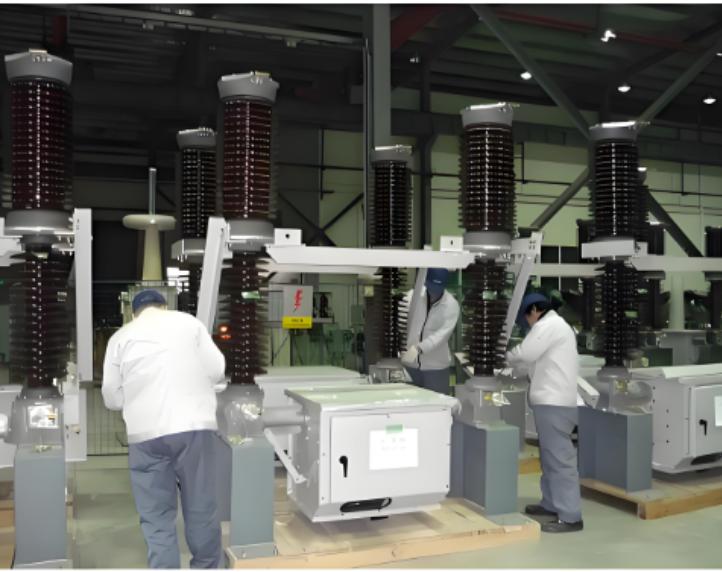

Meidensha has been supplying VCBs for electric railways in China since 1980s, based on our rich experience and expertise in Japan for power systems for electric railways including the Shinkansen. In 2007 and 2011, Meidensha developed new 55 kV and 27.5 kV insulator type VCBs for high-speed railways in China. Since these products are reliable, compact and easy to handle, some 800 VCBs are in service today.

  • Long operational life with 30 times of rated short-circuit current breaking and 10,000 times of mechanical operatiion

  • Designed to operate in various environments for the ambient temperature of -40°C to 40°C and the altitude of up to 3,000 m (up to 3,600 m under special conditions)

  • Optional CTs for mounting on the stand, reducing the installation space and costs

  • Low-pressure insulating gas (SF6) inside the live circuit compartment. The VCB performance can be maintained even if the pressure decreases to the atmospheric pressure.

Specifications

Rated voltage (kV)

55

27.5

Rated current (A)

2000

2500

Rated short circuit breaker current (kA)

31.5

31.5

Insulating medium

SF6 gas

Applicable standards

IEC62271-100, GB-1984, TB/T2803, JB/T6463

Ambient temperature

-40°C - 40°C

Altitude

3,000 m or less
