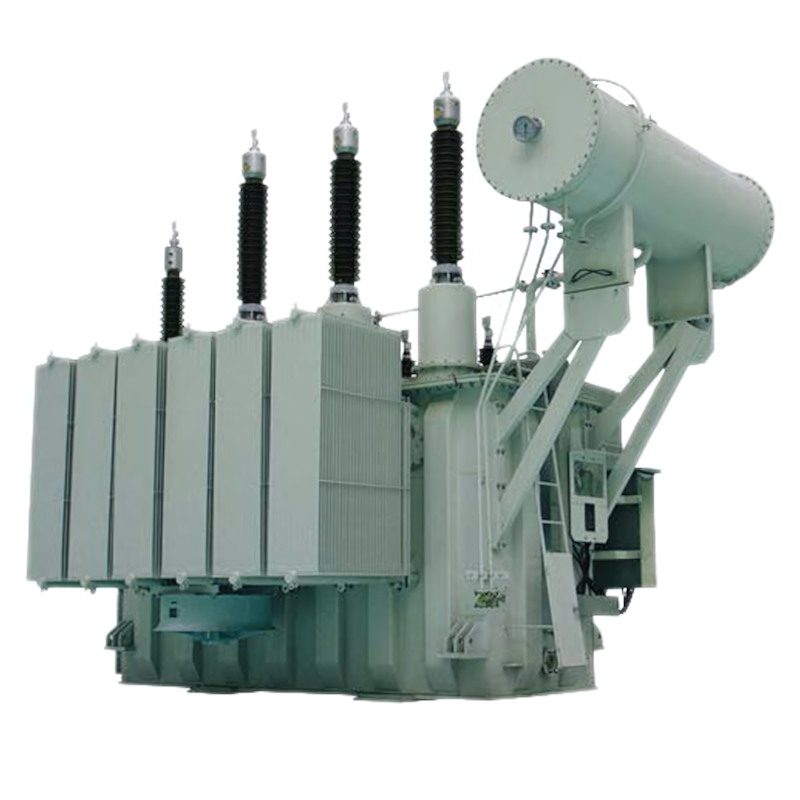

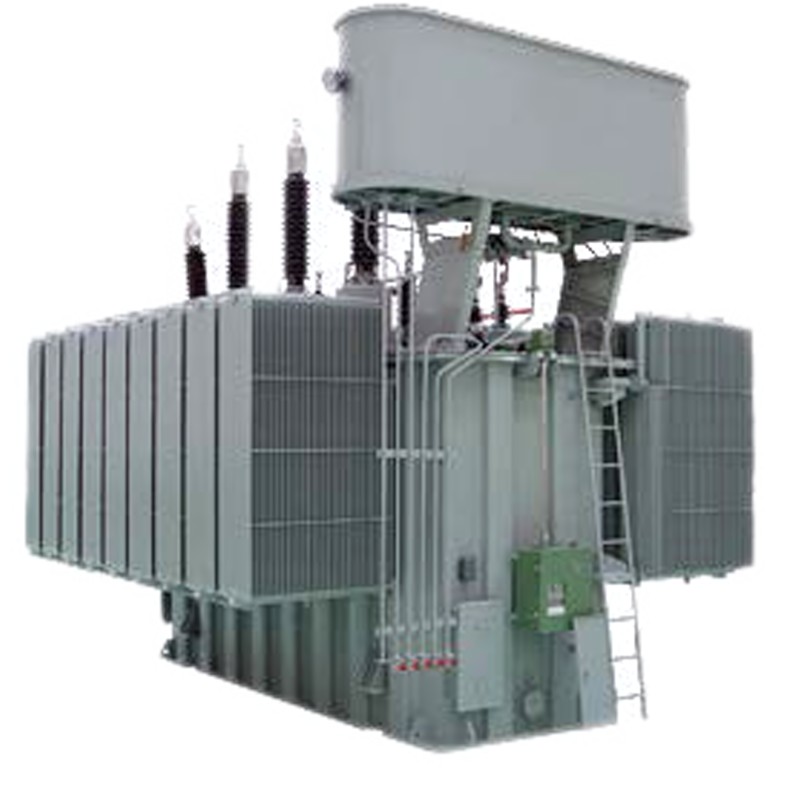

110kV Class oil-immersed transformer

discuss personally

Model

SFS10-90000/121

SFS10-90000/110

SFS10-50==63000/121

SFS10-63000/110

SFS10-50000/121

SFS10-50000/110

SFS10-40000/121

SFS10-40000/110

SFS10-31500/121

SFS10-31500/110

SFS10-25000/121

SFS10-25000/110

SFS10-20000/121

SFS10-20000/110

SFS10-16000/121

SFS10-16000/110

SFS10-12500/121

SFS10-12500/110

SFS10-10000/121

SFS10-10000/110

Basic info Product Detail Supplier

Basic info

Brand	ROCKWILL
Model NO.	110kV Class oil-immersed transformer
Rated capacity	90000kVA
Primary voltage	121kV
Secondary voltage	6.3kV
Methods of regulation	On Load Voltage Regulating
Winding type	Three Winding
Series	SF/SFS Series

Product Detail

Overview

Premium Durability: Superior insulation and mechanical resilience allow for extended system life and overall system reliability.

reducing the frequency of outages. - Certified Quality: Oil-immersed power transformers are manufactured, tested and delivered in our accordance with all applicable standards (ANSI, IEEE) maintaining US compliance which simplifies service and retrofitting.

Energy Efficient: Designed to accommodate heavier base loading for extended periods of time with low energy loss and minimal partial discharge for optimized energy savings.

Technology parameters

1.working temperature：-30℃~40℃

2.Relative humidity: ≤90% (25℃)

3.No corrosive gas, no obvious dirt, etc.

4.Altitude: ≤1000m

Applications:

The 110kV power transformers that are primarily used in high-voltage transmission and substation applications to step up or step down voltage for efficient power distribution. Common applications include utility grid substations, large industrial plants, renewable energy integration (wind and solar farms), and heavy infrastructure projects.

If you need to know about more parameters , Please check the model selection manual.↓↓↓
