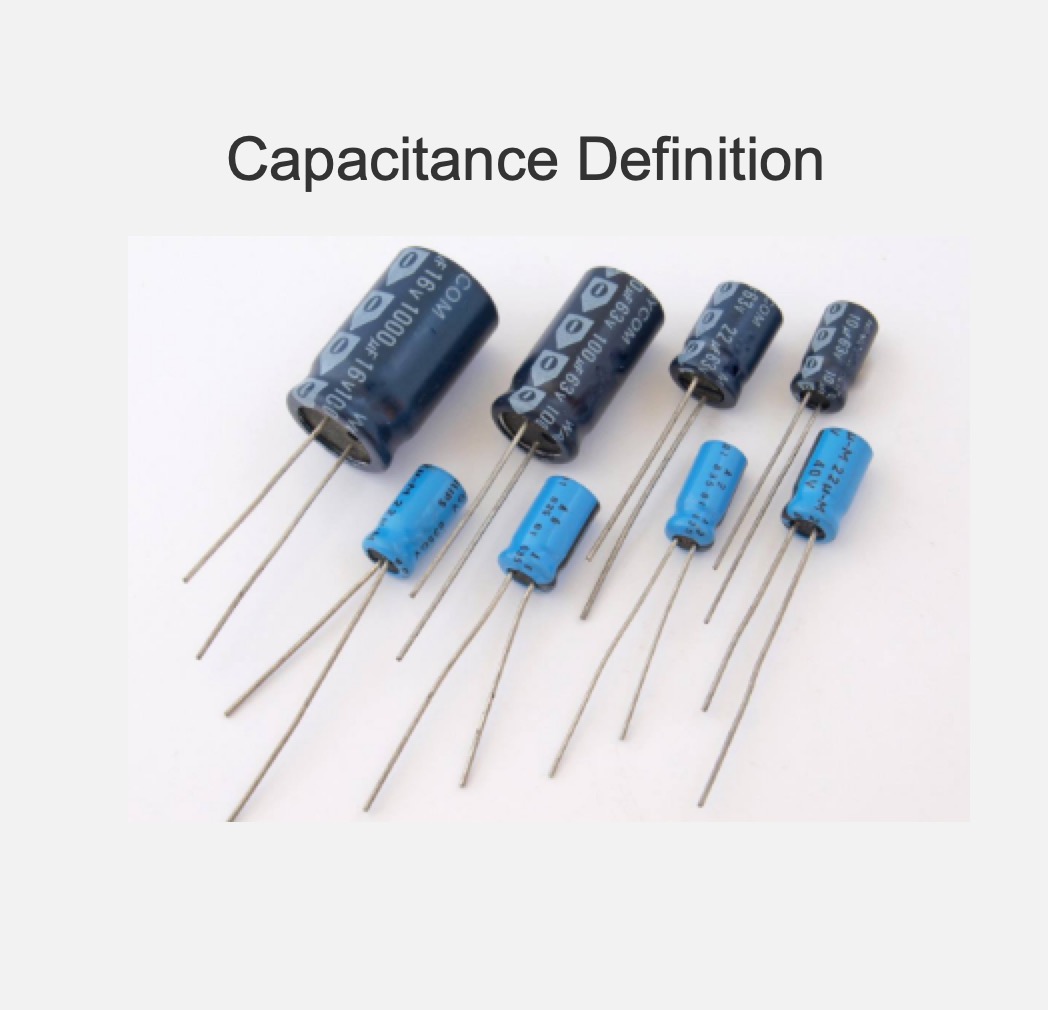

What is a Capacitance Meter?Capacitance Meter DefinitionA capacitance meter is a device used to measure the capacitance of discrete capacitors.Working PrincipleIt operates based on the proportional relationship between capacitance and a time constant.Measurement MethodCapacitance is measured using a 555 timer by calculating the time period of oscillations.Role of 555 TimerThe 555 timer acts as an astable multivibrator, with its frequency determined by the unknown capacitance (CX).Practical UsePr

Another important property in AC electronic circuits, besides resistance and inductance, is capacitance. Capacitance is measured in units. The unit of capacitance is the farad. While inductance is represented in a circuit by a coil, capacitance is represented by a capacitor. In its most basic form, the capacitor is constructed of two parallel plates separated by a nonconductor, called a dielectric. In an electrical circuit, a capacitor serves as a reservoir or storehouse for electricity.Capacita

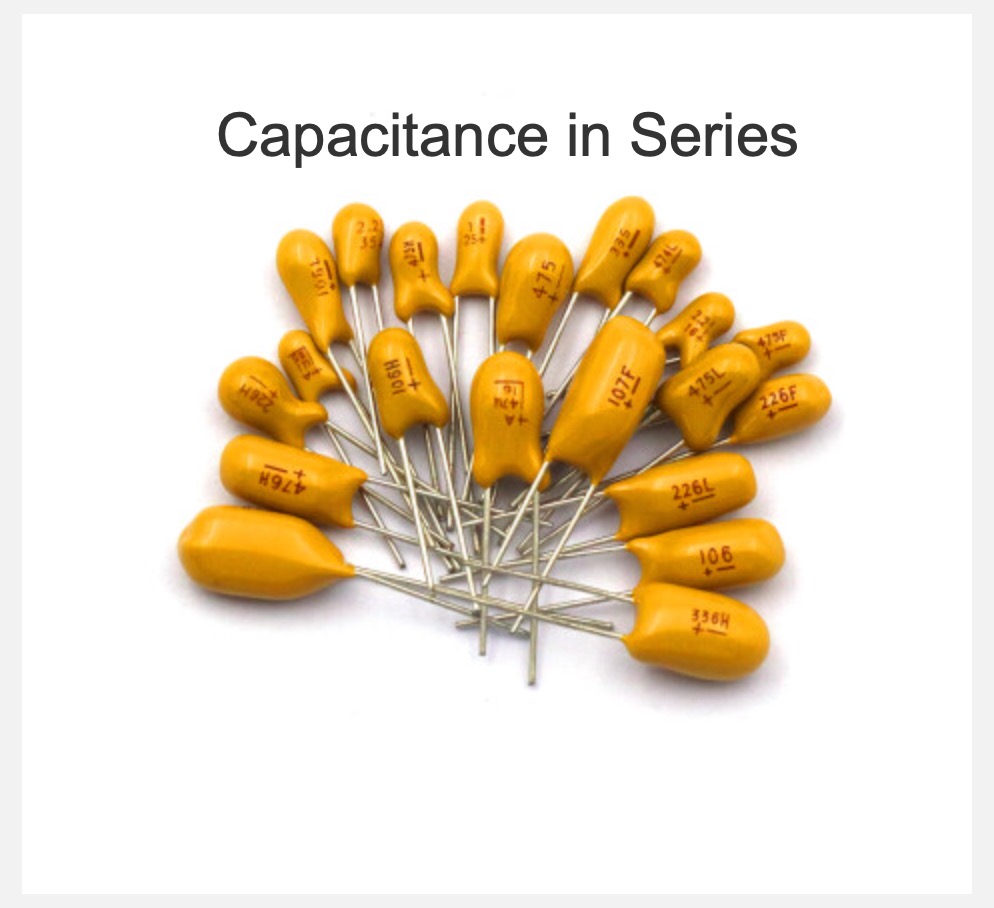

When working with individual capacitors in electronic circuits, it is essential to understand theirbehaviour and effects. For example, in a series arrangement, the positive plate of one capacitor is connected to the negative plate of the next capacitor in line. This unique connection impacts the circuit's total equivalent capacitance (C_total), causing the total capacitance to be smaller than the smallest individual capacitance (C) present in the series.A series circuit is characterized by its l

What is a Capacitor?Capacitors are one of three fundamental electronic components that form the foundation of a circuit – along with resistors and inductors. A capacitor in an electrical circuit behaves as a charge storage device. It holds the electric charge when we apply a voltage across it, and it gives up the stored charge to the circuit as when required.The most basic construction of a capacitor consists of two parallel conductors (usually metallic plates) separated by a dielectric material
