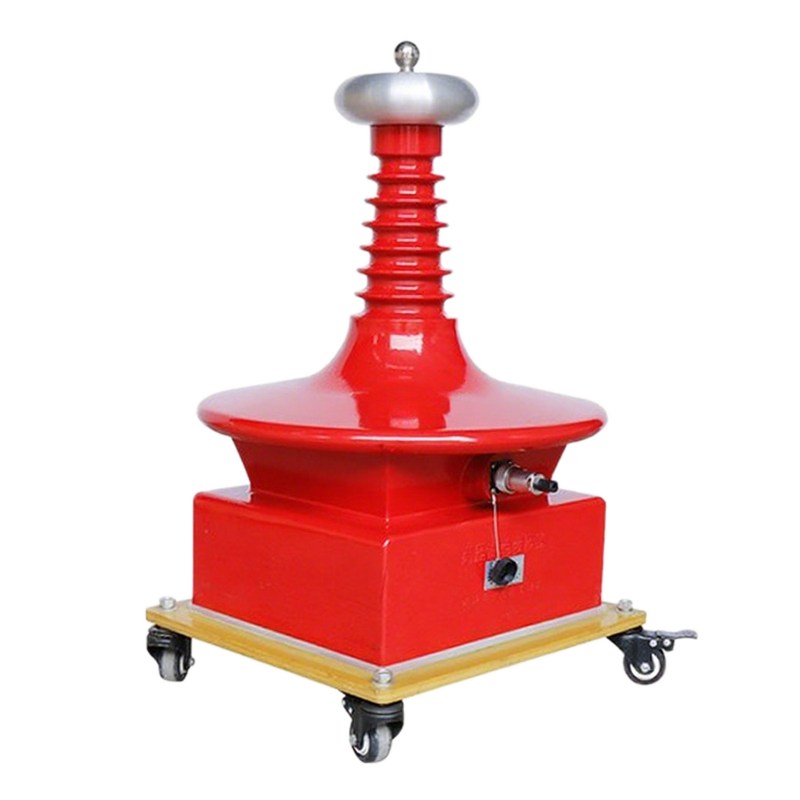

YDG Series test transformer

Overview

1. The insulation system uses our company's patented "armored shielding" structure and epoxy resin casting process, providing good mechanical strength and strong overload capacity. The product's partial discharge level is less than 3pC, leading the industry. At the same time, the "armored shielding" structure can effectively ensure the safety of equipment and personnel.
2. Applying ANSYS electric field simulation technology to reasonably design the external insulation structure, air gaps, and creep age distances, and optimize the electric field strength of various parts, resulting in a product with small size, light weight, and small space occupation. It is especially suitable for use with lightweight portable equipment and can also be used as a small po wer high voltage power supply.
3. Flame-retardant, fire and explosion-proof, environmentally friendly, low loss, economical operation, and maintenance-free.

Environmental Conditions for Used

Altitude: ≤ 2000m (products for altitudes above 2000m can be customized)
Ambient temperature: -40℃ ~+55℃
Relative humidity: ≤ 95%

Applications:

High voltage dry-type test transformers are widely used in the po wer industry for insulation testing in power plants, substations, power equipment manufacturing and installation; they can also be used in scientific r esearch, medical and environmental protection departments

If you need to know about more parameters, Please check the model selection manual.↓↓↓

Or you are welcome to contact us.↓↓↓
