Transformer comprehensive tester
Key attributes
| Brand | Wone Store |
| Model NO. | WDHG-A Transformer comprehensive tester |
| Small screen voltage method | 1000V |
| Voltage method | 2500V |
| Current method | 3000V/1000A |
| Series | WDHG-A |
Product descriptions from the supplier
Description
All test items can be completed without other auxiliary equipment.With micro fast printer, can directly print test results.Using the intelligent controller, simple to operate.
Feature
Supports detection of CT and PT
Meet the requirements of GB1207, GB1208 and other regulations.
No external auxiliary equipment is required, and all inspection items can be completed by a single machine.
Comes with a miniature fast printer, which can directly print the test results on site.
Adopt intelligent controller, easy to operate.
Large-screen LCD, graphical display interface.
Automatically give CT/PT (excitation) inflection point value according to regulations.
Automatically give 5% and 10% error curves.
It can save 3000 groups of test data, which will not be lost after power failure.
Support U disk dump data, can be read by standard PC, and generate WORD report.
Small and lightweight ≤22Kg, very useful for field testing.

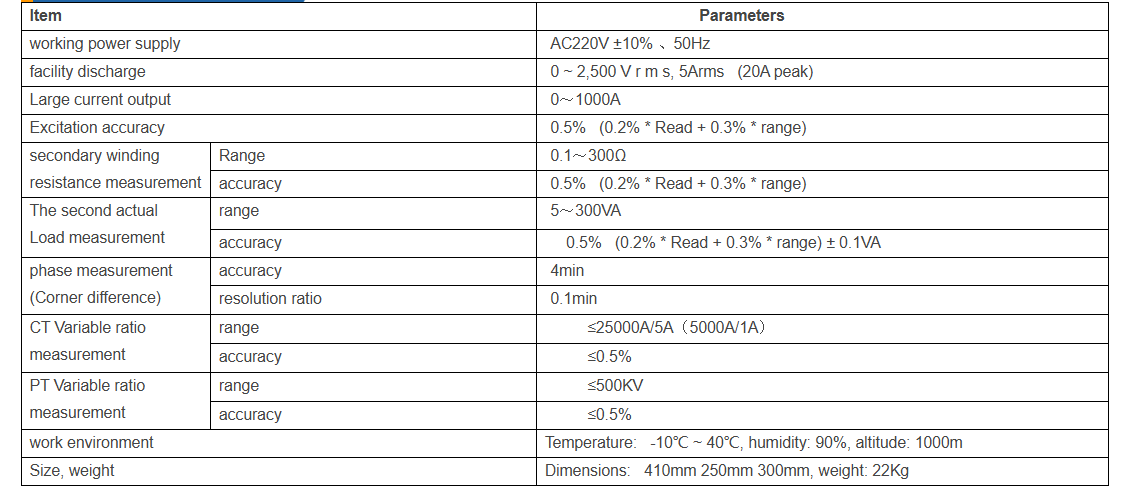

Specifications
