TYD Series Capacitor voltage transformer
Key attributes
| Brand | Rockwell |
| Model NO. | TYD Series Capacitor voltage transformer |
| Rated voltage | 550kV |
| Capacity | 5 nF |
| Series | TYD Series |
Product descriptions from the supplier
Overview
CVT oil-insulated capacitor voltage transformer with safe and stable ferroresonance damping circuit. The high quality, state of the art, automated manufacture of the capacitor elements provides consistent quality to ensure long term reliability and performance.
Features
● Designed and tested in accordance with latest IEC specification
● High accuracy and reliable design
● Reliable damping circuit reduces risk of damaged CVT
● Corrosion resistant up to ISO class C3
Benefits
● Easy installation and commissioning
● Maximum reliability and minimal maintenance
● Suitable for wide range of environmental conditions
● Good seismic performance

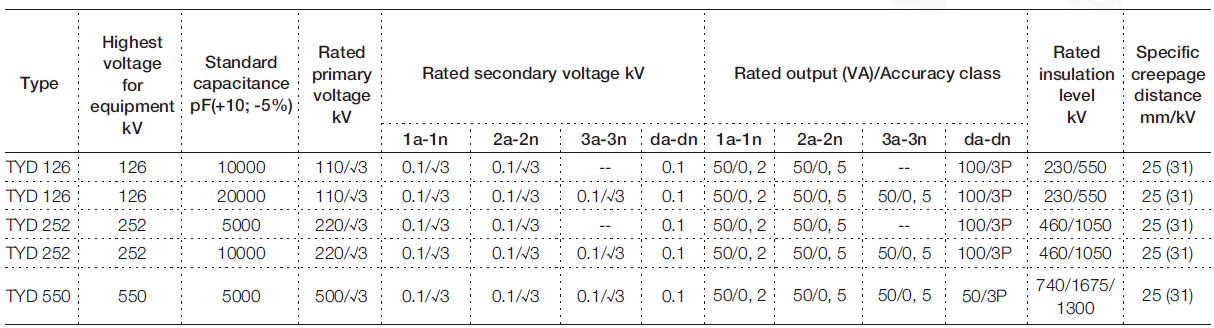

Technology parameters
