LB7 Series Reliable and safe outdoor instrument transformer

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Rockwell
Model NO.	LB7 Series Reliable and safe outdoor instrument transformer
Rated voltage	300kV
Series	LB7 Series

Product Detail

Overview

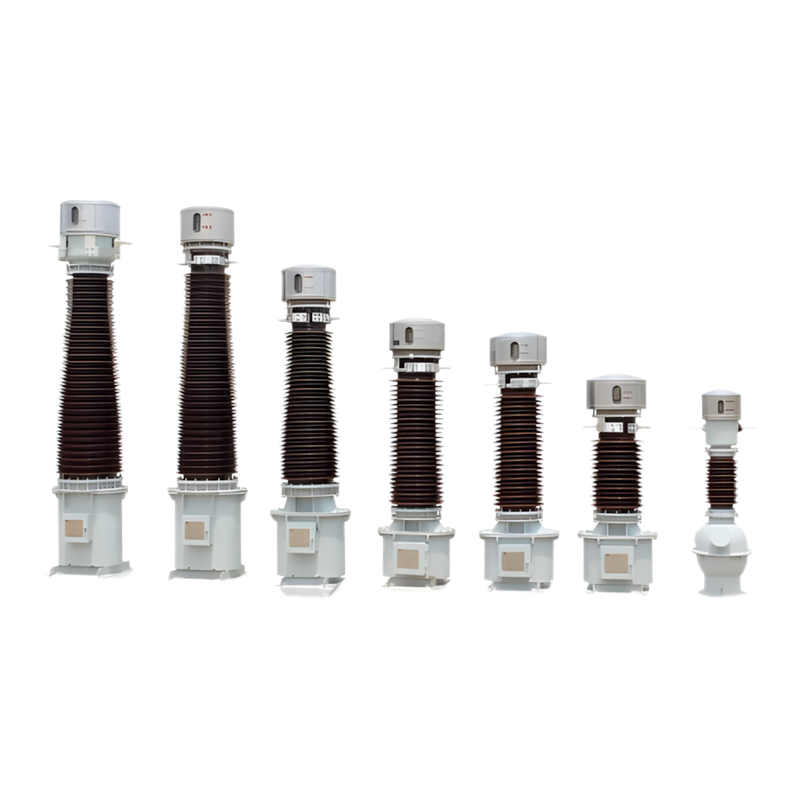

Current transformer type LB is based on hairpin design with oil-paper insulation and metallic expansion bellow, mainly for outdoor installations. It is a reliable product for metering and protection in high-voltage
networks.

Features

● Designed and tested in accordance with latest IEC specification
●Safe sealing slows the aging process and extends product life
●Corrosion resistance: stainless steel expansion bellows and oil
●tank coated with water-proof, mould-proof and salt-proof painting

Benefits

●Easy installation and commissioning
●Maximum reliability and minimal maintenance
●Suitable for wide range of environmental conditions
●Good seismic performance

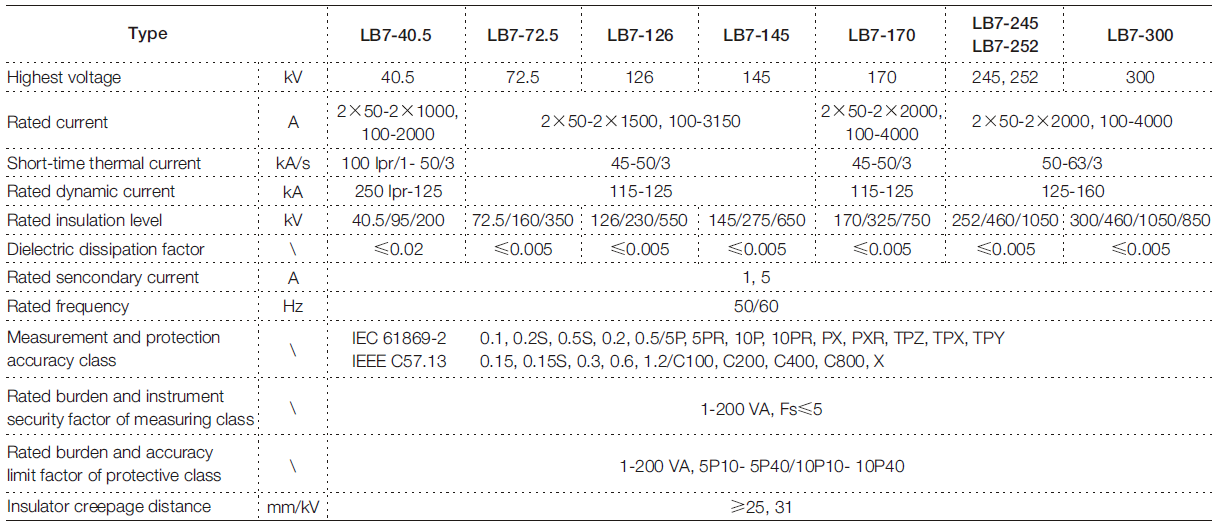

Technology parameters

Know your supplier

Rockwell

Wenzhou Rockwell Transformer Co., Ltd. It is a high - tech enterprise integrating R & D, production, sales, and service. It focuses on the manufacturing of power transformers and supporting equipment, and is committed to providing efficient, reliable, and energy - saving power transmission and distribution solutions for global customers. We can offer: •Distribution transformers and substations •Outdoor switchgears and breakers(recloser) •Switchgears and it’s components (GIS, RMU, VCB, SF6 CB) Market and Service: We always take customers as the orientation and provide customized services according to their requirements. Our products are exported to the Middle East, Africa, Northern Europe, South America, and many other countries and regions. Drive the future of electricity with technological innovation and become a leading global supplier of intelligent power equipment.

Main Categories

High Voltage Electrical Apparatus

Business Type

Design/Manufacture/Sales

Highest Annual Export (USD)

$100000000

Professional Experience

12 years

Workplace

60000m²
